Urea Sensor Failure Symptoms and How to Diagnose Them Quickly

When the SCR system in your diesel engine doesn't work right, the urea sensor is usually to blame. These small but important parts keep an eye on the quality and quantity of AdBlue. This makes sure that your heavy-duty equipment meets emission standards and keeps running at its best. Finding early signs of failure, like warning lights that flicker or sudden drops in power, can save you a lot of money on repairs and keep you from getting fined by the government. To make a quick evaluation, you need to know how to read signal patterns, how to do a physical check, and when to replace something instead of trying to fix it.

​

Understanding Urea Sensor Failure: Common Symptoms to Watch For

The Role of Urea Sensors in SCR Systems

To put in the right amount of diesel waste fluid, Selective Catalytic Reduction systems need exact measures. The urea sensor for quality and level checks the AdBlue concentration all the time, and the urea sensor for dose pressure makes sure that the right amount of fluid gets to the catalytic converter. Your engine control unit can't control emissions well if you don't give it exact numbers. This means that your fleet might not meet Euro VI or EPA guidelines.

Digital vs. Analog Sensor Technologies

These days, SCR devices can use either digital or analog sensing technologies, and each has its own troubleshooting features. Digital devices send data using methods like SENT (Single Edge Nibble Transmission), which makes the data more accurate and less affected by noise. Analog sensors send out voltage signals between 0.5V and 4.5V. These signals are easier to fix, but they are more likely to be affected by electrical noise. OEM makers usually choose digital versions as replacements for mass production because they are more reliable, while private repair shops usually choose analog versions because they are easier to install and cost less.

Primary Warning Signs You Cannot Ignore

The warning lights on your dashboard are your first line of defense. The fault warning lamp lights up along with certain diagnostic trouble codes. For example, P204B means there are problems in the circuit range, and P20EE means there are problems with the quality sensors. In addition to visual alerts, speed decline gives you real proof. When sensors stop working, the ECU can't control the right amount of AdBlue, which stops the SCR system from working. Your car may go into "limp mode," which means the engine has less power and can't do much. There are a lot more emissions, and the ECU memory stores a lot of DTCs. In safe mode, the system can stop injecting AdBlue completely to protect parts from damage, but this means it won't meet emissions standards.

Physical Deterioration Indicators

When you look closely, you can see crystals around the sensor holes. This is a clear sign that DEF is leaking or not being sealed properly. Corrosion on electrical connections makes it impossible for signals to be sent. Gold-plated leads are especially vulnerable to corrosion because they fight oxidation better than copper contacts. When low-quality AdBlue leaves behind mineral leftovers, white deposits build up on sensing elements, making measurements less accurate over time until they stop working completely.

Real-World Impact on Operations

Twelve excavators in a large group of building equipment all broke down at the same time. This was caused by contaminated AdBlue from a single batch. During regulatory checks, each unit sent out emissions warnings, which led to a total of $47,000 in fines and more than 200 hours of lost work time. The contamination could have been found early on through regular sensor readings, before it did a lot of damage. The risks for heavy truck drivers are similar. One logistics company said it lost $12,500 a week while three vehicles sat idle waiting for sensor replacements that could have been stocked through smart purchase planning.

​

Diagnosing Urea Sensor Failures Efficiently: Step-by-Step Approach

Initial Visual Assessment Protocol

Start the tests by checking the integrity of the hardware system. Make sure that the torque specs on the fixing threads are correct. Sensors that aren't tight enough let DEF leak out, while sensors that are too tight can crack the ceramic elements. Check the seals on the connectors for wetness, which can cause the signal to drop out sometimes before it stops working for good. Even though the internal sense chamber design cuts down on dead volume, systems still crystallize after being idle for a long time, especially in cold places where AdBlue freezes and then grows by 9%.

Signal Analysis Using Diagnostic Tools

You can connect scan tools made for a certain maker or universal OBD-II readers to get live data streams and saved fault codes. Watch the voltage outputs while the engine is running. Stable readings between 0.8V and 4.2V mean the analog function is working right, while random changes could mean that the connectors are corroding or the sensors are moving inside the engine. To read SENT protocols, digital sensors need software that works with them, and they show concentration amounts instead of raw voltage. When you can, compare the readings to those from known-good sensors. Keep in mind that a difference of no more than 2% is okay for quality purposes.

Root Cause Investigation Methods

According to figures from the business, about 40% of urea sensor failures are caused by contamination. Bad AdBlue with too many minerals in it leaves behind layers that keep sensing elements from coming into touch with fluid. Resistance tests can show if there are problems with the wiring. Continuity tests should show less than 0.5 ohms across data lines, and insulation resistance to chassis ground should be more than 10 megohms. Signal drift is a normal part of getting older sensors. It usually becomes visible after 100,000 to 150,000 kilometers, but this depends on the conditions of use and the quality of the AdBlue.

Maintenance Practices That Extend Longevity

Flushing DEF systems every three months keeps crystals from building up, which is especially important for equipment that is used infrequently. Changing temperatures quickly speeds up wear and tear, so parking cars in climate-controlled areas when possible lowers the heat stress on sensor parts. The accuracy of measurements is checked every 50,000 kilometers to make sure it stays within the required range. This stops any loss of accuracy before it completely stops working, which would cause problems with operations.

Replacement Decision Framework

When you do a cost study, you have to weigh the short-term costs against the long-term benefits. When compared to OEM options that cost $240, a failed sensor that costs $85 might seem like a good deal. However, failure within 30,000 kilometers doubles the total cost of ownership due to repeated work costs and vehicle downtime. When R&D engineers are looking at providers, they should ask for information on failure rates and guarantee terms. Reputable companies that offer 24-month coverage show that they are confident in the durability of their products. Setting up framework deals that promise the availability of parts is helpful for purchasing managers because it saves them money on expedited shipping fees when they need to get replacements quickly.

Comparison of Urea Sensor Types and Their Diagnostic Complexities

Technical Specifications That Matter

Specifications for accuracy have a direct effect on the gaps for pollution compliance. Premium sensors can measure with an accuracy of ±1.5% across their entire range, while cheaper ones can handle an accuracy of ±3%. This difference is very important when engines are running close to the limits set by regulators. For example, building equipment in cities needs more strict controls than farming equipment in the country. Industrial-grade sensors are different from basic types because they have temperature compensation hardware that keeps them accurate from -40°C to +85°C without having to be re-calibrated by hand.

OEM versus Aftermarket Considerations

Original equipment sensors are guaranteed to work with current ECU calibrations, which takes away any problems with integration. Brands like Bosch and Denso put a lot of money into assurance testing to make sure their goods can handle 15,000 to 20,000 hours of vibration, temperature cycling, and chemical exposure. Aftermarket options can save you thirty to fifty percent on costs, but technical help varies a lot from one seller to the next. It's important to have a warranty. Some resale companies meet OEM terms, while others only cover 12 months or 50,000 kilometers, which puts the risk on the buyers.

Diagnostic Accessibility Differences

Simple multimeters can be used to easily fix analog sensors, which makes them appealing to repair shops that don't have specialized tools. Technicians quickly find shorts, opens, or poor performance by measuring output voltage in a variety of situations. Digital sensors need compatible scan tools that can decode their own communication methods. This makes it harder for smaller businesses to do diagnostics. This difference in usability affects choices about what parts to buy in the aftermarket because parts departments have to weigh technical complexity against ease of use.

Total Cost of Ownership Analysis

The purchase price is only one part of the long-term costs. A high-quality sensor that costs $240 and lasts 150,000 kilometers is a better deal than a cheaper one that breaks after 60,000 kilometers, especially when you consider that work costs about $125 per repair cycle. The time it takes to handle warranty claims affects the continuity of operations. Suppliers who offer advance replacements during RMA procedures have less downtime than those who need the failed unit to be returned before sending replacements. Generator set makers who work with important infrastructure can't stand long power outages, so it's worth paying more for a responsive provider.

Best Practices for Maintaining Urea Sensors to Prevent Failures

Routine Cleaning Procedures

Sensor ports should be inspected and cleaned every three months using approved liquids that are compatible with DEF. Instead of rough methods that damage sensitive surfaces, use soft brushes and controlled compressed air pressure below 40 PSI. The sensing chamber's smooth internal flow patterns help keep urea from crystallizing when it sits still, but frequent cleaning is still necessary. As part of maintenance guidelines, system designers should write down cleaning methods so that all technician teams follow the same steps.

Environmental Control Strategies

The temperature of storage has a direct effect on how stable AdBlue is and how long sensors last. Above 30°C, DEF breaks down quickly, turning into ammonia compounds that speed up the wear and tear on sensors. Insulated DEF tanks with active cooling are helpful for mining operations in hot countries because they protect both the quality of the fluid and the accuracy of the measurements. The internal buffering structure is flexible enough to handle freezing expansion, but repeated freeze-thaw cycles put stress on sensor housings over time. Tank heaters should be used in backup power uses to keep store temperatures between 5°C and 15°C.

Calibration Schedule Recommendations

For industrial applications, verification of each urea sensor must be performed every 800 operating hours or six months, whichever comes first. To calibrate a urea sensor, compare its output against laboratory-tested DEF samples with known concentration values, then adjust ECU parameters to compensate for signal drift. During commissioning, R&D engineers developing new platforms should record baseline urea sensor readings to establish reference data for future comparisons. Quality assurance protocols must maintain urea sensor calibration histories, enabling trend analysis and predictive replacement scheduling before a urea sensor fails unexpectedly.

Building Effective Supplier Partnerships

Good providers can tell you apart from average ones by how much technical help they offer. When strange problems happen, having access to application engineers who know how your equipment is set up speeds up the fixing process. Maintenance teams can stay up to date on monitoring methods and sensor technologies with the help of training programs. Suppliers with on-site workshops build skills that cut down on Mean Time To Repair and improve the accuracy of part specifications. Technical consultation should be a part of bulk buying deals so that you get expert advice along with product deliveries.

​

Procuring Reliable Urea Sensors: A Guide for B2B Buyers

Critical Selection Criteria

Physical dimensions aren't the only things that make a system compatible; electrical properties and connection methods are also important. Make sure that the output specs of any replacement sensors match those of the original sensors. Putting a 0-5V sensor into a system that is calibrated for 0.5-4.5V can lead to measurement mistakes that need the ECU to be reprogrammed. Different thread standards exist for M10x1, M12x1.5, and other sizes, so exact measurements must be used to match. Supply chain managers should keep thorough databases that cross-reference equipment serial numbers with the right sensor part numbers. This will keep expensive buying mistakes from happening.

Evaluating Supplier Credentials

Certification needs vary by market. For example, companies in Europe need to comply with REACH and CE, while users in North America need to be listed under UL. ISO9001 certification shows that a company is committed to quality management, but IATF16949 approval is better for car uses. Instead of taking marketing claims at face value, you should ask for test results that show agreement with relevant standards. During market breakdowns, a supplier's ability to make things becomes very important. Partners who keep enough goods on hand can avoid production delays when demand suddenly rises.

Procurement Channel Advantages

Having direct ties with OEM makers has benefits beyond just getting better prices. Getting early access to product roadmaps helps you plan for changes in technology, which keeps you from having to deal with obsolescence problems. Custom engineering help lets you change a product to fit the needs of a specific application. This method is shown by Xi'an Qintai Automotive Emission Technology, which was founded in 2001 as a national high-tech company and has 58 idea patents and a wide range of R&D capabilities. We know what diesel engine makers need in terms of mass production because we are the number one OEM provider in China for Weichai Power, Yuchai Power, and Quanchai Power.

Quality Assurance Verification

In addition to basic utility testing, high-end urea sensor suppliers use statistical process control to keep an eye on key factors across all production batches. Ask for Cpk data that shows the process can be done; numbers higher than 1.33 mean that production control is strong. Before mass production starts, first-article inspection records make sure that test production meets the requirements. Systems that connect individual sensors to lots of raw materials and production dates allow for targeted returns if quality problems show up. This protects your brand's image from failures that affect a lot of products.

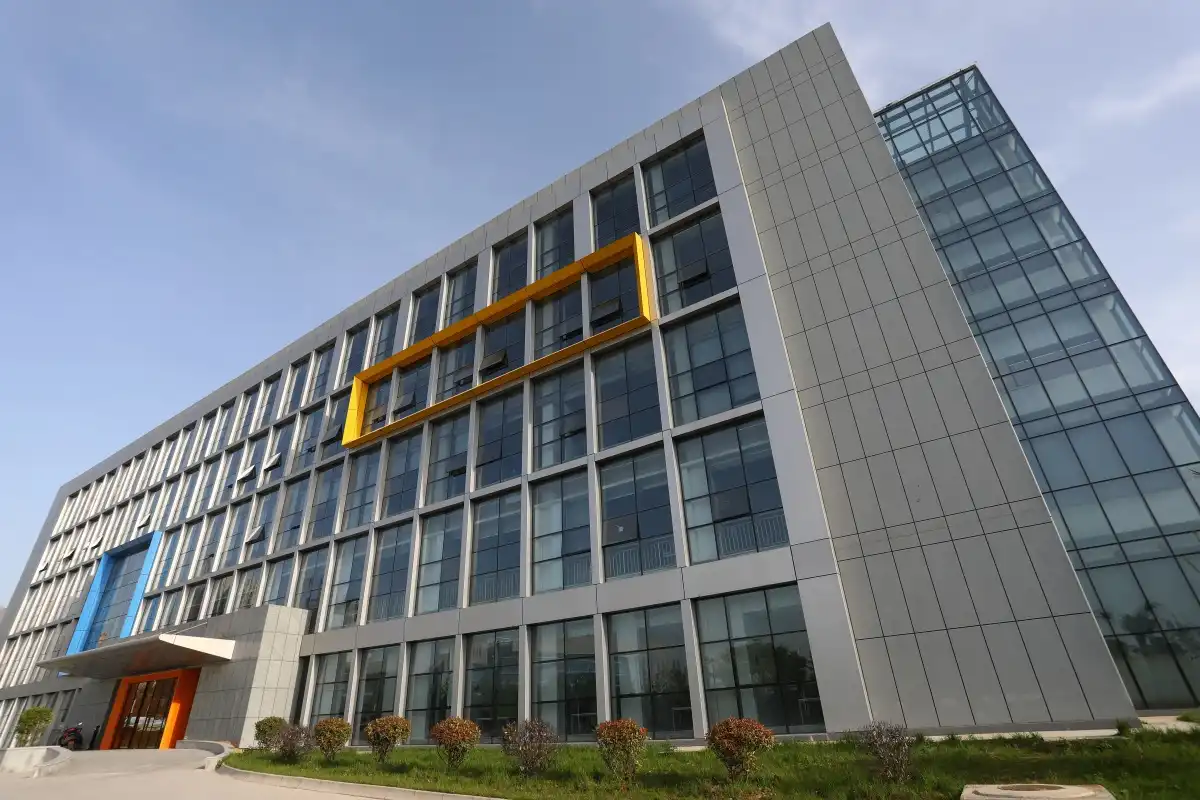

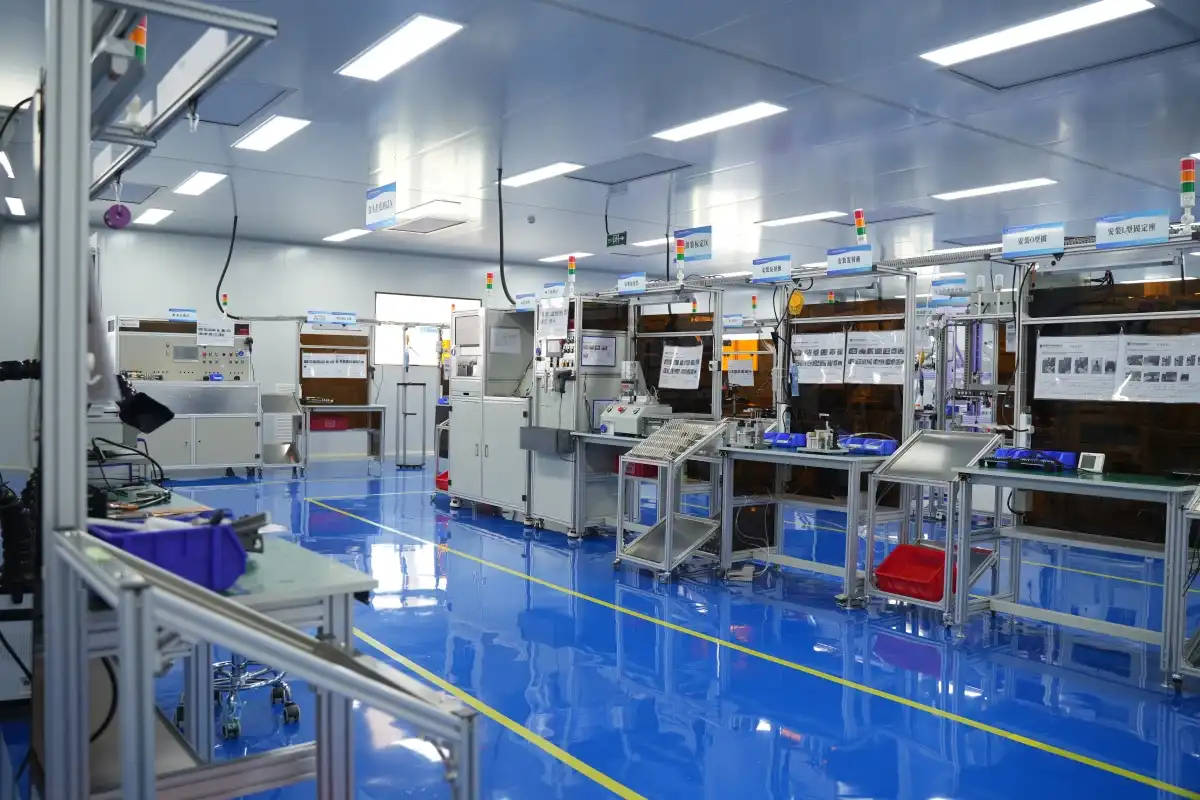

Our factories are certified by ISO9001, IATF16949, CMC, Ex, UL, CE, REACH, and RoHS, which means that the goods we make meet strict international standards. Independent R&D teams are always coming up with new ideas to make things work better and be more reliable, which helps them stay on top of technology. From connector setups to output signal forms, we allow for easy customization based on uses and customer needs.

​

SENSOR+TEST, June 9 – 11, 2026
We look forward to your visit，warmly welcome to our booth 1-634!
Get your free ticket online now:
https://www.sensor-test.de/service/ticket/?52790


Conclusion

By learning to spot the signs of urea sensor failure and using organized ways to find the problem, you can keep your business from having to deal with expensive downtime and fines from the government. Dashboard alerts, performance loss, and physical deterioration are all warning signs that need to be taken care of right away to stop failures that spread through SCR systems. Visual inspection and signal analysis are both important for fixing because they help find the root causes, which can be anything from contamination to old parts. When making strategic purchases, people weigh the need for reliability against the cost, knowing that higher-quality sensors usually offer better total ownership value by lasting longer and needing less upkeep. Regular cleaning, environmental controls, and checking the calibration are all examples of proactive care practices that greatly increase the life of sensors while keeping their measurement accuracy.

FAQ

How often should we inspect urea sensors in commercial fleets?

How often you inspect relies on how hard you're working and what the setting is like. Heavy-duty cars that put on a lot of miles each year should be inspected every three months, while seasonal farm equipment needs to be checked before the season starts. Generator sets that are always running need to be checked once a month, especially in dusty mine areas. Maintenance plans should include both time-based (every six months) and usage-based (every 50,000 kilometers) events to catch wear and tear no matter how the job cycle changes.

What risks do faulty sensors pose beyond emissions violations?

In addition to fines from the government, urea sensor problems lead to engine derating, which cuts power by 25–40% and makes it very hard to get work done. If you don't dose AdBlue correctly, it can damage catalytic converters, which need to be replaced, which can cost anywhere from $3,000 to $8,000. Failures that aren't caught let NOx pollution go over limits by 300%, which speeds up DPF clogging and raises the number of times it needs to be cleaned. These chain reactions make repairs more expensive and cause more downtime than just replacing sensors.

When does sensor replacement become urgent rather than routine?

When diagnostic codes show that a sensor has failed completely or when the engine goes into limp mode, which limits speed and power, the sensor needs to be replaced right away. If problems happen more than three times a week, they mean that a failure is about to happen and needs to be fixed right away. Damage like cracked housings or cut wires needs to be replaced right away to keep electrical systems from getting DEF on them. To avoid having to pay more for faster shipping in an emergency, procurement teams should keep important backups in stock.

Partner with Qintai for Superior SCR Performance

To get the most out of your diesel engine emissions systems, you need more than just high-quality parts. You also need a supplier partner who knows your practical problems and the regulatory pressures you are under. Qintai has been working with SCR aftertreatment sensors for more than 20 years and has helped OEM makers and system developers in over 60 countries around the world. Our urea sensor source can make both standard goods that meet EPA and Euro VI standards and custom-engineered solutions that meet the needs of specific applications. Email our technical team at info@qt-sensor.com to talk about your unique needs, get full product specifications, or get cheap quotes for large orders. We provide full diagnostic consultation services to help you find the best sensor setups for your equipment platforms. Our responsive after-sales support and global shipping processes ensure that your operations run smoothly.
