How Does a Pressure Transmitter Work in Industrial Process Control?

Pressure transmitters detect gas, liquid, and vapor pressure and transform it into a standardized electrical signal (4–20mA or 0–5V) for remote monitoring and automated control. They immediately interface to control systems, PLCs, and SCADA platforms in industrial process control, offering engineers real-time pipeline pressure, fluid flow, and equipment load data. Selecting the correct pressure transmitter influences system performance, regulatory compliance, and long-term operational dependability for diesel engine OEMs, SCR/DPF integrators, and generator set makers.

Understanding Pressure Transmitters: Principles and Functions

How Physical Pressure Becomes an Electrical Signal

When pressure is put on a measuring element, like a diaphragm made of stainless steel, it changes shape mechanically. One of three physical principles is used to measure that deformation: the capacitive effect (changes in the gap between plates), the piezoresistive effect (changes in resistance when strain is applied), or the piezoelectric effect (charge creation when force is applied). Signal conditioning devices then enhance and linearize the raw signal before sending it as a stable, readable value to the control system.

Transmitter Types: Gauge, Absolute, and Differential

Engineers choose from three main types based on the application. Gage pressure sensors are popular in hydraulic and pneumatic systems; they measure pressure in relation to the air pressure outside. Absolute pressure sensors work with a perfect vacuum, so they can be used to watch processes at high altitudes or in vacuums. Differential pressure sensors find the difference in pressure between two places. They are commonly used to check filters and figure out flow rates in industrial pipes and systems that treat exhaust.

Key Components Inside a Pressure Transmitter

There are three functioning parts in a pressure transmitter. The detecting element, which could be a diaphragm or a Bourdon tube, reacts to changes in pressure. The transmission layer changes the movement of the mechanical part into an electrical amount. The signal processing circuit, which has analog-to-digital converters and compensation algorithms, sends out a clean signal after fixing for temperature drift. In high-cycle applications, advanced thin-film transmitters use vacuum-sputtering technology to bond the strain gage at the molecular level. This stops adhesive creep and long-term signal drift.

Industrial Applications and Problem-Solving with Pressure Transmitters

Where Pressure Monitoring Makes a Real Difference

Pressure transmitters appear across a broad range of industries. In diesel engine aftertreatment systems, the exhaust backpressure across DPF filters and SCR catalyst beds is checked to make sure that the right amount of reagents are being injected and that the filters are being regenerated.

When making electricity, they keep an eye on the fuel supply pressure and the conditions of the cooling circuit. In the process of treating water and making chemicals, they keep pumps and vessels safe from overpressure. MarketsandMarkets says that the global market for pressure sensors was worth USD 10.5 billion in 2022 and will grow to USD 15.4 billion by 2027. This shows how much industries depend on measuring pressure.

Installation, Calibration, and Environmental Considerations

It's just as important to install something correctly as it is to have a good product. Measurement accuracy is affected by the orientation of the mounting, the type of process connection, and the routing of the impulse line. Calibration should be done when the system is first turned on and then on a regular basis, usually once a year for important process loops.

Engineers should ask for receivers that are certified by ATEX or IECEx when they need to work in tough settings with vibration, high or low temperatures, or explosive atmospheres. In Zone 1 or Zone 2 dangerous areas, explosion-proof pressure sensors that are approved by ATEX must be used with an intrinsically safe isolation barrier in order to meet all safety requirements.

Maintenance Practices That Extend Service Life

Regular maintenance cuts down on unplanned downtime and keeps the accuracy of the calibration. These are the basic maintenance steps that field teams should always do:

• Inspect process connections and seals annually to prevent slow leaks that skew readings and damage sensing diaphragms.
• Check zero and span calibration against a traceable reference standard; drift beyond ±0.5% of full scale typically warrants recalibration.
• Clean impulse lines on differential pressure transmitters every six months in slurry or viscous fluid service to prevent blockage errors.

When sensors fail too soon or measurements change, it can cause pollution compliance gaps in diesel engine aftertreatment uses. These steps can fix the problem effectively.

Comparing Pressure Transmitters for Informed Procurement Decisions

Transmitter vs. Sensor vs. Gauge: Clarifying the Terminology

A pressure gage gives a mechanical reading in one place but doesn't send any electricity anywhere else. A pressure monitor measures pressure and sends an electrical signal, but it doesn't have any signal shaping built in. A pressure transmitter has sensing, conditioning, and a standard output all in one housing. This makes it the best choice when signals need to be sent over long distances to a control room or read by a PLC. The standard style for transmitters is used for OEM diesel engine uses that need to integrate an ECU.

Key Technical Parameters for Procurement Teams

To choose the right device, you need to look at specifications that can be measured. The main things that purchasing and research and development teams look at when making their lists of approved suppliers are the accuracy class (usually given as ±0.1% to ±0.5% of full scale), the operating temperature range, the pressure range, the output protocol (4–20mA, HART, CAN bus), the ingress protection rating (IP67 or higher for mobile machinery), and the certification marks (CE, IATF16949, UL). When these factors are matched to the job cycle and environmental exposure of the product, warranty claims and early failure are avoided.

Wired vs. Wireless Transmitters: Which Fits Your System?

In safety-critical, high-accuracy loops, wired pressure transmitters are still the standard because they offer precise signal time and don't get messed up by radio waves. Wireless receivers that use the WirelessHART or ISA100 protocols work well for retrofit setups where the cost of wiring is too high. If you want to make sure that all of your OEM diesel engines and generator sets are the same, wired 4–20mA or CAN bus devices are the most sensible and cost-effective choice.

Procurement Guide: Buying Pressure Transmitters for Global Industrial Needs

Certifications and Compliance Documentation to Verify

Before placing a large order, procurement teams should make sure that the supplier has both ISO 9001 and IATF 16949 quality management certifications. IATF 16949 is the standard for OEM production quality in the automotive industry. For foreign markets, you need proof that your products meet CE branding, RoHS, and REACH requirements. For use in dangerous areas, make sure the ATEX or UL certification lists the right equipment group and temperature class.

Total Cost of Ownership vs. Unit Price

When you buy an entry-level emitter, it may seem like a good deal, but they often fail in the field more often and need to be calibrated less often, which drives up the overall cost over their lifetime. A more advanced device with a thin-film tracking element and an accuracy class of 0.25% might cost 20–30% more up front, but over the course of 10 years, it will have a much lower total cost of ownership. When buying in bulk from an OEM, the long-term failure rate is a more useful measure than just the unit price.

Custom Solutions and Long-Term Supply Partnerships

Off-the-shelf products that are standardized do not always match the exact connector type, pressure range, or output protocol needed for OEM production jobs. A source that can customize OEM/ODM parts, such as housings, signal ranges, and communication interfaces, cuts down on integration time and makes managing extra parts easier. Long-term supply agreements with a reputable manufacturer also keep prices stable and keep production going even as the product's lifecycle changes.

Conclusion

Procurement managers and R&D engineers can make confident, specification-driven buying choices when they know how a pressure transmitter works, from the physics of the sensing element to signal output and system integration. For an application to work, the right device must have the right pressure range, output protocol, environmental rating, and certifications.

It doesn't matter if the system is a China VI-compliant diesel aftertreatment system, a backup generator set, or an industrial exhaust gas treatment system. What matters is that the sensor standard matches the duty cycle. If it doesn't, there will be problems that need to be fixed over and over again.

FAQ

What is the difference between a pressure transmitter and a transducer?

A transducer converts one form of energy to another — in this case, pressure to an electrical quantity. A pressure transmitter includes the transducer plus signal conditioning and outputs a standardized signal (such as 4–20mA) ready for control systems. Transmitters are the correct choice for industrial process control loops.

How often should a pressure transmitter be calibrated?

For most industrial applications, annual calibration is the standard interval. In safety-critical or emission compliance loops — such as DPF differential pressure monitoring on China VI or Euro VI engines — more frequent checks every six months are advisable, especially in high-vibration environments.

Are wireless pressure transmitters as accurate as wired models?

Wireless transmitters can achieve comparable accuracy in static or slow-changing pressure measurements. However, for fast-response control loops or safety shutdown systems, wired transmitters are preferred because they provide continuous, real-time signal transmission without latency or communication drop risk.

What certifications should I require from a pressure transmitter supplier?

For automotive OEM and industrial procurement, require ISO 9001, IATF 16949, CE, and RoHS at minimum. For hazardous area applications, add ATEX or UL explosion-proof certification.

Partner with Qintai for Pressure Transmitter Solutions That Meet Your Standards

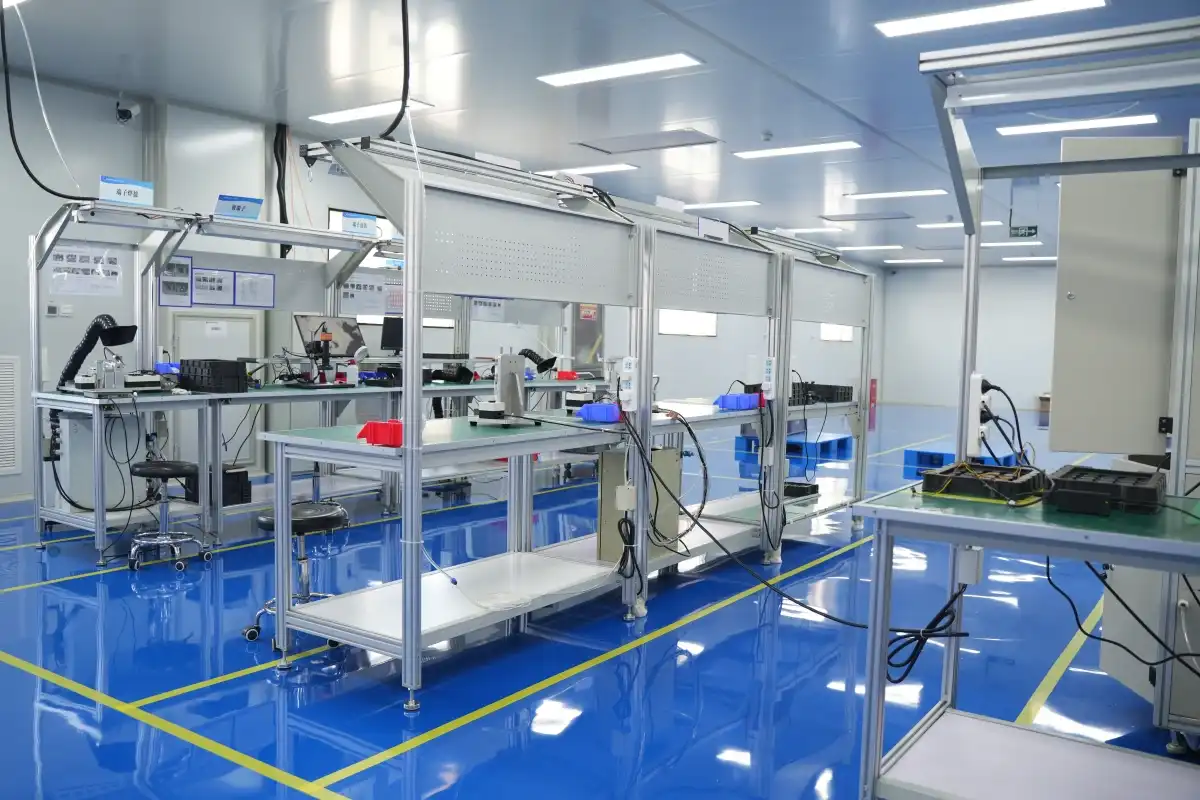

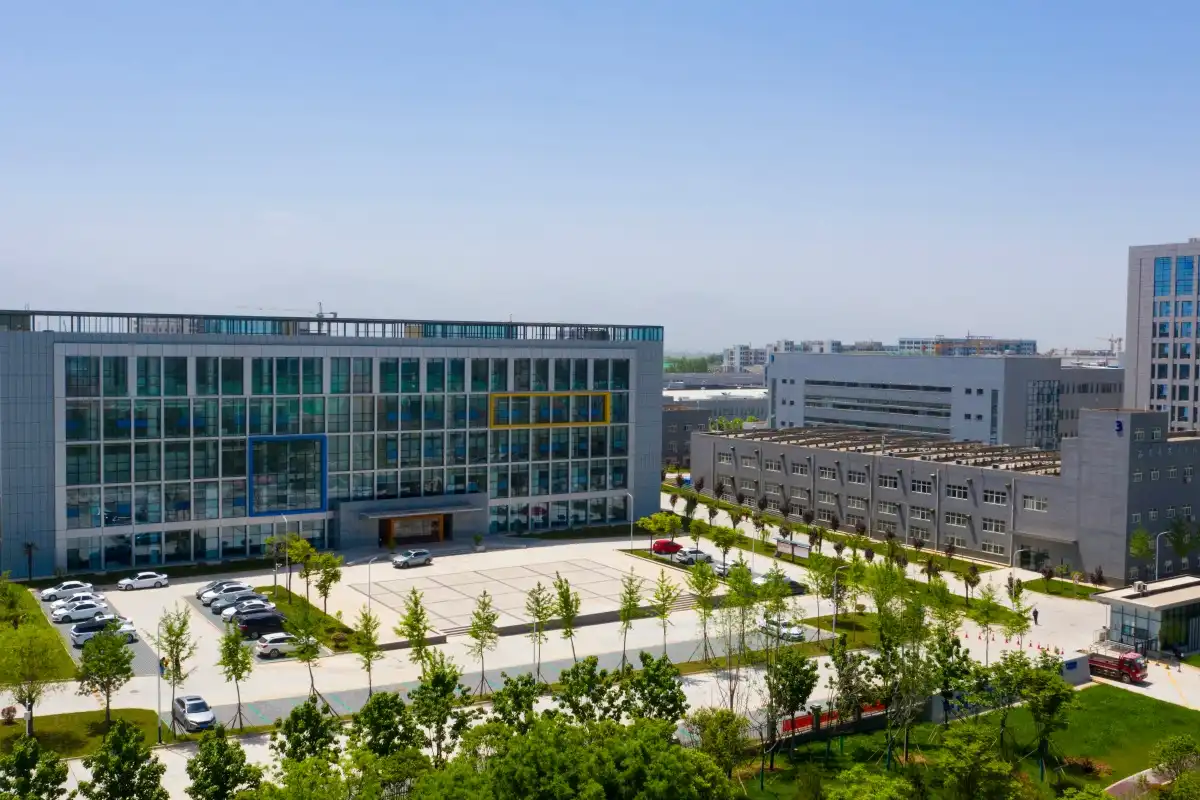

Since 2001, Xi'an Qintai has been supplying OEM customers in over 60 countries with pressure transmitters. They are a verified manufacturer with ISO 9001, IATF 16949, CE, ATEX, UL, and REACH certifications. China's Weichai Power, Yuchai Power, and Quanchai Power buy most of their products from Qintai. From concept to mass production, Qintai can do full OEM/ODM customization. Get in touch with our technical team to get product specs, certification paperwork, or a quote on buying something: Email: info@qt-sensor.com Website: qt-sensor.com.

References

1. MarketsandMarkets. Pressure Sensor Market — Global Forecast to 2027. 2022.

2. ISA (International Society of Automation). ISA-5.1: Instrumentation Symbols and Identification. 2009.

3. ANSI/ISA-51.1. Process Instrumentation Terminology. American National Standards Institute, 1979 (reaffirmed 2012).

4. IEC 60770-1. Transmitters for Use in Industrial-Process Control Systems — Part 1: Methods for Performance Evaluation. International Electrotechnical Commission, 2010.

5. European Commission. ATEX Directive 2014/34/EU: Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres. Official Journal of the European Union, 2014.

6. Boyes, Walt. Instrumentation Reference Book, 4th ed. Butterworth-Heinemann, 2010.
