How to test a nox sensor

Testing a Nox sensor involves using diagnostic scan tools to read fault codes and real-time data from the Engine Control Unit (ECU), followed by visual inspection of wiring and connectors for damage. Professionals typically measure voltage output using a multimeter while the engine operates under various load conditions, comparing readings against manufacturer specifications. Advanced testing may include gas simulation to verify sensor response accuracy. Regular testing helps maintain emission compliance, prevents unnecessary replacements, and ensures the SCR system operates efficiently, protecting your investment in emission control technology.

Understanding the Nox sensor and Its Function

Diesel Nox sensor serve as the eyes of cutting edge emanation control frameworks, recognizing hurtful poisons some time recently they exit the debilitate pipe. These modern gadgets persistently degree debilitate gas NOx levels and transmit information to the Motor Control Unit or SCR control module, empowering real-time alterations to urea infusion rates. The sensor's center reason inside emanations control systems expands past straightforward detection—it effectively takes part in a input circle that optimizes catalyst effectiveness and confirms emanation diminishment performance.

Core Working Principles and Technology

Most cutting edge Nox sensor utilize zirconia ceramic cell innovation combined with electrochemical discovery strategies. The detecting component works at hoisted temperatures, kept up by an coordinates radiator component that guarantees reliable execution over changing surrounding conditions. When deplete gasses pass over the sensor's ceramic surfaces, chemical responses create quantifiable electrical signals corresponding to NOx concentration. This flag conditioning circuit forms crude information some time recently transmission to the ECU through advanced communication conventions, regularly by means of CAN transport systems in modern frameworks.

A few more seasoned sensor models yield analog voltage or current signals, in spite of the fact that advanced communication has ended up the industry standard due to prevalent clamor resistance and demonstrative capability. The fundamental components of a nitrogen oxide sensor incorporate the zirconia ceramic detecting component, radiator component, flag conditioning circuit, coordinates control module for ECU interface, and connector with wiring saddle. These components work together to provide exact estimations extending from zero to a few thousand parts per million of nitrogen oxides. The sensor too transmits temperature information and demonstrative status, permitting the ECM to recognize between genuine outflow occasions and sensor malfunctions.

Differentiating Nox sensors from Oxygen Sensors

While both sensor sorts screen deplete composition, their capacities contrast significantly. Oxygen sensors basically degree leftover oxygen levels to optimize combustion air-fuel proportions, empowering exact fuel infusion control. Nox sensor, alternately, center particularly on NOx species coming about from high-temperature combustion. This qualification things since oxygen sensors cannot give the information essential for SCR framework control. Present day diesel vehicles regularly consolidate both sensor sorts at numerous deplete framework locations—oxygen sensors close the turbocharger and catalytic converter, with Nox sensors situated upstream and downstream of the SCR catalyst.

The upstream sensor recognizes nitrogen oxide emanations specifically from the motor, setting up standard estimations that decide starting urea dosing prerequisites. The downstream sensor measures post-catalyst emanations, confirming SCR framework viability and empowering closed-loop control. This dual-sensor arrangement has ended up standard on vehicles assembly Euro VI and EPA 2010+ emanation measures, reflecting the basic significance of exact NOx checking in accomplishing administrative compliance.

Common Symptoms of Sensor Failure

Understanding disappointment side effects prepares specialized experts to recognize issues early, anticipating exorbitant downtime or compliance disappointments. When a nitrogen oxide sensor glitches, the powertrain control module ordinarily lights up the check motor light and stores demonstrative inconvenience codes. Particular codes frequently show "circuit tall," "circuit open," or "improbable flag," with assignments clarifying whether the gulf or outlet sensor requires consideration.

Past caution lights, operational side effects incorporate expanded diesel deplete liquid utilization, decreased motor control yield, powerless increasing speed, and destitute fuel economy. A few vehicles enter a limp mode that limits execution to ensure the emanation framework from encourage damage. Physical indications unmistakable amid assessment incorporate eroded connectors, harmed wiring tackles, carbon buildup on the sensor test, and dampness interruption into the sensor module.

Nox sensors are greatly delicate to dampness defilement, which can trigger untrue readings and untimely disappointment. This affectability underscores the significance of legitimate dealing with amid establishment and the require to keep up defensive bundling until establishment. Standard testing interims offer assistance distinguish corruption some time recently total disappointment happens, keeping up framework unwavering quality and dodging unforeseen repair costs in requesting mechanical applications.

Step-by-Step Guide on How to Test a Nox sensor

Comprehensive testing procedures ensure accurate diagnosis and prevent unnecessary component replacement. Proper testing methodology distinguishes between sensor faults, wiring problems, and ECU communication issues, saving time and reducing maintenance costs. The following systematic approach provides technical professionals with actionable steps for effective sensor evaluation.

Preparation and Safety Protocols

Before starting demonstrative work, accumulate the essential testing gear counting a professional-grade OBD-II symptomatic scanner competent of perusing manufacturer-specific codes, a computerized multimeter with millivolt exactness, security glasses, defensive gloves, and entering grease for seized sensors. Guarantee the vehicle or hardware is stopped on level ground with the stopping brake locked in and wheel chocks in put. Permit the deplete framework to cool adequately to anticipate burns, as sensors regularly work at temperatures surpassing 600 degrees Celsius amid ordinary function. Review the gear manufacturer's benefit manual to distinguish sensor areas, connector stick setups, and detail values.

Overwhelming trucks regularly position sensors along the deplete downpipe between the turbocharger and SCR catalyst, with a moment sensor downstream of the catalyst. Development apparatus and generator sets may have distinctive setups based on motor format and aftertreatment framework plan. Detach the vehicle battery negative terminal if electrical work past filtering will be performed, anticipating inadvertent shorts and ensuring touchy electronic components.

Visual Inspection and Physical Examination

Begin testing with a intensive visual examination of sensor establishment and wiring keenness. Check for physical harm to the sensor body, counting splits, over the top carbon stores, or signs of deplete spills close the mounting boss. Debilitate spills can present wrong discuss into the estimation chamber, causing wrong readings that trigger blame codes. Assess the wiring saddle from sensor to ECU, looking for chafing against outline components, warm harm from vicinity to debilitate channels, rat harm, or erosion at association points.

Examine the electrical connector for bowed pins, erosion, dampness interruption, or free maintenance clips. Numerous sensor disappointments result from connector issues or maybe than real detecting component absconds. Clean connectors utilizing electrical contact cleaner and confirm legitimate stick engagement. Check that the sensor mounting torque meets specifications—excessive snugness can break the ceramic component, whereas deficiently torque permits debilitate spills. Report any physical discoveries some time recently continuing to electrical testing, as obvious harm frequently clarifies demonstrative codes and guides repair decisions.

Electrical Measurements and Diagnostic Scanning

Connect the diagnostic scanner to the vehicle's OBD-II port and retrieve stored fault codes related to Nox sensor. Record all codes and freeze frame data, which captures engine operating conditions when the fault occurred. Common codes include P2200 series (Nox sensor circuit), P2202 (Nox sensor circuit range/performance), and manufacturer-specific codes indicating implausible values or communication errors. Clear the codes after recording and perform a test drive or engine run cycle to verify whether codes return, distinguishing intermittent from permanent faults.

Access live information streams through the scanner to watch real-time sensor yield. With the motor at working temperature, nitrogen oxide readings ought to react to motor stack changes—increasing amid speeding up and diminishing at sit out of gear. Compare upstream and downstream sensor readings; the downstream sensor ought to appear altogether lower NOx values than upstream if the SCR framework capacities appropriately. Unforeseen designs, such as sensors perusing indistinguishable values or appearing no reaction to stack changes, show sensor or catalyst issues requiring assist investigation.

Using a computerized multimeter, degree sensor radiator circuit resistance and supply voltage concurring to producer details. Commonplace radiator circuits work at 12-14 volts and draw a few amperes of current. Degree resistance between sensor flag wires and ground, comparing readings to detail ranges that shift by producer but regularly drop between 10-50 ohms at room temperature. Voltage yield estimations ought to happen whereas the sensor works at working temperature, with readings fluctuating in reaction to deplete gas composition. Steady or missing voltage signals propose sensor component failure.

Advanced Testing Techniques and Gas Simulation

Advanced demonstrative offices may utilize gas recreation gear that presents known NOx concentrations into the deplete stream or straightforwardly to the sensor test. This testing strategy confirms sensor exactness and reaction time, giving conclusive prove of sensor wellbeing. Recreation testing requires specialized gear and prepared specialists but offers the most noteworthy symptomatic certainty, especially for irregular deficiencies that do not show up amid standard testing.

Some symptomatic instruments can command the ECU to shift urea infusion rates whereas checking sensor reaction, successfully making a controlled NOx variety for sensor assessment. This utilitarian testing affirms not as it were sensor operation but moreover approves the total emanation control circle counting injector work and catalyst proficiency. Such comprehensive testing demonstrates profitable when investigating complex outflow framework issues where different components interact.

Troubleshooting and Decision Guidelines

Analysis of test comes about guides repair choices. If visual review uncovers harmed wiring or eroded connectors, repair these issues some time recently supplanting the sensor, as association issues habitually mirror sensor disappointments. When symptomatic codes show circuit issues but electrical estimations meet details, suspect ECU communication issues or computer program calibration issues requiring dealer-level diagnostics. Sensors showing inaccurate readings in spite of appropriate electrical values likely have fizzled detecting components requiring replacement.

Recalibration strategies exist for a few sensor sorts, in spite of the fact that numerous cutting edge sensors need field calibration capability. Counsel producer documentation to decide whether calibration alternatives apply to your particular sensor show. When substitution gets to be fundamental, continuously compare the modern sensor against the fizzled unit to affirm redress portion determination. Indeed minor contrasts in connector setup or string pitch can avoid appropriate establishment. Evacuate defensive bundling as it were instantly some time recently establishment, as dampness presentation harms the delicate ceramic components indeed amid brief capacity periods.

Comparing Nox sensors: OEM Versus Aftermarket and Leading Brands

Procurement professionals face critical choices when sourcing a NOx sensor for fleet maintenance, aftertreatment system integration, or equipment manufacturing. These decisions balance initial cost against long-term reliability, regulatory compliance, and warranty coverage. Understanding the landscape of sensor suppliers and product categories enables informed purchasing that aligns with operational requirements and budget constraints.

Leading Manufacturers and Product Characteristics

Major automotive sensor manufacturers dominate the nitrogen oxide sensor market, each bringing distinct engineering approaches and quality reputations. Bosch, a German engineering leader, offers sensors recognized for exceptional accuracy and durability across diverse operating conditions. Their products feature advanced signal processing algorithms that minimize false readings and extend service life, typically backed by comprehensive warranty coverage. Continental, another European manufacturer, produces sensors emphasizing rapid response times and robust construction suitable for heavy-duty applications including construction equipment and commercial vehicles.

Japanese manufacturer Denso brings decades of automotive sensor experience to the NOx market, with products known for precise manufacturing tolerances and consistent performance. Their sensors often serve as original equipment in Asian-manufactured engines and vehicles, providing proven compatibility with these platforms. NGK Spark Plug Company, specializing in ceramic technologies, leverages their materials expertise to produce sensors with excellent thermal stability and resistance to contamination. Each manufacturer maintains different product lines targeting specific applications—from light-duty vehicles to industrial stationary engines—with corresponding variations in pricing, availability, and technical support.

When selecting between brands, procurement teams should evaluate certification compliance with relevant emission standards, examining whether products carry EPA approval, CARB executive orders, or European type approval documentation. Sensors lacking proper certification may function adequately during testing but create legal liability if installed in regulated applications. Technical datasheets reveal important performance specifications including measurement range, accuracy tolerance, response time, and operating temperature limits that must match application requirements.

OEM Versus Aftermarket Product Considerations

Original Equipment Manufacturer sensors represent the components specified by engine or vehicle manufacturers during initial production. These sensors guarantee compatibility and typically carry the most comprehensive warranty coverage, often integrated with broader powertrain warranties. OEM sensors command premium pricing, reflecting development costs, certification expenses, and distribution markups through dealer networks. Their availability may be limited to authorized service centers, potentially creating supply chain challenges for independent repair facilities or operators in remote locations.

Aftermarket sensors encompass a broad category from premium replacement parts manufactured to OEM specifications through economy options with reduced cost and potentially shorter service life. High-quality aftermarket manufacturers subject their products to extensive testing and validation, seeking to match OEM performance at lower price points. These products typically carry standalone warranties separate from vehicle coverage, requiring careful evaluation of warranty terms, claim processes, and manufacturer reputation. Some aftermarket sensors achieve certifications equivalent to OEM parts, providing regulatory compliance assurance at reduced cost.

Economy aftermarket options present attractive pricing for cost-sensitive applications but require careful evaluation. Some budget sensors use less expensive materials or simplified designs that may compromise measurement accuracy, response time, or durability in harsh operating environments. Technical professionals should scrutinize product specifications, customer reviews, and failure rate data when considering economy alternatives. The total cost of ownership calculation must include potential premature replacement expenses and the operational impact of sensor failures, which may exceed the initial savings from lower purchase prices.

Vehicle Compatibility and Application Matching

Nox sensors are not universal components—specific designs match particular engine families, emission system configurations, and ECU communication protocols. Cross-reference part numbers against vehicle or engine identification to ensure compatibility before ordering. Critical matching criteria include electrical connector configuration, thread size and pitch, probe length, and communication protocol version. Installing an incompatible sensor may result in mechanical fit issues, electrical connection problems, or communication errors that prevent proper system operation.

Some sensor models serve multiple applications through similar designs with minor variations, while others remain application-specific. Manufacturers publish compatibility lists and cross-reference guides to simplify part selection. When sourcing sensors for diverse fleets with multiple engine types, procurement strategies might emphasize suppliers offering broad product ranges covering varied applications, potentially consolidating vendor relationships and simplifying inventory management. Conversely, specialized operations with standardized equipment may benefit from bulk purchasing of specific part numbers, leveraging volume discounts and ensuring consistent parts availability.

Conclusion

Testing the Nox sensor requires a systematic methodology combining diagnostic scanning, visual inspection, electrical measurement, and functional evaluation. Understanding sensor operation principles, failure symptoms, and testing procedures enables technical professionals to maintain emission system reliability and regulatory compliance. Procurement decisions balancing OEM versus aftermarket options, manufacturer selection, and cost considerations significantly impact total ownership expenses and operational effectiveness.

Strategic relationships with qualified sensor suppliers provide access to technical expertise, quality products, and responsive support essential for modern diesel emission management. As emission regulations continue evolving globally, maintaining robust testing capabilities and procurement strategies ensures your operations remain compliant while optimizing maintenance costs and equipment reliability across diverse applications.

SENSOR+TEST, June 9 – 11, 2026
We look forward to your visit!
Get your free ticket online now:
https://www.sensor-test.de/service/ticket/?52790


FAQ

What are the typical testing intervals for Nox sensor?

Testing frequency should align with equipment utilization and regulatory requirements. Commercial vehicles subject to annual emission inspections benefit from sensor verification every 6-12 months or before scheduled compliance testing. Heavy-duty equipment in construction and agricultural applications should undergo diagnostic scanning every 500-1,000 operating hours, with comprehensive sensor testing at major service intervals. Generator sets in critical applications warrant quarterly testing to ensure reliability during demand periods.

How long do Nox sensor typically last before replacement becomes necessary?

Service life varies substantially based on operating conditions, with heavy-duty diesel applications typically achieving 150,000-300,000 miles or 5,000-10,000 operating hours. Premium sensors from leading manufacturers often exceed these ranges when properly maintained, while economy alternatives may fall short.

Can Nox sensor from different manufacturers be used interchangeably?

Interchangeability depends on mechanical compatibility, electrical specifications, and communication protocol matching. Physical dimensions including thread size, probe length, and connector configuration must align exactly with the installation location and wiring harness. Electrical characteristics including voltage ranges, resistance values, and heater power requirements must match ECU specifications to prevent damage or malfunction.

What impact do faulty Nox sensor have on engine performance and durability?

Malfunctioning sensors prevent proper SCR system control, resulting in either excessive or insufficient urea injection. Insufficient injection allows elevated NOx emissions, violating regulatory limits and potentially triggering enforcement actions. Excessive injection wastes diesel exhaust fluid, increases operating costs, and can damage the catalyst through urea crystallization. Modern engines often enter reduced power modes when sensor faults occur, protecting emission systems but limiting operational capability.

Are there specific compatibility requirements for sensors used with different diesel engine brands?

Diesel engine manufacturers including Cummins, Detroit Diesel, Caterpillar, and others specify particular sensor designs for their emission systems. While sensor operating principles remain consistent across brands, mechanical interfaces, electrical specifications, and communication protocols vary. Using sensors not validated for specific engine families risks compatibility problems, warranty complications, and potential regulatory non-compliance.

Partner with Qintai for Reliable Nox sensor Solutions

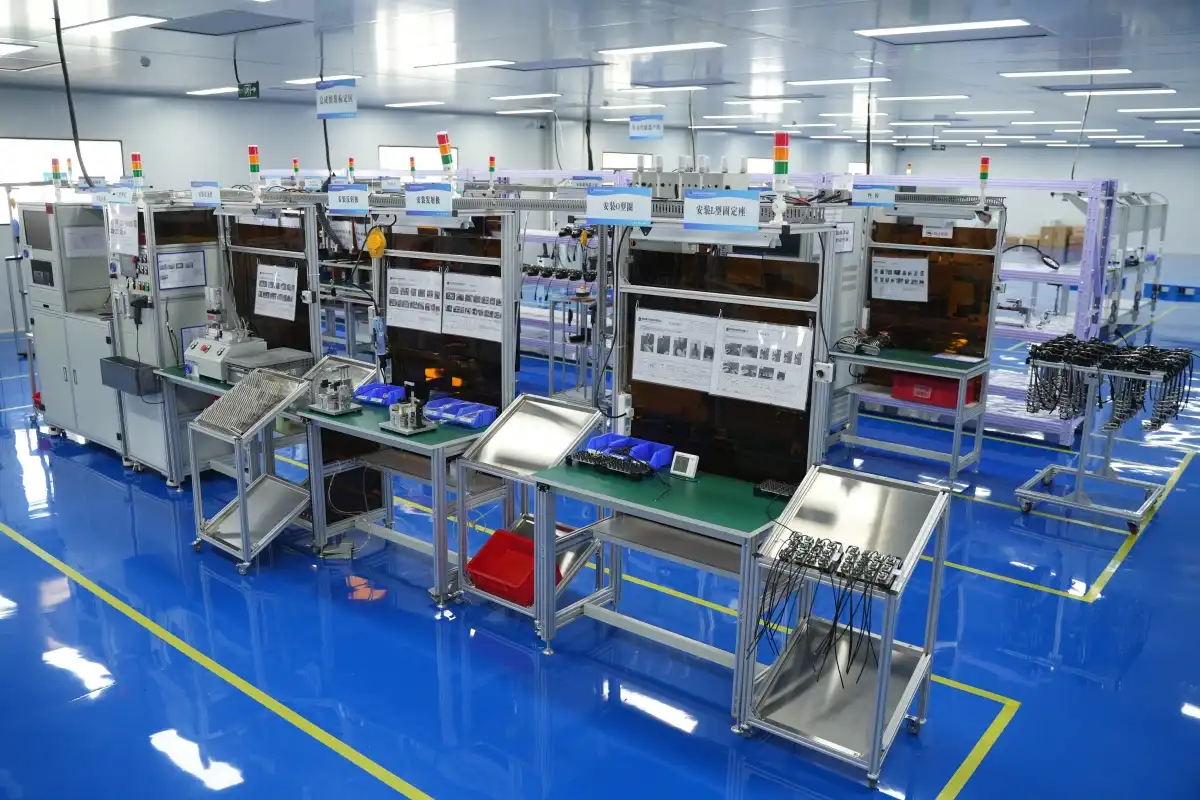

Selecting the right nitrogen oxide sensor supplier means choosing a partner committed to technical excellence, regulatory compliance, and long-term collaboration. Xi'an Qintai Automotive Emission Technology Co. Ltd has served as a specialized Nox sensor manufacturer since 2001, bringing over two decades of engineering expertise to diesel emission control solutions. Our position as China's leading OEM supplier to Weichai Power, Yuchai Power, and Quanchai Power demonstrates the trust major engine manufacturers place in our product quality and manufacturing consistency.

Procurement managers and technical engineers worldwide trust our sensors for heavy trucks, construction machinery, agricultural equipment, generator sets, and aftertreatment system integration. Our technical support team assists with product selection, compatibility verification, and troubleshooting guidance, ensuring optimal sensor performance throughout the product lifecycle. Contact our team at info@qt-sensor.com to discuss your nitrogen oxide sensor requirements, request technical specifications, or explore volume pricing for fleet applications.
