OEM NOx Sensor Guide: How to Choose the Right Specification Today

Selecting the right NOx sensor specification demands careful evaluation of emission standards, technical parameters, and operational durability. Modern diesel engines rely on precise nitrogen oxide detection to meet EPA 2010 and Euro VI compliance requirements while maintaining fuel efficiency. Choosing an OEM-grade sensor with certified accuracy, robust construction, and proven compatibility ensures your aftertreatment system delivers consistent performance across demanding applications from heavy-duty trucks to generator sets.

Understanding NOx Sensors and Their Role in Emission Control

Since Selective Catalytic Reduction systems came out, nitrogen oxide sensors have become an important part of controlling diesel emissions. These high-tech parts record NOx levels in real time, which allows exact Diesel Exhaust Fluid injection that changes dangerous nitrogen oxides into nitrogen, water vapour, and carbon dioxide (Bostech Auto, 2024) that are safe.

How NOx Detection Technology Works?

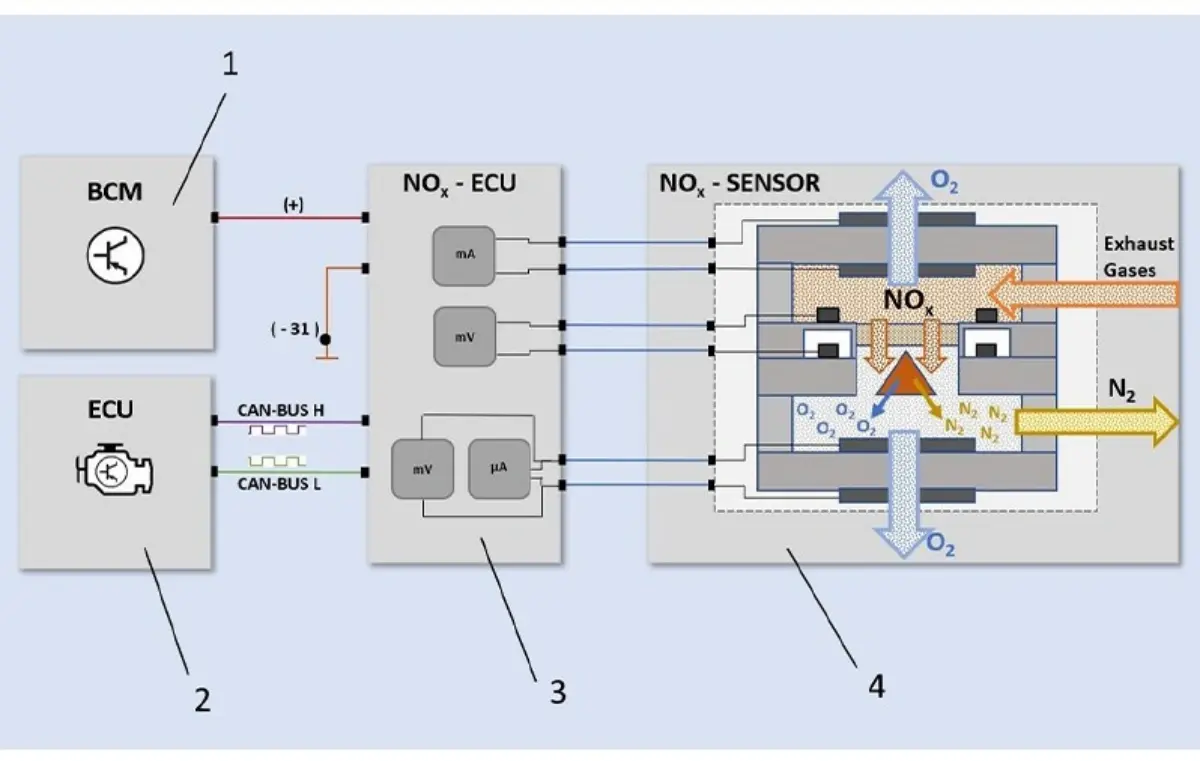

Yttria-stabilized zirconia ceramic cells carry oxygen ions at high temperatures and are used for sensing. When exhaust gas enters the sensor room, an oxygen pump cell first makes sure that the amount of oxygen is at a set level. The gas then moves into a second room where NOx molecules break down with the help of a catalyst, releasing oxygen ions in a way that depends on the amount of nitrogen oxide present. From 0 to 2500 ppm (Eureka PatSnap, 2024), this electrochemical current gives the engine control unit accurate NOx readings.

Dual-Sensor Architecture in Modern SCR Systems

In heavy-duty diesel applications, two sensors usually work together. The upstream sensor, which is near the turbo exit, measures the amount of NOx coming out of the engine. This lets the ECU figure out how much DEF to add. The downstream sensor placed after the SCR catalyst checks conversion efficiency, creating a closed-loop feedback system that keeps emissions compliance under changing load conditions (DPF Parts Direct, 2024). This setup finds problems with the catalyst, the quality of the DEF, and the system before they cause the engine to derate.

Distinguishing NOx Sensors from Oxygen Sensors

Even though both sensors use zirconia technology, they do very different things. Oxygen sensors work at lower temperatures and with simpler two-cell designs to get the best air-fuel ratios for efficient combustion. NOx Sensors have multiple chambers and built-in heaters that can reach 800°C. They are designed to tell the difference between nitrogen oxides and other exhaust components. To avoid design mistakes that hurt the performance of pollution controls, procurement teams need to be aware of these differences.

Key Specifications and Selection Criteria for OEM NOx Sensors

To pick the right sensor specs, you need to make sure that the technical skills match the needs of your program and the rules that apply. Not only does the choice affect compliance, but it also affects running costs and the reliability of the system in the long term.

Critical Performance Parameters

When looking at different sensor options, a few key factors determine which ones will work best with your equipment. The measuring range tells you what concentration range the sensor can correctly pick up. For NOx, industrial uses usually need coverage from 0 to 2500 ppm. Specifications for accuracy change depending on the concentration band. Good sensors keep their accuracy within ±10 ppm at lower levels and increase proportionally at higher concentrations. Response time has a direct effect on how quickly an SCR system reacts. Professional-grade units can get readings within 1400 milliseconds of a change.

The operating temperature range is very important for longevity. When the engine is cold, the exhaust temperature must be -40°C, and when it's fully loaded, it must be 800°C. To keep harnesses from breaking, cable systems need to have their own temperature values, which are usually between -40°C and 200°C. Light-off time shows how quickly the sensor hits working temperature after the engine starts up. Newer designs turn on in less than 165 seconds, while older technologies needed almost three minutes. This makes a big difference in lowering cold-start emissions.

Compatibility and Integration Considerations

Compatibility with electrical interfaces keeps expensive installation delays from happening. Make sure the source voltage ranges work with the electrical system in your car. For business use, the voltage ranges should be between 9V and 32V. When integrating with different ECU systems, communication protocol support is very important. Full compatibility with 300+ protocols provides smooth data sharing across a wide range of fleet compositions. The mounting dimensions must match the current layout of the exhaust system. M20x1.5 threading is the standard size for heavy-duty applications in the industry.

The ability to customise connectors lets them work with different OEM wire designs without having to change the wiring completely. Sealed waterproof construction that meets IP6K9K standards keeps out water and prevents damage from pressure washing, which is common in building and farming. These useful factors separate sensors that are easy to install from those that present unexpected engineering difficulties.

Balancing Cost Against Service Life Expectations

The prices of aftermarket options and authorised OEM parts vary a lot at first, but quality standards are more cost-effective over the long run. Sensors with a 6000-hour service life last 50% longer than standard units, which means they don't need to be replaced as often and save money on labour costs. Better resistance to poisoning keeps calibration accuracy even when exposed to lead and sulphide contaminants that are common in diesel fumes. This stops premature drift that causes fake fault codes.

Warranty covering shows that the maker trusts the product to last. Genuine OEM parts from well-known sources usually come with 24-month warranties that protect your investment against manufacturing flaws. When choices about what to buy are based only on the original cost, failures in the field often cancel out any savings that were thought to have been made due to longer downtime, higher shipping costs, and fines for failed emissions tests.

Troubleshooting, Maintenance, and Replacement of NOx Sensors

Keeping sensors reliable has a direct effect on your ability to meet the requirements for ongoing emissions monitoring and keep operations running smoothly. Knowing how things usually break down lets managers be more proactive and reduce the need for unexpected repair.

Recognizing Failure Symptoms

Diagnostic trouble codes between P2200 and P2299 specifically mean that the NOx Sensor circuit isn't working right, that it hasn't been fully calibrated, or that the results aren't logical. These codes often show up with SCR system efficiency alerts when a sensor further down the line detects not enough NOx conversion. According to NEV Semi (2024), performance problems include the engine lowering to 50% power output after warnings get worse, using more DEF because the dosing calculations were wrong, and failing emissions inspections even though the vehicle had recently been serviced.

When you look at something physically, you can sometimes see damage. Leaks in the exhaust system near the sensor bung let air in, which changes the results. Corrosion in connectors stops signals from being sent, and cable wear from vibrations causes faults to happen sometimes. Too much soot on the sensor tip can mean there are problems upstream with the combustion process, but it can also slow down response times and make readings less accurate.

Testing and Diagnostic Procedures

The first step in a professional analysis is to look for stored problem codes and look at freeze-frame data that shows how the system was working when it failed. Monitoring live data while the engine is under different loads shows if the sensor output changes in a way that is appropriate for the changing exhaust circumstances. When you compare results from upstream and downstream during steady-state operation, you can find problems with either sensor decline or catalyst efficiency.

Forced calibration methods and heater circuit resistance checks can be done with special diagnostic tools. But because modern nitrogen oxide sensors are more complicated on the inside than oxygen sensors, they can't be tested in the field as much. When early tests show that a sensor isn't working right, replacing it is usually a better deal than spending a lot of time and money fixing it, especially when emissions compliance is at stake.

Preventive Maintenance and Replacement Intervals

Every 500 hours of operation, the connectors should be visually checked and the fixing should be confirmed to be safe. Engine makers sometimes change the diagnostic limits or sensor calibration settings in software updates. Keeping the current ECU programming stops false trouble codes. DEF quality directly affects how long sensors last; polluted fluid speeds up the breakdown of both catalysts and sensors, so high-use companies should test their fluids.

When to replace something depends on how bad the application is. Over-the-road trucks that work on smooth highways may get 6000 hours of use out of their sensors. On the other hand, construction equipment that works in dusty places or generators that use lower-grade fuel may need new sensors every 4000 hours. Setting replacement plans based on working hours instead of waiting for failures cuts down on unplanned downtime and makes sure that emissions standards are always met.

Comparing Top OEM NOx Sensor Brands and Products in 2024

In the market for nitrogen gas sensors, there are both well-known companies and new, specialised ones. Understanding how competitors are positioned helps procurement teams choose options that strike a balance between reputation, technical skills, and cost.

OEM installations for major engine manufacturers are mostly done by global tier-one automotive suppliers like Bosch, Delphi Technologies, and Denso. These names offer a lot of validation testing, a wide range of applications, and delivery networks all over the world. Their products usually have high prices, which is backed up by detailed technical documentation, quick response times from field support, and millions of hours of use that show how durable they are. Procurement experts like that they have well-established quality systems and can help standardise the global fleet.

Regional experts, such as Continental and NGK, have built strong places in certain market niches by providing competitive options with unique technical features. Their products often offer similar performance at small cost savings, making them appealing to buyers who are looking for good deals and who run mixed fleets where individual unit economics are more important than standardisation.

Xi'an Qintai Automotive Emission Technology is an up-and-coming company that combines advanced technical skills with flexible business models that make them appealing to companies that integrate aftertreatment systems and distribute aftermarket parts. Since 2001, Qintai has been supplying major Chinese engine makers with industrial-grade sensors that meet foreign certification standards such as IATF16949, UL, CE, and RoHS.

In important ways, their product specs are the same as or better than well-known brands': response times of less than 1400ms, service life of up to 6000 hours, and light-off times much shorter than the average of 165 seconds in the industry. Customisation options for connectors, cable lengths, and communication protocols solve the problem of compatibility that procurement teams face when they have to buy a lot of different kinds of equipment.

The ways that NOx Sensor categories are priced are very different. Tier-one OEM parts usually cost between $350 and $650 per unit, but this depends on how complicated the application is. If you buy more than 1000 units in a year, you can get a discount. Specialised manufacturers usually set their prices 15 to 25 percent lower than these levels while keeping the same standards. When compared to distributor routes, buying directly from manufacturers can save you an extra 20 to 30 percent. This is especially helpful for big fleet owners and system integrators who manage their own supplies.

Procurement Best Practices and How to Place Orders Confidently

To buy sensors successfully, you need formal evaluation processes that check the skills of suppliers, protect against fake parts, and set up good business terms that will support long-term operations.

Supplier Verification and Quality Assurance

Being an authorised dealer means that you can get real OEM parts that come with maker warranties. It also means that you are part of a legal supply chain. Ask for proof of IATF16949 compliance through certification documents. This shows that the automotive quality management system is being used. It turns out that ISO9001 certification isn't enough for some important emission components that need extra controls designed for cars.

Objective performance verification is provided by testing results that confirm the specs. Ask for proof that the measurement range is accurate across a wide range of temperatures, that the response time is true, and that the results of accelerated life tests have been met. Suppliers who are sure of their products are happy to share this information, while those who aren't sure may be a sign of quality issues. Before placing a big order, product samples can be used for in-house bench testing and trial installs.

Structuring Favorable Commercial Agreements

When you commit to a certain amount of goods, you can get better prices and faster production when supplies are low. Annual blanket orders with planned drops keep inventory costs in check while unit price optimisation is done. When negotiating payment terms, you should think about both competitive pricing and managing your cash flow. In business-to-business transactions, net 30 or 60-day terms are common, and small discounts are sometimes available for paying faster.

Warranty terms need extra care after the normal time period is over. Make it clear if the coverage includes the cost of labour for installing new parts or just the value of the parts themselves. Set failure rate limits that will cause batches to be sent back or specifications to be reviewed. Return policies should allow for acceptable amounts of unused inventory for uses that are no longer being used. This will protect against the risk of obsolescence.

Technical Support and After-Sales Service

Specification mistakes and installation problems can be avoided with implementation help. Suppliers that offer pre-sales engineering consultation can help match the capabilities of a sensor to the needs of a specific application. Installation training for maintenance staff cuts down on mistakes in the field that void warranties. Access to post-sale technical help is important for fixing unexpected performance problems. Check the response time promises for technical questions and the availability of field support.

The total cost of ownership is affected by the geographic service options. When compared to foreign shipping, domestic distribution hubs allow for faster restocking and lower freight costs for every order. When suppliers keep inventory in the US, lead times drop from weeks to days. This is very important when equipment breakdowns cost more in lost revenue than the cost of the parts. Resources on the qt-sensor.com website include specification details, application guides, and technical documentation that can help you make smart decisions about what to buy.

Conclusion

The right NOx Sensor design strikes a mix between meeting regulation requirements, being able to keep working for a long time, and lowering the total cost of ownership. Your emission control systems will keep working well as long as you know the technical differences between sensor technologies, check the specifications against your specific application environment, and build relationships with qualified suppliers. The choice to buy includes more than just the initial price. It also takes into account the expected service life, the quality of the technical help, and the dependability of the supply chain. Procurement teams protect their companies from compliance risks and lower upkeep costs over the lifecycles of their equipment by using organised evaluation processes and working with makers that show they are both technically capable and commercially flexible.

FAQ

Q1: What replacement interval should I plan for NOx sensors in heavy-duty applications?

A: When to replace something varies a lot on how it's being used and the quality of the fuel. Over-the-road trucks usually have good OEM sensors last between 5,000 and 6,000 hours of use. Off-road equipment used in dusty construction sites may need new sensors every 4000 hours. Setting up condition-based tracking through regular diagnostic scans finds wear and tear before it leads to full failures. This lets replacements happen during planned maintenance instead of emergency repairs.

Q2: How do aftermarket sensors compare to OEM components for emissions compliance?

A: The quality and approval status of aftermarket sensors vary a lot. Alternatives that aren't certified might work at first, but they usually don't last as long, lose their calibration over time, or have problems working with certain versions of ECU software. Using parts that aren't made by the engine's manufacturer can cancel the warranty and make you responsible during emissions checks. When cost pressures force you to think about the aftermarket, make sure the supplier gives you certification paperwork and testing results that show the same level of performance as OEM specs.

Q3: What causes premature NOx sensor failure and how can I prevent it?

A: Some common ways that things fail are contaminated DEF fluid introducing foreign materials that damage sensing elements, exhaust leaks letting air in that messes up readings, and wire damage from being exposed to vibrations or heat. To prevent this, only use DEF that is ISO 22241-certified, fix exhaust leaks right away, route wires away from heat sources and make sure they are securely fastened, and don't use pressure washing directly on sensor connectors. Visual checks done as part of regular maintenance catch problems as they start to form before they become complete failures.

Partner with a Certified NOx Sensor Manufacturer for Your Fleet

Over twenty years of experience in pollution control is combined with Qintai's ability to make products that can be tailored to a wide range of application needs. Our nitrogen oxide monitors have reaction times of less than 1400ms and a service life of more than 6000 hours. They are backed by a number of standards, such as IATF16949, UL, and CE compliance. We know what kind of performance is needed for commercial vehicles and industry uses because we are the main source to China's biggest engine makers.

Our engineering team can customise connectors, cable assemblies, and communication protocols to make sure they work with the equipment you already have without having to make expensive changes. We keep our prices competitive for large purchases and are here to help you with technical questions as you evaluate our services. Email our team at info@qt-sensor.com to talk about your particular sensor needs and get more information. OEM manufacturers, system integrators, and aftermarket distributors looking for a reliable NOx Sensor supplier with a track record of delivering to customers around the world are welcome to contact us.
