What role does the urea pressure sensor play in emissions?

Urea pressure sensors serve as essential guardians of clean air in modern diesel engine systems. These precision instruments monitor and control the injection pressure of diesel exhaust fluid (DEF) within Selective Catalytic Reduction (SCR) aftertreatment systems, ensuring optimal nitrogen oxide reduction. By maintaining accurate urea dosing pressure between 5-8 bar, these sensors enable proper atomization and chemical reaction processes that convert harmful NOx emissions into harmless nitrogen and water vapor, making them indispensable for achieving Euro VI and EPA emission compliance standards.

Introduction to Urea Pressure Sensors in Emission Control

The car industry is under more and more pressure to cut down on harmful pollution while keeping engine performance and gas mileage high. In this tough environment, SCR systems have become the best way for diesel engines to cut down on NOx. The urea pressure sensor is an important part of these complex aftertreatment systems that many people forget about.

These sensors are where precision engineering and caring for the world meet. As AdBlue (diesel exhaust fluid) moves from the dosing pump to the injection tip, the pressure is constantly being checked. This real-time tracking makes sure that the right amount of urea solution gets to the SCR catalyst at the right pressure. This allows the best chemical processes to happen that get rid of harmful nitrogen oxides.

Today's rules on emissions require these systems to be more accurate than ever before. The Euro VI norms of the European Union and the rules of the US Environmental Protection Agency both need NOx reduction rates of more than 90%. To reach these goals, it's important to keep the urea injection pressure accurate. This pressure usually ranges from 5 to 8 bar, but it can change based on the engine load and working conditions.

Because current diesel aftertreatment systems are so complicated, even small changes in urea pressure can cause big problems with meeting emission standards. When the pressure goes below what it should be, partial urea injection happens, which means that NOx is not reduced enough. On the other hand, too much pressure can lead to over-dosing, which can damage the catalyst and cause ammonia to slip. This fine balance shows how important it is to have accurate equipment for monitoring pressure.

Understanding the Working Principle and Types of Urea Pressure Sensors

Basically, urea dosing pressure sensors work by turning mechanical pressure into electrical signs that engine control units can understand and act on. AdBlue puts pressure on a detecting element inside the sensor housing as it moves through the dosing device. The sensor diaphragm deforms on a tiny level because of this pressure, which creates a proportional electrical output signal.

Piezoelectric Sensor Technology

When solid materials are put under mechanical stress, they create electrical charges. This is how piezoelectric urea pressure sensors work. Because they respond so quickly and accurately to changes in frequency, these sensors are great for measuring dynamic pressure. The quartz or clay sensor elements react right away to changes in pressure, which makes them perfect for high-speed injection systems where pressure changes happen quickly.

Because they are solid-state, piezoelectric sensors last a long time because they don't have any moving parts that could break down over time. But the low-level electrical outputs these sensors make need to be amplified and processed by complex signal processing circuits.

Strain Gauge Technology

When metal or semiconductor parts are physically bent, they change the electrical resistance of the sensors. A pressure-sensitive membrane is usually attached to these sensors along with strain gauges set up in a Wheatstone bridge pattern. When urea pressure bends the diaphragm, the strain changes the resistance values, which makes a voltage output that can be measured.

The best thing about strain gauge sensors is that they are very stable over time and work linearly across a wide range of pressures. Because they are built to last, they work especially well in harsh vehicle settings where temperature changes and vibrations are typical problems.

Capacitive Pressure Sensing

Capacitive sensors measure changes in electrical capacitance between two conductive plates that are divided by a movable diaphragm to pick up on changes in pressure. When the urea pressure goes up, the diaphragm moves toward the fixed plate. This closes the gap and makes the capacitance go up by the same amount.

These sensors are very accurate and stable, especially when used in low-pressure situations. Their output is naturally digital, which makes it easier to connect to current engine control systems. They also have great resistance to electromagnetic interference.

Role of Urea Pressure Sensors in Emission Reduction Systems

When pressure sensors are built into SCR systems, they create a complex feedback control loop that makes the emission reduction work best in all situations. This closed-loop device changes the rate of urea input all the time based on real-time data on pressure, engine load, exhaust temperature, and feedback from NOx sensors.

Real-Time System Optimization

Engine control units use data from pressure sensors to figure out the exact time and length of injections. When the sensor picks up changes in pressure, the ECU changes the pump speed and injection pulse width right away to keep the dose rates at their best. This control makes sure that the emissions performance stays the same no matter what the engine speed, load, or environment is like.

The sensor data also lets the system manager make predictions. By keeping an eye on how pressure changes over time, the control system can predict when parts will wear out, filters will get clogged, or pumps will stop working well before they affect emission performance. This proactive method cuts down on sudden breakdowns and increases the service life of the system.

Prevention of System Malfunctions

Urea crystallization is one of the most common ways for SCR systems to fail, especially when they are used in cold weather or for long periods of time without being used. Pressure sensors are very important for finding the early stages of crystallization because they can spot unusual patterns of pressure that mean flow paths are being blocked.

When sensors pick up on changes in pressure that are consistent with crystal formation, the system can start purge cycles or heating processes to get rid of deposits before they become lasting blockages. This ability to stop problems before they happen greatly lowers the need for upkeep and keeps expensive system fixes from happening.

Integration with Diagnostic Systems

Modern diagnostic methods for cars need to keep a close eye on all pollution control parts. On-board diagnostics (OBD) systems use pressure sensors to gather important information that helps them find problems and let drivers know about problems with the emission system.

The sensor output lets complex troubleshooting algorithms tell the difference between different types of failure, such as pump problems, line blocks, injector issues, and sensor failures themselves. This monitoring feature helps workers quickly find problems and fix them, while also making sure that emission standards are still met.

Comparing Urea Pressure Sensors: Choosing the Right Sensor for Emission Controls

A lot of technical and business factors need to be carefully thought through when choosing the right pressure sensors for SCR uses. What kind of working setting it is, how accurate it needs to be, how much it costs, and how well it works with other parts all affect which sensor is best for a given job.

Precision Requirements and Operating Ranges

Most high-precision sensors have accuracy specs of within ±0.5% of full scale, which means they can be used in situations that need excellent emission performance. A lot of the time, these sensors use clever data processing and temperature compensation to keep their accuracy over a wide range of temperatures.

Even though standard precision urea pressure sensors are not highly accurate (typically within ±2% to 3% of full scale), they remain a practical choice for applications where moderate accuracy is sufficient. The required accuracy level depends on how strict the emission targets are, the available system design margins, and the objective of minimizing overall costs.

Environmental Durability Considerations

Automotive pressure sensors have to work in a wide range of temperatures, from -40°C for cold starts to over 120°C in the engine area. It's important to have vibration protection in mobile applications where there is steady movement and the road isn't smooth.

To be chemically compatible with urea solutions, you need special coats and materials that don't rust when exposed to ammonia and urea byproducts. For DEF uses, sensors are made with materials like stainless steel 316L or special polymer coatings that keep their stability over long periods of time.

Brand Comparison and Selection Criteria

For use in car emission uses, leading sensor makers have made specialized products, each with its own benefits and traits. Bosch sensors are based on a lot of experience with cars and work well with engine control systems. Denso sensors focus on accuracy and speed, while Continental goods stress sturdiness and long-term dependability.

Compatibility with current system design, technical help, and long-term supply chain stability should be the top priorities during the decision process. When buying things, procurement teams have to weigh the current cost against the total cost of ownership, which includes things like how often the product breaks down and how much it costs to maintain.

Procurement and Installation Considerations for Urea Pressure Sensors

A successful sensor buying process includes more than just technical requirements. It also includes evaluating suppliers, making sure quality standards are met, and planning logistics. In the car business, procurement choices are affected by the global supply chain, the need to follow regulations, and the possibility of long-term partnerships.

Supplier Evaluation and Quality Assurance

When procurement teams look at possible providers, they should give more weight to companies that have well-known car quality certifications like ISO 9001 and IATF 16949. These standards make sure that production processes are always the same and that there are thorough quality control systems in place to keep defect rates low and make sure that products work as they should.

An evaluation of a manufacturer's abilities should include information on their output capacity, their plans for new technologies, and where their sites are located. Suppliers that make things all over the world can make foreign operations more flexible in their supply chains and cut down on the costs of transportation.

Technical support capabilities represent another critical evaluation criterion. Suppliers should offer comprehensive engineering support, including application assistance, custom sensor development, and ongoing technical consultation throughout the product lifecycle.

Installation and System Integration

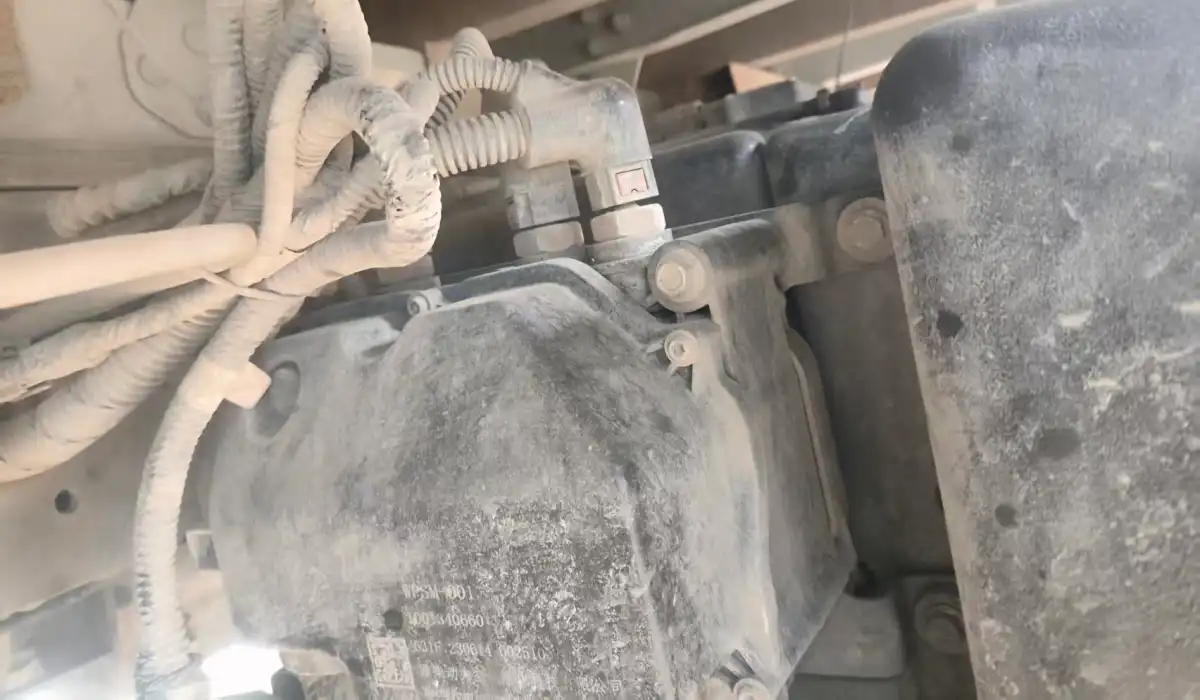

When installing sensors correctly, you need to think about how to mount them, how to route signals, and how to protect the environment. Placement of sensors is important for getting accurate pressure readings while limiting their exposure to sources of shaking, heat stress, and contamination.

When you integrate electrical parts, you have to think carefully about signal integrity, electromagnetic compatibility, and communication methods for diagnostics. When insulation and grounding are done correctly, signals don't get messed up, and contact with engine control systems is reliable.

System calibration procedures establish baseline performance characteristics and ensure accurate pressure measurement across the entire operating range of the urea pressure sensor. To guarantee measurement accuracy, initial testing should be conducted in a controlled environment using traceable standards.

Maintenance and Troubleshooting Protocols

Regular repair plans should include checking and adjusting the pressure sensors on a regular basis. A visual check can find physical harm, corroded connectors, or contamination that could stop the sensor from working.

Technicians can check the accuracy and reaction qualities of sensors by using diagnostic tools to test their performance. When you compare your sensors to known pressure sources or reference sensors, you can find calibration drift or component wear and tear before they affect the emission performance.

Systematic diagnostic methods help separate sensor problems from other system parts when solving pressure-related problems. Verification of pressure measurements, checking for electrical continuity, and signal quality analysis give a full picture of the state and function of a sensor.

Conclusion

Urea pressure sensors are very important in modern diesel pollution control systems because they are the precise tools that make SCR technology meet ever stricter environmental standards. Their job is more than just measuring pressure; it also includes system optimization, predictive maintenance, and diagnostic help that make sure the car always meets pollution standards. When choosing and using the right sensor technology, it's important to think carefully about the technical needs, the working conditions, and the expected long-term dependability. As emission rules get stricter, it will become even more important to have reliable and accurate pressure monitoring. This means that choosing the right sensor is a very important choice for both automakers and aftermarket providers.

FAQ

What is the typical lifespan of urea pressure sensors in SCR systems?

Under normal circumstances, urea pressure sensors should work reliably for 150,000 to 200,000 kilometers. How long it actually lasts relies on things like the duty cycle, the working environment, the quality of the fluid, and how well it is maintained. Heavy-duty uses, like construction tools or long-haul trucks, may need to change sensors more often because they are used for longer periods of time and are exposed to harsh circumstances.

How can I identify when a urea pressure sensor needs recalibration or replacement?

Several signs show that the pressure sensor needs to be serviced. Sensor problems may be shown by diagnostic trouble codes linked to urea dosing pressure, inconsistent emission performance, or NOx sensor numbers that are outside of the usual range. If you look at it physically, you might find rust on the connectors, damage to the case, or contamination. Diagnostic tools can be used to test the performance of sensors to make sure they are accurate and find calibration drift that is too high.

Can urea pressure sensors be integrated with existing emission monitoring infrastructure?

Modern pressure sensors are made to work with common communication systems in cars, like the CAN bus and diagnostic interfaces. To add pressure data to current control methods, integration usually needs the right signal conditioning, the right addressing in the control network, and the right software setup. For retrofit uses, adding more interface modules or updating the control system may be needed to make room for new sensor inputs.

What pressure ranges do automotive urea pressure sensors typically measure?

For automotive uses, the normal range for measuring pressure is 0 to 10 bar, and the best range for input pressure is 5 to 8 bar. Some high-pressure pumping systems can work at up to 15 bar to mix and atomize the material better. The exact pressure range relies on how the system is built, the specs of the injectors, and the needs of the application in terms of reducing emissions and using less fluid.

Partner with Qintai for Advanced Urea Pressure Sensor Solutions

Qintai stands as China's leading urea pressure sensor manufacturer, combining over two decades of automotive emission expertise with cutting-edge sensor technology. Our comprehensive product portfolio serves global OEMs and aftermarket customers seeking reliable, accurate pressure monitoring solutions for SCR systems. With IATF 16949 certification, 58 invention patents, and partnerships with major engine manufacturers including Weichai Power and Yuchai Power, Qintai delivers proven sensor technology that meets the most demanding emission compliance requirements.

Our engineering team provides complete technical support from initial application consultation through production implementation, ensuring optimal sensor selection and integration for your specific requirements. Contact us at info@qt-sensor.com to discuss your urea pressure sensor needs and discover how our advanced sensing solutions can enhance your emission control system performance while reducing total cost of ownership.
