Why Use Sputtered Thin Film Pressure Sensors in Harsh Environments?

When equipment operates under extreme pressure, heat, vibration, or chemical exposure, sensor failure is not just costly — it can halt entire operations. Sputtered thin film pressure sensors address this challenge directly. By bonding sensing materials to a stainless steel substrate at the atomic level through vacuum deposition, these sensors deliver exceptional accuracy, long-term stability, and corrosion resistance. Whether you are managing diesel engine aftertreatment systems, generator sets in remote mines, or SCR/DPF emission control platforms, this technology offers the reliability that demanding environments genuinely require.

Understanding Sputtered Thin Film Pressure Sensors

How the Sputtering Process Works?

Thin film deposition is different from traditional designs that use bonded foil or silicon. It uses a high-vacuum sputtering process to attach metallic or alloy sensing layers directly to the substrate at the atomic level. There are no creep effects because there is no glue or silicone oil. The insulating film, the sensitive film, and the base all join together using atomic force. This is a unique production process that makes these sensors famous for their high repeatability and signal stability.

Signal Output and Operating Range

Thin film pressure transducers can output data in a number of different formats to meet the needs of a wide range of integration projects. There are 0–5 V and 0–10 V voltage signals and 4–20 mA current loops on the analog outputs. There are digital protocols like CAN, CANopen, J1939, I²C, and SPI that can be used for OEM and automotive-grade integration. The ambient temperature range is -40°C to +125°C, and the media temperature tolerance is up to +150°C. For special orders, longer models can be made that can handle temperatures up to +200°C.

Why Are Sputtered Thin Film Pressure Sensors Ideal for Harsh Environments?

Heavy trucks, building equipment, farm equipment, and fixed generator sets are all examples of industrial machinery that regularly puts a sputtered thin film pressure sensor in situations that destroy normal sensing elements within months. Off-road vehicles can vibrate more than 20g, exhaust media can get hotter than 150°C, and toxic gasses are always present. Normal sensors with oil-filled holes or rubber O-rings aren't made to work with these conditions.

Here are the main performance benefits of this sensor technology that set it apart in harsh environments:

• No rubber seals, no silicone oil filling. The entire sensing assembly is laser-welded or plasma-welded into a sealed unit. The pressure medium contacts the corrosion-resistant stainless steel sensitive core directly. This eliminates leak paths entirely and removes chemical degradation risk from sealing materials.
• High-intensity vibration and shock resistance. Because the film stack is metallurgically bonded rather than adhesive-mounted, the structure maintains mechanical integrity under sustained shock and vibration loads — critical for diesel engine mounting points and mobile machinery hydraulic circuits.
• Wide, stable temperature performance. Laser resistance trimming and semiconductor process technology compensate for thermal drift across the full operational range. Readings remain consistent whether the sensor sits on a cold-start engine at −40°C or monitors a running exhaust line at +150°C.
• High-frequency pressure response. With no diaphragm fluid and no intermediate media, pressure changes transmit directly to the sensing core. This produces fast, real-time response — a measurable advantage when monitoring dynamic combustion or hydraulic surge events.
• Compact form factor. The thin film construction enables miniaturized geometries that integrate cleanly into confined engine compartments, hydraulic manifolds, or aftertreatment module housings without requiring structural redesign.

It doesn't have any rubber covers or silicone oil fills. The detecting system is laser- or plasma-welded into a single, sealed unit. The pressure medium comes into close touch with the sensitive stainless steel core that doesn't rust. This completely gets rid of leak paths and the chance that covering materials will break down chemically.

Comparing Thin Film Sensors with Alternative Pressure Sensing Technologies

It is common for procurement engineers to look at piezoresistive, MEMS, and capacitive pressure sensors along with a sputtered thin film pressure sensor before choosing a platform. Before choosing a platform, it's important to know the pros and cons of each system. Piezoresistive sensors are fairly sensitive and don't cost too much, but their silicon structures break easily when they are hit by a hard object, and they don't work as well when the temperature changes a lot. MEMS devices are great for uses that need to be small and use little power, but they can be harmed by particles and media corrosion. Electromagnetic interference can be harmful to capacitors. This happens a lot near the ignition and injection electronics in diesel engines.

Thin film metal strain gage sensors are unique because they have the mechanical strength of stainless steel construction and the accuracy of a sensing element that is defined photolithographically. The initial unit cost may be higher than a piezoresistive equivalent, but it needs to be replaced much less often. For OEM procurement teams in charge of multi-year supply deals, that lifecycle estimate strongly favors the thin film platform, especially when meeting emission standards and getting system approval are musts.

Procurement Guide: What to Evaluate in a Thin Film Pressure Sensor Supplier?

It takes more than just comparing datasheet specifications to find the right thin film pressure sensor manufacturer. If a buying relationship helps long-term program success, it depends on how well the supplier can do a number of things. Credentials for certification are a basic need. For quality management in the automotive industry, suppliers should have IATF 16949 certification, and for general manufacturing systems, they should have ISO 9001 certification. Ex certification is needed for explosion-proof sensors used in generators in mines or other dangerous places. Products going into the European or North American markets need to have proof that they meet CE, UL, RoHS, and REACH standards.

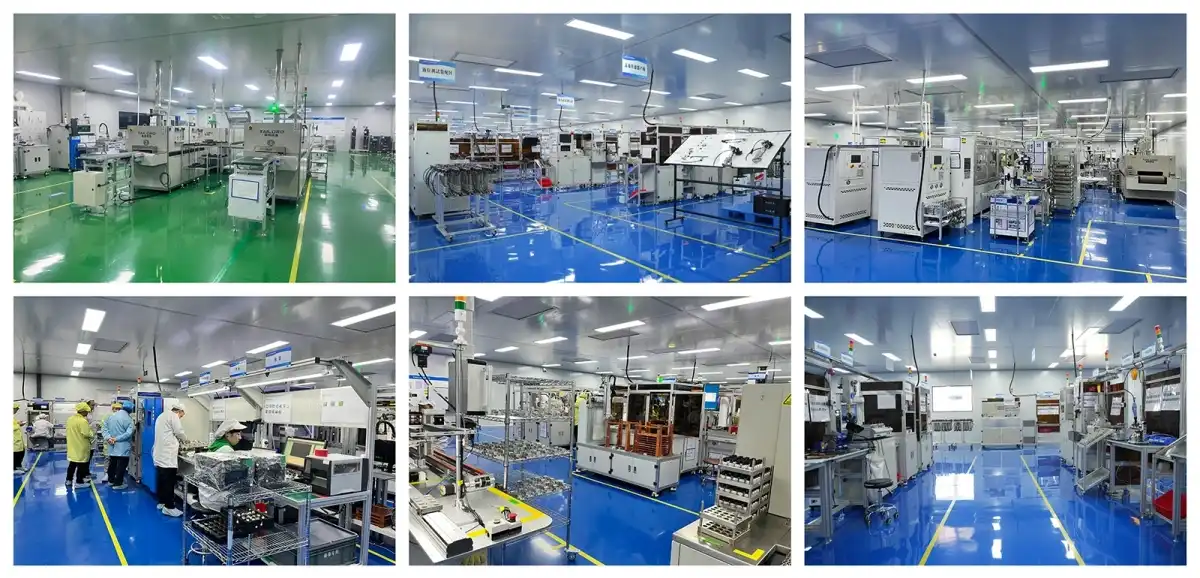

The ability to customize a sputtered thin film pressure sensor is just as important. OEM programs often need pressure ranges, thread setups, connector types, or output methods that are specific to the application. If a supplier has an active research and development team and their own manufacturing capabilities, they can meet these needs without sending requests to third-party design houses. This speeds up the development process and protects IP. At the supply chain level, too, how responsive you are after the sale is important. Technical managers who are looking for sensors for SCR or DPF systems need to know quickly if the parameters are compatible and get replacement stock quickly. A provider with a real inventory and a separate technology support team greatly lowers the risk of the program.

Future Directions in Thin Film Pressure Sensing

There are more changes coming in the thin film sensor market. Nanostructured alloy films and composite ceramic sensing layers are now being tested for industrial use. These materials promise even better resistance to hydrogen embrittlement and less temperature drift, which is important for fuel cells and hydrogen burning. Wireless pressure transmitters with built-in signal conditioning are making it easier to set up large generator installations and spread-out industrial monitoring networks.

Demand from sectors that need to meet strict emission standards, like China VI and Euro VI diesel aftertreatment, keeps driving volume growth and speeding up supplier investments in automating manufacturing. When original equipment manufacturers (OEMs) make long-term deals with qualified sensor manufacturers, they get ahead of tightening regulatory deadlines and limited component availability.

Conclusion

When used in harsh conditions, standard pressure sensor systems show all of their flaws. When atomic-level deposition and fully welded construction are used to make sputtered thin film pressure sensor units, they don't have any of the problems that weaker technologies do, like leakage, drift, corrosion, and mechanical fatigue. In modern applications, this sensing platform meets the needs of diesel OEMs, aftertreatment integrators, generator set manufacturers, and operators of industrial emission systems by being accurate, long-lasting, and in line with regulations. Picking the right sensor during the design phase will increase the system's uptime and confidence in its ability to work for a long time.

FAQ

Q1: How does sputtering improve sensor durability compared to bonded foil methods?

A: Atomic force holds the sensing film to the substrate during sputtering in a high-vacuum setting. This gets rid of layers of glue that can move, peel off, or break down when heated and cooled. This makes a detecting element that is physically stable and has a much longer fatigue life when it comes to shocks and vibrations.

Q2: Are these sensors compatible with corrosive exhaust media in diesel aftertreatment systems?

A: Yes. The pressure medium only touches the sensor core made of corrosion-resistant stainless steel. There aren't any oil-filled cavities or rubber seals that can break down. Because of this, the sensors work well in places like chemical process areas, hydraulic circuits, and SCR/DPF exhaust pressure monitoring.

Q3: What output signals are available for OEM integration?

A: 4–20 mA, 0–5 V, and 0–10 V electrical data are all standard outputs. Digital protocols like CAN, CANopen, J1939, I²C, and SPI can be used to meet the needs of both automotive and industrial integration.

Q4: What certifications should I require from a supplier?

A: Based on what you need it for, look for certifications like IATF 16949, ISO 9001, CE, UL, RoHS, REACH, and Ex. These references show that your products are made well and follow the rules for the places you want to reach.

Q5: Can these sensors be customized for specific pressure ranges or connector types?

A: Yes. OEM and ODM services from reputable makers cover the pressure range, thread design, connector interface, output signal, and environmental protection grade. Check to see if the provider has its own research and development department before agreeing to a customization program.

Partner with Qintai — Trusted Sputtered Thin Film Pressure Sensor Manufacturer

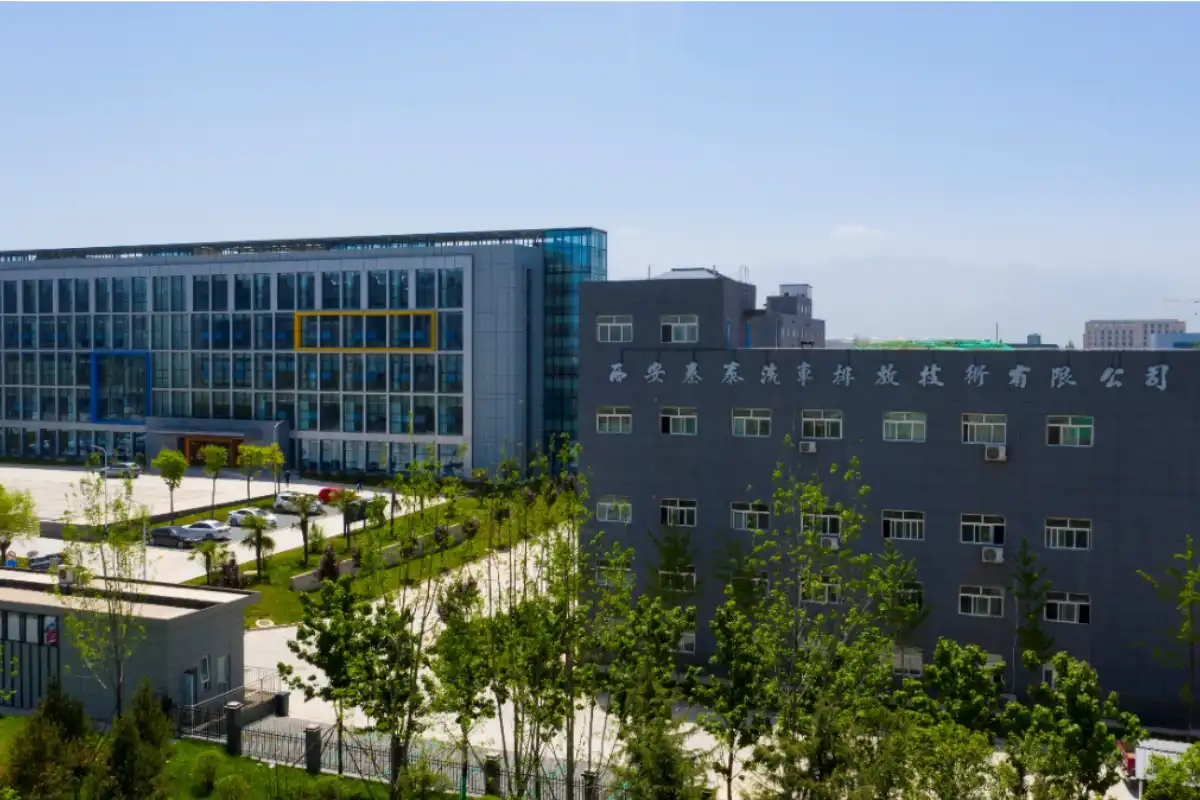

Since 2001, Qintai has been supplying diesel OEMs and aftertreatment providers around the world. They have IATF 16949, ISO 9001, CE, UL, Ex, RoHS, and REACH certifications, and they have filed 58 invention patents. Our company, Qintai, is the top seller of sputtered thin film pressure sensors to China's diesel engine market. Weichai Power, Yuchai Power, and Quanchai Power all see us as a key partner, and we offer competitive OEM/ODM manufacturing. You can email our expert team at info@qt-sensor.com to get datasheets and talk about your application needs.
