A Complete Guide to Diesel NOx Sensors

Diesel NOx sensors are very important parts of current pollution control systems because they measure the amount of nitrogen oxide in diesel exhaust streams very accurately. Ceramic zirconia elements working at temperatures between 700°C and 800°C are used in these high-tech electrochemical devices to send real-time NOx concentration data to engine control units. Being able to understand how they work, how to choose them, and how to buy them is important for manufacturers, aftermarket suppliers, and fleet operators who need to follow stricter emission rules while still being cost-effective and running their businesses efficiently in today's market.

Introducing Diesel NOx Sensors: Function and Operation

Modern diesel engines depend on nitrogen oxide sensors to make sure they meet pollution standards and run at their best. These high-tech gadgets work as hot electrochemical instruments that constantly check the amount of NO and NO₂ in exhaust gases using measurement cells inside the gadgets.

Working Principles and Core Components

The main part of these devices that does the work is a ceramic zirconia element that needs to be kept at the right temperature to work properly. A small device controls the heater's temperature, keeping it between 700°C and 800°C most of the time. It also does automatic self-diagnostics and talks to the engine control unit through the CAN bus system.

The sensor checks several things at once, such as the amount of NOx in parts per million or milligrams per cubic meter, the internal oxygen balance to get accurate results, and the temperature of the sensor and the heater current to make sure it works at its best. This thorough collection of data lets the ECU make smart choices about how to control emissions.

Strategic Sensor Placement in Exhaust Systems

Most current diesel engines have two NOx sensors placed in key areas to make emission control work as well as possible. The sensor upstream, which is put before the SCR catalyst, checks the amounts of raw NOx right after combustion. This setting gives the ECU accurate, real-time information about the actual concentration of nitrogen oxide in the exhaust stream. This lets it make accurate estimates for how much AdBlue to use.

The downstream sensor, which is put in place after the SCR catalyst, checks how well the process of reducing emissions is working. When data stay high, the ECU can pick up on possible problems like AdBlue system problems, less efficient catalysts, or sensor failures. This setup of two sensors makes sure that the whole pollution control process is closely watched.

Communication Protocols and Data Transmission

Sensors and engine control systems mostly talk to each other using digital methods. For example, most current units use CAN bus technology to send data. The sensors send information about the temperature, NOx concentration, and diagnostic state so that the closed-loop SCR can control the amount of AdBlue to get the best NOx conversion.

When this real-time feedback system is in place, it stops both under-dosing, which can lead to emission problems, and over-dosing, which can cause crystals to form or ammonia to slip. The ECU uses this information to do on-board troubleshooting, finding problems with the sensor, catalyst, or dosing while also finding the best EGR rates and injection time to make the engine run more efficiently.

Troubleshooting and Maintenance of Diesel NOx Sensors

Effective maintenance procedures greatly increase the life of sensors, particularly the Diesel NOx sensor, while keeping their measurement accuracy. This lowers running costs and stops unexpected downtime. Fleet managers and makers can protect their investments in emission control by learning about common failure modes and taking steps to stop them.

Common Failure Causes and Diagnostic Approaches

Sensor breakdowns are usually caused by a number of operating and environmental factors that affect the accuracy of measurements and the life of the component. Soot growth is one of the most common reasons, especially in engines that don't burn all the fuel or have bad pumping systems. Moisture getting into sensitive electronic parts can damage them, and too much fuel contact and problems with the injectors can make the sensors less effective.

Misfiring engines cause exhaust conditions that aren't consistent, which puts extra stress on sensing parts beyond what they should be able to handle. General pollution from road waste, chemical contact, or bad fuel quality speeds up the breakdown of parts. By noticing these trends of failure, you can plan preventative maintenance that keeps you from having to make expensive emergency repairs.

Maintenance Schedules and Best Practices

Setting up structured repair plans for sensors increases their useful life while keeping their accuracy. Visual checks should be done on a regular basis to make sure the wire system is secure, the connectors are clean, and the mounting is solid. To keep sensitive parts or calibration settings from getting damaged, cleaning methods must be done exactly as the maker says.

Many experts in the field say that both upstream and downstream sensors should be replaced at the same time because they have similar useful lives and cost less to operate. This method makes sure that measurements are always accurate across the emission control system while keeping car downtime to a minimum. When compared to cheaper options, high-quality substitute parts last longer and work more accurately. Some brands even offer OE-level performance without core charges.

Real-World Case Study: Preventive Maintenance Impact

A large fleet operator put in place thorough repair practices for 200 commercial cars' sensors. This made the sensors last 40% longer and cut down on emissions-related downtime by 25%. The program included cleaning the connectors every three months, inspecting the wires every six months, and planning replacements ahead of time based on working hours instead of waiting for problems to happen.

This method showed that following the right repair steps can make sensors last a lot longer while still following the rules. The fleet got reliable results on emission tests and a lower total cost of ownership by managing its parts strategically and working with suppliers in ways that focused on quality over just price at first.

Diesel NOx Sensors Comparison and Selection Criteria

To choose the right nitrogen oxide sensors, such as the Diesel NOx sensor, you need to carefully look at their technical specs, interface needs, and expected long-term performance. Knowing the differences between the different types of sensors and provider groups helps you make smart purchasing choices that combine cost, performance, and dependability.

Technical Specifications and Performance Characteristics

For good system integration, it's important to be able to tell the difference between NOx sensors and oxygen sensors. Oxygen sensors check the amounts of air and fuel to make sure the engine burns efficiently. Nitrogen oxide sensors make sure the engine's emissions are legal by tracking the amount of NOx in the air for SCR system control. These devices work at various temperature ranges and use unique tracking methods that are best for their specific uses.

Different brands and price ranges offer very different levels of accuracy. The most expensive units can measure with an accuracy of within ±5% when used normally. Response time traits affect how well a system works, especially when it's working in changing conditions and needs to make quick dosing changes to stay in line with emissions rules. Temperature stability and vibration resistance decide how reliable a sensor is in harsh conditions that are common in business settings.

OEM versus Aftermarket Options Analysis

When deciding between OEM and aftermarket sensors, there are more things to think about than just the price of the initial buy. OEM sensors usually come with performance specs and compatibility guarantees that match the original system settings. These units go through a lot of testing and approval steps that make sure they work the same way in all kinds of fuel and operating situations.

Aftermarket options can save you money while still giving you good performance, especially for older cars or fleets that are trying to stay within their budgets. But because aftermarket sellers offer different levels of quality, it's important to carefully evaluate and check the performance of each source. According to a recent study of the market, quality aftermarket sensors work at 85% to 90% of OEM levels while saving you 20% to 30% of the cost.

Leading Brand Evaluation and Selection Guidelines

Well-known companies like Bosch, Denso, and Continental stay ahead of the competition by constantly coming up with new ideas and making sure their products are of high quality. When used in heavy-duty situations, Bosch sensors are very durable, and when used in precise measurement situations, Denso units are more accurate. Continental products offer balanced performance in a wide range of working situations at prices that are hard to beat.

The terms of the warranty, the availability of expert help, and the stability of the provider over the long term should all be taken into account. Having ties with several qualified suppliers helps procurement teams make sure that supplies are always available and prices are fair. Think about providers who can make changes to meet the specific needs of your program or integration.

Procurement Guide: Buying Diesel NOx Sensors for Business Needs

Strategic methods to buying, particularly for components like the Diesel NOx sensor, can cut costs by a large amount while also making the supply chain more reliable and better relationships with vendors. Businesses can get the most out of their sensor buying plans by learning about the different ways to buy sensors, how much they cost, and how to negotiate.

Purchasing Channels and Cost Considerations

Using more than one way to buy something can be helpful based on the amount needed and the time frame. Online platforms make it easy to find a wide range of sellers with clear, reasonable prices. Direct relationships with manufacturers allow for bulk discounts and custom solutions. Distribution networks help people in the same area and can get new parts to people faster when they need them.

Cost factors include more than just unit price. They also include shipping operations, the cost of keeping supplies, and warranty support. The cost of replacing parts for common commercial cars varies a lot. For example, sensors for the Ford F-250 can cost anywhere from $150 to $400, based on the specifics and the source chosen. When you buy in bulk, you can save 15 to 25 percent on costs while keeping quality standards high.

Warranty Terms and Support Considerations

When buying something, warranty coverage is an important thing to think about because it affects the total cost of ownership and business risk. Standard guarantee terms are between 12 and 24 months, but some high-end sellers offer longer coverage for customers who buy a lot. To give full security, the warranty should cover both manufacturing flaws and situations that cause the product to fail before it should have.

Different providers offer very different levels of after-sales support, which affects the availability of troubleshooting help and expert advice. Strong technical support teams from suppliers can cut down on startup time and problems with compatibility. Think about providers who offer installation guides, testing instructions, and troubleshooting tips to help maintenance teams.

Negotiation Strategies for Bulk Orders

When negotiating a bulk purchase, the overall value should be the main point of discussion, not just the unit price. Making a volume promise can give you access to better price tiers, priority placement during times of limited supply, and faster technical help. Setting up yearly buy deals lets you plan ahead for costs and guarantees a steady supply of goods.

Negotiating payment terms can help with managing cash flow, especially for businesses that are only open during certain times of the year or for specific projects. There may be financial benefits in extending payment terms, getting savings for paying early, or setting up exchange arrangements. Long-term relationships with suppliers based on mutual gain and regular contact usually lead to better prices and service than one-time purchases.

Future Trends and Innovations in Diesel NOx Sensor Technology

Emission rules are getting stricter around the world, which is accelerating the development of nitrogen gas sensing technology, including the Diesel NOx sensor. Businesses can make smart choices about which technologies to use and which suppliers to work with if they know about new trends and plan for what the future will need.

Current Limitations and Emerging Solutions

Existing sensor technology has a number of problems that keep people working to make it better. Low NOx amounts make measurements less accurate, especially when the system is idle or not under a lot of load. Because of the short life span of parts in harsh settings, they need to be replaced more often, which raises the cost of upkeep and makes operations more difficult.

New technologies that use better materials science and more advanced tracking methods are starting to get around these problems. Compared to traditional ceramics, silicon carbide parts are better at staying stable at high temperatures and resisting chemicals. Integrated digital tools allow predictive maintenance, which helps decide when to replace parts and cuts down on breakdowns that come up out of the blue.

Regulatory Influence and Technology Adoption

Tougher pollution rules in big markets speed up the industry's acceptance of new technologies. The Euro VII rules call for stricter NOx limits and more tracking, which increases the need for sensors with better features. The EPA's Tier 4 guidelines are still changing so that they take into account how emissions work in the real world as well as lab tests.

These changes to the rules affect how technologies are developed and when they are introduced to the market. When manufacturers invest in new sensor technologies, they set themselves up well for future safety rules. When buying teams understand legal roadmaps, they can choose suppliers that will meet their needs in the future and avoid risks of obsolescence.

Preparing for Market Changes

Businesses can get ready for changes in the market by teaming up with new makers who are dedicated to research and development. Looking at how much a provider invests in next-generation technologies can help you figure out your long-term success and ability. Think about sellers who let you talk about their technology roadmaps and get early access to new goods.

When planning for a technology shift, it's important to find a balance between costs, dependability, and adopting new technologies. Gradual application methods let you do a full review while keeping things running smoothly. New technologies can be tested in pilot projects with a small group of providers before they are used on whole fleets or production lines.

Conclusion

Diesel NOx sensors are an important part of modern emission control systems. They help makers and fleet operators follow strict environmental rules while keeping operations running smoothly. Knowing what they do, how to choose them, and how to buy them gives businesses the power to make smart choices that balance performance, dependability, and cost. As technology changes and rules get stricter, smart relationships with suppliers and preventative maintenance programs will give businesses an edge in a market that is becoming more complicated.

FAQ

Q1: How often should NOx sensors be replaced in commercial vehicles?

A: Depending on how the car is used and the quality of the sensors, they usually need to be replaced every 100,000 to 200,000 miles. Heavy-duty uses, like building or mining, may need to be replaced more often because of the harsh climate and the chance of contamination.

Q2: What performance differences exist between OEM and aftermarket sensors?

A: OEM sensors usually work well and are assured to be compatible, but they cost 20–30% more than good aftermarket options. Premium aftermarket sensors work 85–90% as well as OEM sensors, but they are cheaper for businesses that are trying to stick to a budget.

Q3: What early warning signs indicate potential sensor failure?

A: Check engine lights that stay on, bad gas mileage, engine power loss, and DEF system alarms are all common signs. Diagnostic trouble codes P2201, P2202, and P229F all point to problems with the NOx sensor circuit that need to be fixed right away.

Q4: Can NOx sensors be cleaned or must they be replaced?

A: Basic cleaning on the outside can get rid of surface dirt, but once the inside of the sensor has been damaged, it can't be cleaned properly. If you try to clean the inside of a sensor, you usually mess up the setting and make it less accurate, so replacing it is the best option.

Q5: What factors affect NOx sensor lifespan most significantly?

A: The main things that affect how long a sensor lasts are the quality of the fuel, how well the engine is maintained, the working surroundings, and how well it was installed. Bad fuel and imperfect burning make it easier for contaminants to build up, which shortens the life of sensors.

Partner with Qintai for Premium Diesel NOx Sensor Solutions

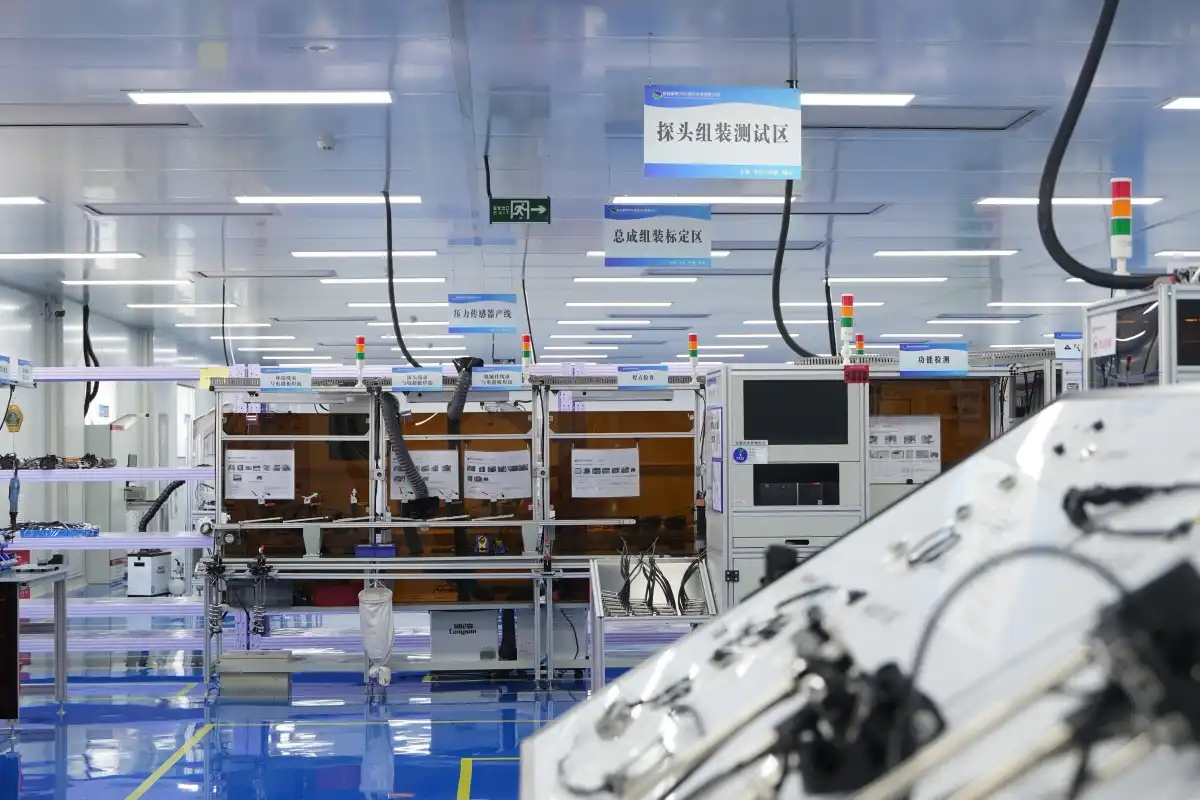

Qintai has been a leader in the diesel NOx sensor technology business for more than twenty years, and their research and manufacturing skills are second to none. As China's top original equipment manufacturer (OEM) provider, we work with companies like Weichai Power, Yuchai Power, and Quanchai Power to offer complete sensor systems that meet strict emission standards in markets around the world. Our ISO9001 and IATF16949-certified facilities guarantee consistent quality, and our 58 invention patents show that we are committed to continuing to come up with new ideas.

Qintai's independent research and development (R&D) and flexible production methods make sensors that work better than expected, whether you need standard configurations or custom solutions. Our full range of OEM and ODM services support projects from the first planning phase through mass production, making sure they work perfectly with your uses. Get in touch with our expert team at info@qt-sensor.com to talk about your diesel NOx sensor needs and find out how Qintai's reliable products and low prices can improve your emission control systems.
