Are Ceramic Pressure Sensors Better Than Silicon Pressure Sensors?

When procurement managers and R&D engineers ask whether ceramic pressure sensors outperform silicon alternatives, the answer depends on your specific application requirements. Ceramic pressure sensors excel in harsh industrial environments requiring durability, chemical resistance, and long-term stability—qualities essential for diesel engine aftertreatment systems, hydraulic machinery, and generator sets. Silicon sensors, while offering excellent precision in controlled conditions, often fall short in aggressive environments. Understanding these material differences helps industrial buyers optimize sensor selection for reliability, regulatory compliance, and total cost of ownership.

Introduction

Pressure sensors are an important part of modern industrial monitoring and control systems. They have a direct effect on how well operations run, how safe they are, and how much it costs to maintain. Choosing between ceramic and silicon sensor technologies has big effects on how well equipment works and how much money it makes in the long run. This in-depth study contrasts ceramic and silicon pressure sensors in important ways, including their material qualities, performance, ability to withstand harsh environments, and fitness for use in industry.

This guide was made just for people who buy and sell goods between businesses, are expert managers, or make decisions about the supply chain in the heavy machinery, diesel engine making, and aftertreatment system integration sectors. Our goal is to give you useful information that will make evaluating suppliers easier, help you meet emission standards like EPA Tier 4 and Euro VI, and help you get the best deals on sensors so that your business can benefit in real ways.

Understanding Ceramic and Silicon Pressure Sensors

The main difference between these technologies is the type of sensing element they use and how they are made. A 96% Al2O3 alumina ceramic diaphragm and thick-film piezoresistive technology are used in Ceramic Pressure Sensors to make a chemically inert and mechanically strong sensing element. When pressure changes the shape of the ceramic membrane, resistors inside it change their electrical resistance in a way that can be measured. This building is naturally resistant to rusting from harsh substances like truck exhaust gases, hydraulic fluids, and industrial chemicals.

Material Science Behind Performance Differences

Silicon sensors use single-crystal semiconductor wafers with piezoresistive elements that are spread out or implanted. Precise micromachining is used to make these sensors very sensitive. At least in the lab, this gives better resolution, but silicon's physical properties make it less resistant to chemicals and heat. The semiconductor material combines with some process media and breaks down more quickly when heated and cooled many times, which happens a lot in diesel engines.

Operational Lifespan and Reliability

Ceramic sensors can work for more than 10 years on average in tough settings, while silicon sensors usually need to be replaced every 18 to 36 months. Ceramic is stable at high and low temperatures (-40°C to 135°C) and can't be damaged by chemicals, which is why it lasts so long. When procurement teams look at the total cost of ownership, they have to weigh the higher initial costs of ceramic sensors against the lower number of replacements needed and the time lost for maintenance.

Performance Comparison: Ceramic vs Silicon Pressure Sensors

To judge the performance of a sensor, you have to look at a number of interconnected factors that, when added together, tell you if it's ready for commercial use. We looked at how well each technology works on important measurement criteria that are used in diesel engines and heavy machinery.

Accuracy and Measurement Stability

Ceramic Pressure Sensors, such as the Qintai QS-P105 model, are very accurate, with a full scale error of only 0.5% and non-linearity limited to 0.3% FS across pressure ranges from vacuum (-1 bar) to 600 bar. In ideal situations, silicon sensors can meet slightly tighter uniformity requirements (±0.1% FS), but this benefit fades quickly in real-world settings where there is shaking, temperature change, and media contamination. Temperature-induced zero drift is another important factor. Ceramic sensors keep <0.03-0.05% FS/°C drift, which means that readings stay the same even when the engine or hydraulic system goes through thermal cycling.

Durability in Demanding Environments

The 96% alumina ceramic design gives it great mechanical strength and resistance to wear from gritty particles in hydraulic circuits and exhaust streams. Pressure pulses can wear down metallic diaphragm sensors, but ceramic membranes can handle 200% full-scale overload without lasting damage or calibration change. This toughness is very useful in places where pressure spikes happen a lot, like on construction and farming equipment.

Environmental Resistance Capabilities

In diesel aftertreatment systems, where sensors come into contact with urea solution (AdBlue/DEF), exhaust condensate, and combustion byproducts, their longevity depends on how well they work with chemicals. Because ceramic is neutral, it doesn't have the electrochemical corrosion and media mismatch problems that metal and silicon sensors do. Moisture getting into silicon devices is a common way for them to break, but ceramic sensors don't have this problem because they are better at closing and don't let moisture in.

Industrial Applications and Suitability

Different industrial settings need sensors with certain properties. Choosing the right material is therefore more of a strategy choice than a simple matter of replacing parts. Understanding the specific needs of an application helps buying teams match the skills of sensors to the needs of operations.

Diesel Engine and Aftertreatment Systems

Selective Catalytic Reduction (SCR) and Diesel Particulate Filter (DPF) systems need pressure sensors that can handle being exposed to exhaust fumes up to 600°C, urea deposits that are very corrosive, and high levels of shaking. Ceramic sensors are able to handle these problems while still being accurate enough to meet emission control standards. With its wide pressure range (-1 to 600 bar) and flexible power supply (2-30 VDC), the QS-P105 model can be used with a wide range of engine architectures, from light commercial vehicles to heavy mining equipment. In these situations, silicon sensors can't keep their calibration stable, which causes emission control to fail and guarantee claims.

Hydraulic and Pneumatic Systems

For safety interlocks and better performance, construction gear, farm equipment, and industrial presses all need accurate hydraulic pressure tracking. Ceramic sensors are small enough to fit in manifolds with limited space, and their strong construction means they can handle pressure spikes and fluid contamination. The 11 kΩ bridge resistance gives a great signal-to-noise ratio even in places with a lot of electrical noise, like around diesel engines and electric motors.

Generator Sets and Power Generation

Backup power systems and main power generators in mines, data centers, and factories need sensors that don't need to be serviced for decades. Ceramic Pressure Sensors that watch over fuel, coolant, and lubricating oil systems give vital infrastructure the industrial-grade dependability it needs. Even though they don't operate very often and are stored for long periods of time, which can cause drift in silicon devices, their performance stays the same.

Procurement Considerations for B2B Buyers

When buying sensors strategically, you have to weigh the current cost limits against the value over time, the supplier's skills, and the availability of technical assistance infrastructure. Purchasing managers should look at possible sources in more than one way, not just the price per unit.

Cost-Performance Analysis

Ceramic sensors cost 20–40% more than normal silicon sensors, but the extra money you spend at the beginning pays off because they last longer, need less upkeep, and aren't broken down as often. Find the 5-year total cost of ownership, which includes the cost of replacement parts, the cost of labour, and the loss of production due to sensor failures. In harsh industrial settings, this analysis usually favours ceramic technology, even when budget limits at first point to cheaper options.

Supplier Qualification Criteria

Ceramic pressure sensor makers with a good reputation keep certifications like ISO9001 and IATF16949 for use in cars and explosion-proof certifications like ATEX and IECEx for use in dangerous places. Make sure that the suppliers you're considering have their own research and development departments and can give you technical documents like calibration certificates, data on how well the materials will work together, and results of environmental testing. Qintai Automotive Emission Technology Co., Ltd. Ltd is a good example of this approach because it has 58 invention patents, a wide range of certifications (ISO9001, IATF16949, CMC, Ex, UL, CE, REACH, RoHS), and more than 20 years of experience making sensors for major diesel engine OEMs.

Customization and OEM Integration

Standardised sensors don't always perfectly match the needs of an application. Check to see if the providers are willing and able to change the pressure levels, electrical connections, process fittings, and output signs. Strategic benefits come from OEM relationships with makers that offer design help, prototype improvement, and scaling up production for large volumes. Adjustable factors, such as sensitivity (2–4.0 mV/V range), mounting options, and cable terminations, make it easy to integrate into current equipment designs while improving performance.

Making the Right Choice: When to Choose Ceramic Over Silicon

When choosing a sensor, decision frameworks should put the characteristics of the application environment, performance needs, and expected lifecycle expectations at the top of the list. Ceramic Pressure Sensors are the best option in certain situations that are similar to hard industry realities.

Environmental Condition Assessment

If you need to use ceramic sensors, make sure they can handle temperature changes of more than ±20°C, touch with corrosive or abrasive media, high vibration levels (>5g acceleration), or placement outside where they will be exposed to water. These things quickly hurt the performance of silicon sensors, but ceramic technology keeps up with specifications. These tough conditions are common in diesel engine rooms, hydraulic power units, and industrial process equipment.

Accuracy and Stability Requirements

Ceramic structure is best for applications that need stable tuning over long periods of time without having to be recalibrated. Ceramic sensors keep working the same way over a longer period of time, while silicon sensors may have stricter starting accuracy requirements. This long-term stability is good for monitoring emission compliance, safety-critical control systems, and precise manufacturing processes. Ceramic sensors, like the QS-P105, have an accuracy of ±0.5% FS, which meets most industrial needs and gives them better drift resistance.

Maintenance and Lifecycle Strategy

Ceramic Pressure Sensors are more expensive to buy, but organisations that want to make sure their equipment works well and don't need too much upkeep should choose them. The strong design cuts down on the need for extra parts inventory and makes planning upkeep easier. Aftermarket service providers and fleet operators like how durable ceramic sensors are because they last longer between replacements and cut down on emergency service calls. Ceramic technology is the practical choice, even though it costs more, because equipment used in remote areas or important infrastructure uses can't handle sensor failures that happen often.

Conclusion

When used in industrial settings with harsh conditions, long service needs, and high reliability standards, Ceramic Pressure Sensors outperform silicon options in every way. Because ceramic building is better at resisting corrosion, staying stable at high temperatures, and lasting mechanically, it directly leads to lower upkeep costs, more uptime for equipment, and easier compliance with regulations. Silicon sensors are still good for controlled labs and consumer electronics, but industrial procurement teams that work with diesel engine makers, aftertreatment system integrators, and heavy machinery sectors get better long-term value by choosing ceramic sensors. Successful buying plans look at the total cost of ownership instead of just the initial price. They also put the technical skills and certifications of the provider at the top of the list, and they take advantage of customisation options to get the best sensor performance for each application.

FAQ

Q1: What pressure ranges can ceramic sensors measure effectively?

A: Piezoresistive ceramic sensors can measure a huge range of things, from systems that need to be in a vacuum (-1 bar) to those that need to be under 600+ bar of pressure. The QS-P105 model can handle pressures from -1/0 bar to 600 bar, which means it can be used to check diesel fuel injection, control hydraulic circuits and regulate pneumatic systems. Custom pressure ranges go up to 1,000 bar for specific uses, showing how flexible ceramic technology is for different types of industries.

Q2: How do ceramic sensors perform in diesel exhaust environments?

A: Ceramic Pressure Sensors work great in diesel aftertreatment because they don't react chemically with exhaust gases, urea solution, or combustion byproducts. The 96% Al2O3 build stops rust that breaks down metal diaphragm sensors, and the -40°C to 135°C temperature range works with the heat conditions in an exhaust system. This longevity makes sure that the SCR and DPF differential pressure monitoring works the same way every time, which is needed to meet EPA and Euro VI emission standards.

Q3: Can ceramic pressure sensors be customized for OEM applications?

A: Leading ceramic sensor makers offer a wide range of customisation options, such as changing the pressure range, the electrical interface (voltage/current output), the process connection threading (NPT, BSPT, metric), and the wire specs. OEM partnerships let designers work together on everything from the prototype to mass production. This makes sure that sensors work well with the layout of the equipment and meet the performance needs of each application.

Partner with a Trusted Ceramic Pressure Sensor Manufacturer

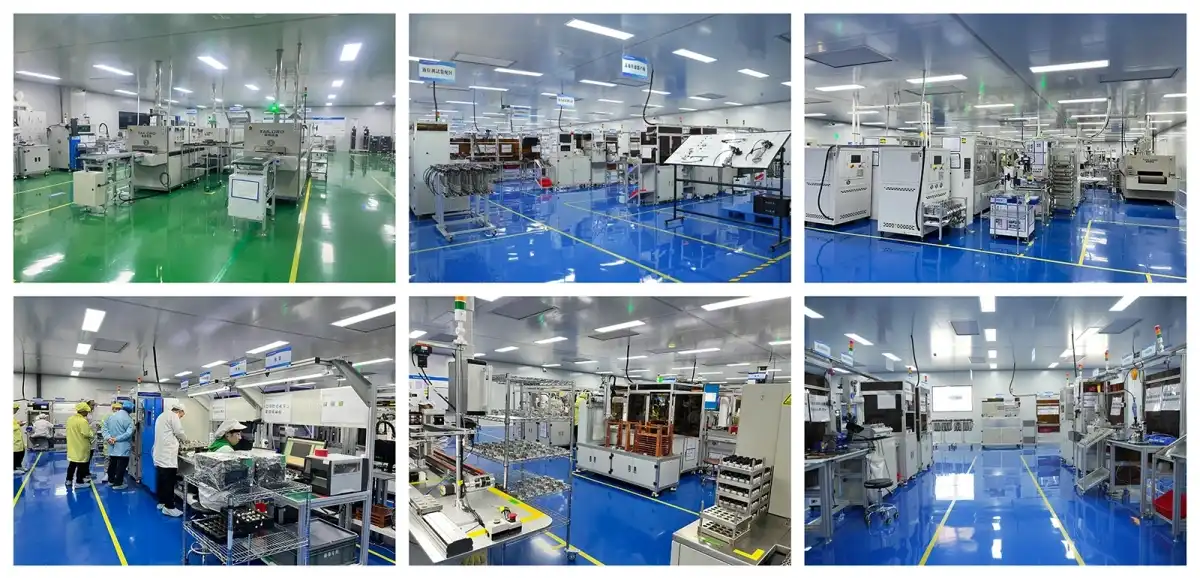

People in business who want to buy tested Ceramic Pressure Sensors with great technical support and top-notch manufacturing will find a strategic partner in Qintai. We've spent more than 20 years perfecting piezoresistive ceramic sensor technology for heavy machinery and diesel engine aftertreatment as China's top supplier to Weichai Power, Yuchai Power, and Quanchai Power.

Our QS-P105 model is a great example of this skill; it's made of 96% aluminium, has an accuracy of ±0.5% FS, and can be configured in any way you want. We give your procurement team the quality assurance and regulatory paperwork they need with certifications in ISO9001, IATF16949, and REACH compliance. Contact our engineering team at info@qt-sensor.com to talk about your application needs, get technical specs, or get price quotes for large orders. Find out why OEMs around the world trust Qintai ceramic pressure sensor suppliers for tracking tasks that are very important.
