How Do NOx Sensors Communicate With Engine Control Units?

NOx sensors communicate with Engine Control Units through sophisticated electrical signals that translate exhaust gas concentrations into actionable data. These sensors use zirconia ceramic cells to detect nitrogen oxide levels and convert them into voltage signals or digital data packets. The ECU receives this information via standardized protocols like CAN bus or LIN, enabling real-time adjustments to fuel injection, exhaust gas recirculation, and DEF dosing in Selective Catalytic Reduction systems. This continuous feedback loop ensures diesel engines meet emission standards while maintaining optimal performance. Understanding this communication pathway helps purchasing managers and R&D engineers select sensors that integrate seamlessly with existing engine management architectures.

​

Understanding NOx Sensors and Their Role in Emission Control

Diesel engines are now subject to stricter rules. For example, EPA Tier 4 Final and Euro VI standards require engines to emit almost no nitrogen oxide. These rules have to be followed by heavy trucks, construction equipment, farm equipment, and generator sets. As the eyes of contemporary emission control systems, NOx Sensors appeared as the technology solution.

With great accuracy, these sensors record levels of nitrogen gas that range from 0 to 2500ppm. Where they are in the exhaust system decides what role they have. Sensors placed upstream, after the turbocharger, measure the raw emissions from the engine, giving us a starting point. Downstream monitors put in place after the SCR catalyst check how well the treatment is working. This makes a closed-loop tracking system that makes sure the rules are followed.

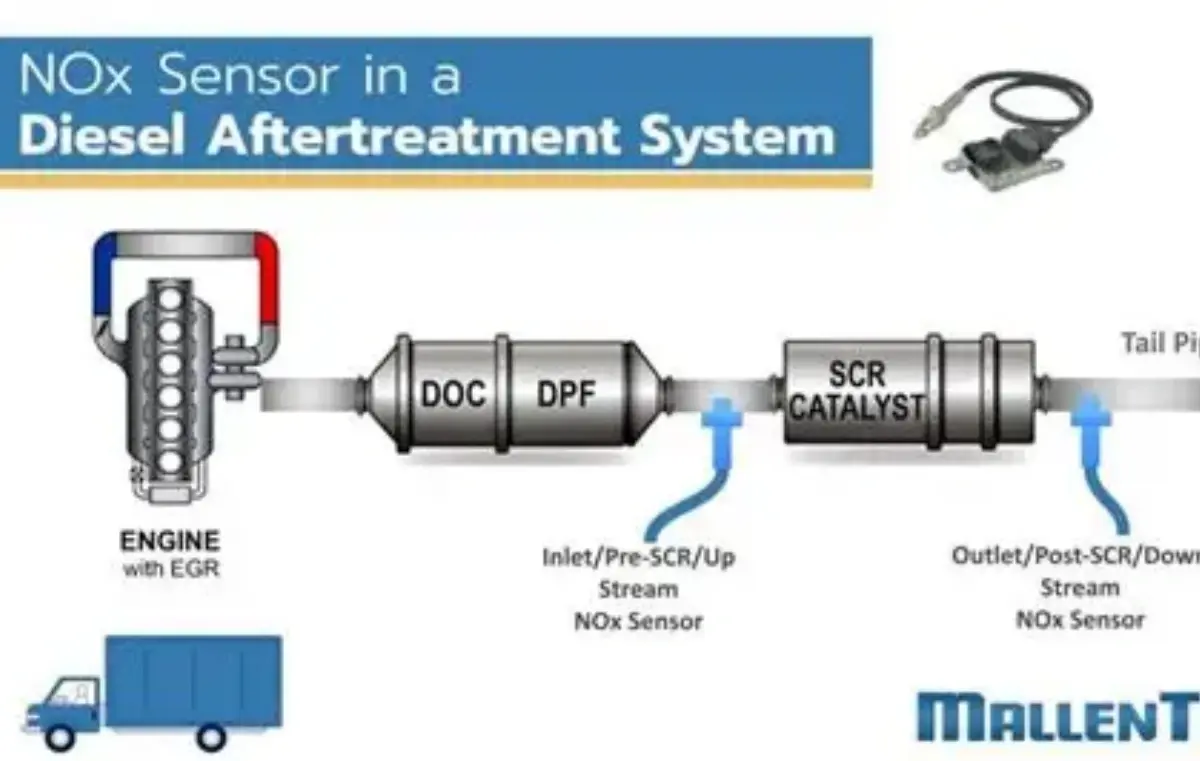

Why Dual-Sensor Configurations Matter?

In modern diesel aftertreatment systems, two devices that detect nitrogen oxide work together. This extra duplication isn't extra; it's necessary. The upstream unit tells the ECU how much NOx the combustion process makes, which lets the ECU do accurate estimates for the DEF input. The unit further downstream makes sure that the chemical reduction did what it was supposed to do. When the secondary monitor picks up high numbers, it means that the catalyst is breaking down, there isn't enough DEF supply, or there are problems with the system that need to be fixed right away.

Sensor Technology Variations

Three main types of sensor technologies are made by manufacturers. Planar designs heat up quickly and have small sizes that make them good for setups with limited room. Amperometric devices are very accurate over a wide range of concentrations. Yttria-stabilized zirconia ceramic used in zirconia-based sensors makes them very reliable in tough exhaust conditions up to 800°C. When evaluating suppliers, procurement teams should make sure that the sensor technology they use fits the needs of the application. For example, mining equipment needs to be more durable than over-the-road trucks.

How NOx Sensors Communicate With the Engine Control Unit?

Emission monitors and engine computers talk to each other through electrical connections that were carefully designed. Technical managers can find suitable parts and solve integration problems more easily if they understand how these communication systems work.

Signal Conversion Process

Electrochemical reactions inside each sensor make electrical outputs that can be measured. The zirconia clay cell can sense things and move air around. The device breaks down nitrogen oxides into nitrogen and oxygen ions when exhaust gas enters the testing box. The monitor then releases oxygen ions, which make a current that is related to the amount of NOx. Before it can be sent to the ECU, this analogue signal needs to be "conditioned."

Modern sensors have control units built in that handle raw data. These modules boost voltages, get rid of noise, and change measurements into common formats. The sensor doesn't just send a voltage spike; it also sends diagnostic data, temperature readings, and updates on the status of the heater.

Communication Protocols Explained

Two main standards control how sensors and ECUs talk to each other. Controller Area Network (CAN bus) is the standard way for cars to talk to each other digitally. On a two-wire network, this multi-master system lets many devices and control units share data. Messages have problem flags, sensor IDs, and data values. The ECU can handle dozens of other inputs and keep an eye on both upstream and downstream sensors at the same time.

For uses that don't need as much power, the Local Interconnect Network (LIN) is a simpler and cheaper option. This single-master protocol only needs one wire plus ground, so it can be used for secondary sensors that don't need a lot of data. Some generator set applications like LIN because it is easy to use and doesn't require as much wiring.

Concerns about compatibility between different engine platforms can be put to rest because Qintai NOx Sensors support more than 300 communication protocols. This freedom gets rid of the problems with integration that purchasing managers have when they have to deal with mixed-fleet operations. Protocol compatibility makes sure that data can be sent and received without any problems, whether you are updating older equipment or building a new system.

Real-Time Data Processing

The ECU gets information from sensors more than ten times a second. This high-frequency connection lets the exhaust system respond quickly to changes. When the upstream monitor sees that NOx levels are going up during heavy load operation, the ECU changes the DEF input rates right away. The sensor further downstream confirms functionality within milliseconds, making a dynamic control system that acts faster than mechanical ones.

Specifications for response times are very important here. Sensors with response times less than 1400ms let the ECU fix problems before they cause too many emissions. When sensors are slower, there is a delay between detection and correction, which could allow short trips beyond regulatory limits during transient operation.

​

Diagnosing and Troubleshooting NOx Sensor Communication Issues

When NOx Sensors and ECUs can't talk to each other, it can lead to practical problems like annoying warnings or the engine having to derate. Setting up organised ways to diagnose problems cuts down on downtime and fix costs.

Common Failure Symptoms

The most clear sign of sensor transmission problems is the presence of engine warning lights. The ECU constantly checks sensor signals and sends out diagnostic trouble codes when it finds problems. During tests, abnormal emissions can be seen as actual proof of measurement errors. Fuel consumption often goes up when sensors don't work right because the ECU falls back on safe working maps when it can't get accurate emission data.

Fleet managers say that when sensors fail, DEF use patterns change in a noticeable way. If the upstream sensors don't work right, the system may pump too much urea, or if the downstream sensors give false "clean" readings, it may not treat enough fumes. Either option loses money and time and could lead to fines from the government.

Structured Troubleshooting Approach

Technicians should start the diagnostic process by using OBD-II equipment to look for error codes. These days' ECUs keep a lot of fault data, like the state of sensor circuits, numbers that are too high or too low, and communication timeouts. Instead of leaving you to guess, these codes point you to specific failure modes.

The next step is to check the sensor output. Measurements taken with a multimeter at the sensor connector show that the voltage source and signal output are working properly. For heaters and circuits to work, sensors need constant 9–32V power. Intermittent breakdowns that are hard to figure out are caused by weak battery power or corrosion on the connections.

Wiring inspection reveals many problems invisible to electronic diagnostics. Electronic tests can't see all the problems that can be found by inspecting the wiring. Over time, the vibrations from the exhaust system hurt the cables, which leads to short circuits or open connections. The temperature range of the cable is important. Regular car wire breaks down in places where Qintai sensors with cable ratings from -40°C to 200°C work effectively.

Preventive Maintenance Protocols

Communication problems can be avoided with proactive repair. On a regular basis, inspections should check the connecting seals for water leaks, the cable route for rough spots, and the mounting threads for looseness. Quality sensors are sealed and waterproof to keep them from getting dirty, but no seal lasts forever in heavy-duty cycles.

Using known gas concentrations for calibration checks makes sure that measurements are accurate. Sensors that are poisoned by lead or sulphide gradually lose their sensitivity and give numbers that are too low. The improved poisoning resistance of Qintai makes testing intervals longer, which lowers the cost of upkeep labour. The 6000-hour service life is longer than the industry standard, which means that fewer sensors will need to be replaced over the life of the equipment.

Selecting the Right NOx Sensor for Your Business Needs

When making a procurement decision, you have to weigh the short-term costs against the long-term benefits of reliability and compliance. Technical details are important, but so are the skills and facilities of the provider.

Critical Evaluation Criteria

Accuracy of measurements has a direct effect on compliance margins. When it comes to low concentrations, sensors with an accuracy of ±10ppm are better than devices with an accuracy of ±20ppm. It's important to look closely at the accuracy claims for the whole measurement range, since some sensors are only accurate in certain narrow bands.

Total cost of ownership is based on how long something lasts. Aftermarket NOx Sensors that are priced reasonably often break down too soon in tough industrial settings. Industrial-grade devices are different from automotive-grade ones in the temperature ranges they can work in, how well they handle vibrations, and how well they handle contamination. Generator sets used in mines or backup power installations need sensors that can handle being exposed to high temperatures all the time.

OEM Versus Aftermarket Considerations

Original equipment maker sensors promise compatibility, but they cost a lot. When buying in bulk, OEM relationships may make sense for large fleets or production runs. Aftermarket alternatives promise to save money, but they come with risks of not working with other products and could cause problems with warranties.

Good aftermarket providers fill in this gap by making sensors that work with most OEM goods. Integration worries are taken away by the fact that the product looks good and works with a lot of different interfaces. It also offers industrial-grade durability at a reasonable price. This method works well for aftermarket dealers and repair shops that want to keep an inventory that works with a lot of different brands of equipment at a low cost.

Evaluating Supplier Capabilities

In addition to the sensor itself, the qualifications of the seller affect the choice to buy. The ISO9001 and IATF16949 certifications show that quality control is being used in production. Following the rules for REACH and RoHS makes sure that environmental laws are followed. Products that have certifications like CMC, Ex, UL, and CE show that they meet safety and performance standards in all international markets.

Innovation spending can be seen in patent collections. Suppliers with a lot of idea patents usually know more about engineering than simple resellers. Independent R&D skills allow for customisation and quick responses to new needs.

When processes are scaled up, production ability is important. The biggest NOx Sensor OEM supplier in China works with big brands like Weichai Power, Yuchai Power, and Quanchai Power, which make a lot of products. This size lets prices be cheap without lowering the quality.

Support after the sale is what sets trustworthy partners apart from transactional sellers. Help with technical issues that come up during merging, quick troubleshooting tips, and timely warranty service all help to keep operations running smoothly. When suppliers keep stock on hand, they can deliver quickly, which cuts down on equipment downtime during sensor replacements.

Future Trends and Optimizing NOx Sensor-ECU Integration

Tougher rules and digitalisation trends that are changing how industrial equipment is managed are pushing emission control technology to keep changing.

Emerging Technologies

Smaller NOx Sensors can now be installed in places where standard designs wouldn't have worked before because of limited room. Advanced materials and manufacturing methods keep accuracy while lowering size, so smaller form factors don't affect performance.

Digital signal processing makes measurements more accurate and less affected by noise. Microprocessors in modern devices handle raw sensor data using complex algorithms, removing short-term spikes and adjusting for effects of ageing. These smart sensors make it easier for the ECU to process data while also making it better.

The invention of wireless transmission has changed everything. Getting rid of actual wires makes installation easier, lowers the risk of failure, and lets you place sensors in different places. Wireless sensors that are powered by batteries are good for retrofitting situations where running new cables wouldn't work. While this technology is still new, prototypes show that it could work for some uses.

IoT Integration and Predictive Maintenance

Connectivity platforms collect sensor data from entire fleets, which makes predictive analytics possible that wouldn't be possible with separate equipment. When cloud-based systems look at sensor performance trends, they can see when sensors are slowly losing their abilities before they break. Maintenance teams get tips that tell them to change parts before they break down, during regular service, instead of waiting for an emergency.

These systems connect data from sensors to information about how much fuel was used, how the vehicle was used, and its maintenance history. Machine learning systems look for trends that can tell you when a part will break, which helps with planning and keeping track of parts. Large groups, where small gains in efficiency add up to big savings, see even bigger economic benefits.

Sustaining Long-Term Performance

Regular calibration keeps measurements accurate for as long as the sensor lasts. Verification against reference gases once a year finds drift that needs to be fixed. Stable sensors last longer, which lowers the number of times they need to be calibrated and the labour costs that come with it.

When ECU software is updated, communication methods or diagnostic limits are sometimes changed. Keeping sensor software compatible stops them from becoming obsolete and makes sure they will still work as engine control systems change. Suppliers that offer long-term software help protect the money you spend on tools.

Strategic relationships with suppliers provide long-term benefits that go beyond the original transactions. Collaborative partnerships allow for joint growth that meets new needs, top support in times of crisis, and good terms that show mutual dedication. These partnerships work best with suppliers that have been stable and present in the market for a while. For example, companies that have been around since 2001 and have clear growth paths offer continuity that newer companies don't have.

​

Conclusion

Modern diesel pollution control is based on making sure that nitrogen oxide monitors and engine control units can talk to each other well. Understanding how signals are converted, how they are communicated, and how to diagnose problems gives purchasing managers and engineers the power to choose the right sensors and keep the system running smoothly. Quality NOx Sensors with fast response times, long service lives, and flexible protocol options lower the total cost of ownership while making sure they meet legal requirements. Companies that choose suppliers with strong engineering skills, a wide range of certifications, and a strong support system will be successful in the long run, even as emission standards get stricter and technology improves. IoT connectivity and predictive analytics will change the way maintenance is done, and companies that work with new sensor makers will be rewarded for being forward-thinking.

FAQ

What voltage do NOx sensors require for operation?

Modern NOx Sensors get their power from the car's electrical system and work with 9–32V DC. This wide voltage range allows for voltage changes when the engine starts up and when the load changes. This power goes to the sensor's internal heaters, which keep the zirconia ceramic at the best temperature for working, and to the signal shaping electronics. A stable voltage source is necessary for accurate readings, since voltage drops below the required level can damage sensors and set off diagnostic codes.

How long does a typical NOx sensor last in heavy-duty applications?

Industrial-grade sensors designed for heavy-duty diesel applications typically achieve 6000 operating hours before requiring replacement. This lifespan is based on the idea that the machine is used normally, with no major damage or contamination. Over-the-road trucks averaging 500 engine hours monthly would replace sensors every twelve months, while stationary generator sets with continuous operation might require replacement after eight months. Quality sensors with advanced poisoning resistance extend intervals by maintaining accuracy despite exposure to harmful exhaust contaminants.

Can I use aftermarket sensors with OEM engine control units?

Compatibility depends on the aftermarket sensor's design and the ECU's requirements. High-quality aftermarket sensors engineered to match OEM specifications integrate successfully when they replicate electrical interfaces, communication protocols, and physical mounting. Problems arise when sensors use incompatible signal formats or incorrect connector pinouts. Reputable aftermarket suppliers provide compatibility guides matching sensors to specific engine models. Verifying protocol support and obtaining technical specifications before purchase prevents costly compatibility issues.
