How Does a NOx Sensor Measure Emissions?

The NOx Sensor uses yttria-stabilized zirconia ceramic cells in a complex electrochemical process to measure nitrogen oxide emissions. When waste gas comes into the sensor, oxygen pump cells first keep the amount of oxygen stable. The detecting chamber then breaks down nitrogen oxides into nitrogen and oxygen ions using a catalytic process. This creates an electrical current that is related to the amount of NOx present. This exact measurement lets engine control units change the factors of combustion and the rates at which diesel exhaust fluid is injected. This makes sure that EPA and CARB pollution standards are met for heavy-duty diesel uses.

​

Understanding NOx Sensors and Their Role in Emission Measurement

Nitrogen emissions are very bad for the atmosphere and for people's health. When combustion temperatures go above 2,500°F, which happens a lot in diesel engines that power big trucks, building equipment, and generator sets, these gases are released. Modern emission rules, like the EPA 2010 guidelines in the US and similar rules around the world, require close tracking and lowering of these pollutants.

The Chemical Nature of NOx Gases

Nitric oxide (NO) and nitrogen dioxide (NO2) make up most nitrogen oxide molecules. When airborne nitrogen mixes with oxygen at high temperatures, these dangerous emissions are made. Diesel engines can put a lot of pollution into the air if they are not properly controlled. This can cause smog and breathing problems.

Why Accurate Measurement Matters for Compliance?

Following the rules means more than just dodging fines. Purchasing managers and research and development experts are under more and more pressure to meet emission standards while keeping engine performance and fuel efficiency high. Accurate measurement is the basis for successful emission control methods, especially when using Selective Catalytic Reduction (SCR) systems that need accurate data to work at their best.

Distinguishing NOx Sensors from Related Technologies

A lot of people get oxygen sensors or catalytic converters mixed up with nitrogen oxide monitors. Oxygen sensors check the amounts of air and fuel to make sure that combustion works as efficiently as possible, and catalysts help chemical processes happen that get rid of pollution. NOx Sensors have a specific function: they measure the amount of nitrogen oxide in air streams in real time. This information is used to make changes to the SCR system, which makes sure that the right amount of Diesel Exhaust Fluid (DEF) gets to the catalyst for the best reduction efficiency. Technical managers can choose the right parts for integrating an aftertreatment system when they know about these changes.

How Does a NOx Sensor Work?

Advanced materials science and precise electronics are used together to make nitrogen oxide detection work. Modern sensors are made with multiple chambers that work accurately even when the exhaust temperature and flow rate change.

Electrochemical Operating Principles

The idea behind NOx Sensor technology is that oxygen ions can move through solid electrolyte materials. The detecting element has several zirconia ceramic cells that work one after the other. The oxygen pump cell adds or removes oxygen ions to keep the environment under control. Usually, it keeps the oxygen level between 0.2% and 0.5%. Changing oxygen amounts in raw exhaust gas won't cause any problems because of this rule.

Once the oxygen level is stable, exhaust moves into the NOx sensing box. In this case, NOx emissions are broken down by a special electrode. The oxygen ions that are released create an electric current (measured in nanoamperes) that is directly related to the amount of NOx present. In the important 0-100ppm range, where compliance margins are still tight for many uses, Qintai sensors can measure with an accuracy of ±10ppm.

Strategic Placement for Optimal Accuracy

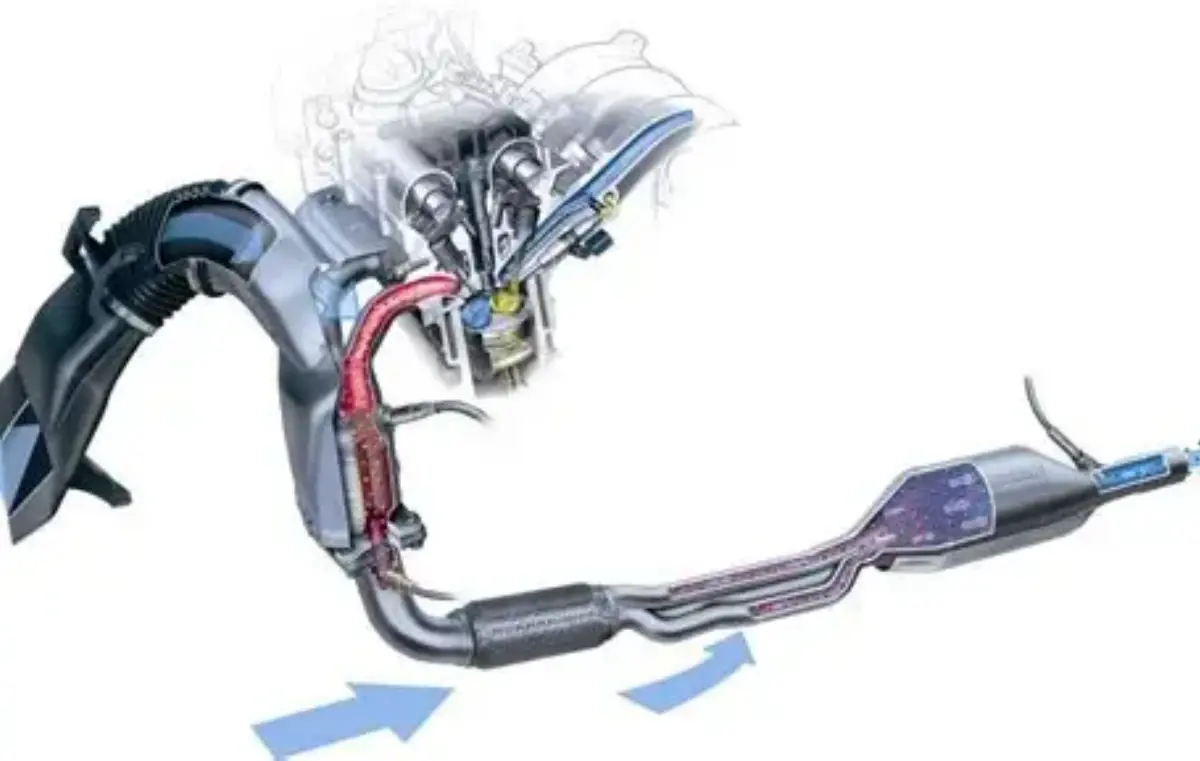

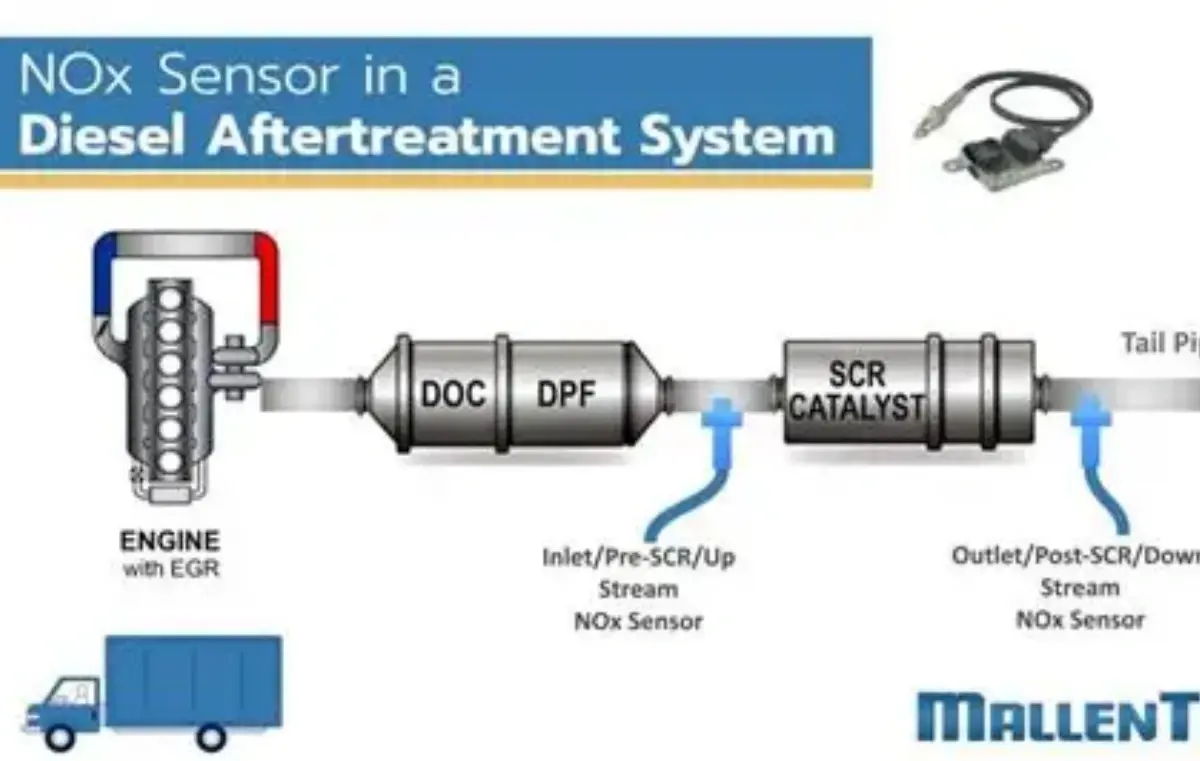

The position of the installation has a big effect on how reliable the measurements are. These days, most aftertreatment systems have two types of sensors: upstream sensors measure the raw emissions from the engine before the SCR catalyst, and downstream sensors check the reduction efficiency after the catalyst. This set of two sensors makes a return loop that lets the engine control unit (ECU) figure out how much DEF to use and make sure the system is working right. Upstream positioning usually takes place near the turbocharger exit, where temperatures of the exhaust run from 400°F to 1,200°F. Sensors further downstream work in slightly cooler temperatures, usually between 300°F and 900°F. Both places need to let enough flow through while keeping temperature shock and shaking damage to a minimum.

Integration with Engine Control Systems

Specialised wire harnesses connect the electrical information from the sensing parts straight to the ECU. These data are changed from analogue to digital and then processed using formulas that take into account cross-sensitivity factors, temperature compensation, and how sensors age. Processing speed is very important. Qintai sensors have reaction times of less than 1,400ms, which lets them quickly adapt to changing engine loads and conditions.

When an upstream monitor sees high amounts of nitrogen oxide, the ECU raises the rate of DEF injection by the same amount. The sensor further downstream then checks the efficiency of the decrease. As long as readings show that there isn't enough conversion, the system either changes the dose or sends out diagnostic codes to let workers know about possible catalyst degradation or DEF quality problems.

Common Faults and Diagnostic Approaches

Sensor decay shows up in a number of ways. Signal drift happens when sensor elements pick up deposits from using dirty fuel or oil, which makes them less accurate over time. When heater circuits fail, sensors can't reach their ideal working temperatures, which are usually around 1,200°F. This can lead to results that aren't accurate or no signal at all. Damage to the wiring harness from heat, vibration, or water can cause periodic problems that make it hard to figure out what's wrong.

The first step in the diagnostic process is to use OBD-II tools to look for trouble codes. Code patterns show specific types of failures. For example, P2201 means problems with the sensor circuit upstream, while P229F means numbers that don't make sense when the load is high. Voltage checking at the connector makes sure that the power source is working and that the heater is working. When you compare readings from upstream and downstream during steady-state operation, you can see how well the catalyst is working and find the broken parts.

Instead of waiting for sensors to completely stop working, maintenance teams should keep an eye on how they're doing over time. Gradual rises in DEF use or rising backpressure readings are often signs that problems are getting worse. Taking care of these early warning signs keeps you from having to make expensive emergency fixes and keeps you in line during roadside checks.

​

Choosing the Right NOx Sensor for Your Fleet or Production Line

When making a buy choice, you have to weigh more than just the initial purchase price. The total cost of purchase includes things like dependability, service life, compatibility, and the infrastructure for assistance. When choosing for different uses, keep the following things in mind.

OEM Versus Aftermarket Options

Original Equipment Manufacturer (OEM) sensors are certified to work with other devices and come with a protection, but they cost a lot. When you buy from a good maker, aftermarket alternatives can save you money—sometimes 30–50% below OEM prices—while still giving you the same level of performance. As the top OEM provider to Weichai Power, Yuchai Power, and Quanchai Power, Qintai shows that high-quality aftermarket sensors can meet or beat original specs.

Technical managers looking at aftermarket options should make sure that the companies that make the parts are certified. Products that meet the quality standards set by IATF 16949 and have the right environmental approvals (REACH, RoHS) make sure that the production process is consistent and that the materials are safe. It's not just about mounting that needs to be compatible; electrical connections need to work with the same ECU communication methods, and measurement areas need to match the emission features when the engine is off.

Key Selection Criteria for Different Applications

Heavy truck teams that work in harsh conditions need sensors that are more resistant to poisons and can handle a wider range of temperatures. Construction equipment often works in dirty places and goes through changes in temperature, so it needs to be able to withstand vibrations and strong seals. Continuous duty cycle generator sets need sensors that last a very long time. Qintai sensors rated for 6,000 hours of operation are longer than what the industry standard is, so they don't need to be replaced as often and don't cost as much in downtime.

Practical things like cable length and connection style are often forgotten when specifications are being made. Standard setups work well for many installations, but custom wire lengths get rid of the need for splicing or extension leads, which can be weak spots. As part of Qintai's customisation options, connectors can work with most OEM products, which makes retrofitting easier and cuts down on installation time.

Bulk Purchasing Considerations

NOx Sensor procurement on a large scale makes things more complicated. The cost of keeping stock in check is weighed against the chance that production will be held up because of a lack of stock. These worries can be lessened by setting up vendor-managed inventory deals with providers who can deliver quickly. Supply chain managers should look at how well a seller handles logistics, especially for foreign shipments that need paperwork to clear customs and make sure they are following the rules.

Different suppliers have very different price systems for volume orders. In addition to unit cost, you should also talk about warranty terms, expert help, and return policies. Building long-term relationships with makers that offer engineering consulting services is helpful because it allows for application-specific optimisation and troubleshooting when problems appear.

For OEM uses, quality stability across production runs is very important. Manufacturers who use statistical process control and test every product at the end of the line can be sure that it will work as expected. By asking for production test data and quality certifications for every package, you can be sure that the sensors meet the requirements. The ISO 9001 and CMC certificates that Qintai has show that they use systematic quality control methods to make sure that each batch is the same.

​

Maintenance, Cleaning, and Troubleshooting of NOx Sensors

When NOx Sensors are properly maintained, they last longer and keep their accuracy throughout their working time. Even though sensors don't have any user-serviceable parts on the inside, regular maintenance and replacements keep the system working well.

Service Intervals and Inspection Protocols

Manufacturers usually say that vehicles should be inspected every 12 months or 100,000 miles for highway use, and more often for heavy duty use. A visual exam looks for harm to the parts, corroded connectors, and wire chafing. Monitoring diagnostic data shows that performance is getting worse before it fails completely. Growing differences between upstream and downstream numbers or longer light-off times are signs of problems that need to be fixed.

Cleaning Methods and Precautions

Cleaning nitrogen oxide sensors usually doesn't help them work better than cleaning oxygen sensors. The intricate interior structure and fragile ceramic elements make deep cleaning impossible and possibly harmful. Using compressed air and an electrical contact cleaner, the sensor body and junction area should be cleaned from the outside to get rid of loose debris and road dirt. Stay away from chemicals and rough materials that could damage the seal. When sensors show signs of pollution, like responding slowly or not being accurate as well, it's usually cheaper to replace them than to try to clean them. Deposits from bad fuel, using too much oil, or DEF crystallisation get into the internal cylinders and forever lower performance. Fixing the problems at their source keeps new sensors from breaking down too soon.

Diagnostic Techniques for Common Issues

Systematic fixing is done in a way that makes sense. Check that the basic electrical standards are met, such as the right input voltage (9–32V for Qintai sensors), that the ground connections are still good, and that there are no short circuits. Measurements of the heater circuit resistance make sure that the element is working properly. Depending on the type of sensor, the specs usually run from 2 to 10 ohms. Testing the signal strength during action shows if it is working or not. Most monitors send out voltage signals (0–5V) or current signals (0–20mA) that are related to the amount of NOx they detect. By comparing these results to known exhaust conditions, like high-load acceleration that causes high emissions, the sensor reaction is proven to be correct. Frozen data or numbers that don't make sense are signs that a sensor is broken.

Temperature-related problems are hard to figure out. Before giving correct readings, sensors must hit their working temperature. Long times of darkness suggest that the heater circuit is breaking down or that there isn't enough power. Qintai's quick startup technology, which achieves light-off in less than 165 seconds, sets a standard for performance. Sensors that need much longer to warm up need to be replaced.

Installation Best Practices

Replacement processes need careful attention to detail. Specifications for thread contact force keep mounting bosses from getting damaged and make sure that the seal works right. Anti-seize substances that can handle high temperatures make removal easier in the future, but they should only be used in small amounts so they don't contaminate the detecting element. Connector mating needs a tight latch to keep out moisture and keep the electricity flowing even when the connector is moving.

For some sensor systems, the right direction is important. The position of the mounting changes how condensation drains and how much heat is exposed. By following the manufacturer's fitting instructions, you can avoid failures that happen too soon because of bad placement. After installation, clearing the diagnostic codes and running a test drive cycle let the ECU learn again about the sensor features and make sure everything is working right.

The Future of NOx Sensor Technology and Emission Control Solutions

NOx Sensor technology keeps changing because of stricter rules and the move toward digitalisation in all areas of transportation. Knowing about new trends helps people who work in procurement make choices that protect the investments they have made in tools.

Technological Advancements on the Horizon

New sensors are made with better materials that are less likely to get poisoned by sulfur and lead chemicals than the ones we have now. Qintai's improved poisoning resistance is a step toward sensors that stay accurate even when they are exposed to contaminated fuels, which are popular in some foreign markets. The goal of miniaturization is to make sensor packages smaller while keeping or even better measurement ranges and accuracy standards.

Another new area of growth is wireless communication. Sensors that can communicate via Bluetooth or cellular networks allow for distant tracking and forecast repair analytics. Fleet managers could keep an eye on the health of all sensors across the whole business and plan replacements ahead of time instead of waiting for problems to happen. This feature fits with a larger trend of integrating telematics that is changing how commercial car control is done.

Regulatory Landscape Evolution

The California Air Resources Board (CARB) is still pushing emission limits toward levels that are very close to zero, and other places are doing the same. In the future, rules might call for even tighter control of NOx, which could mean requiring additional sensor systems or better diagnosis on board. The Euro VII standards being worked on by the European Union could affect global requirements in the same way that the previous Euro standards affected car pollution requirements around the world.

These changes should be planned for in procurement plans. Choosing sensors with measurement ranges that go beyond what is required by current regulations gives you options for when you need to comply with new rules in the future. Partnering with makers that spend in research and development all the time—Qintai has 58 invention patents, which show that it is always coming up with new ideas—ensures access to next-generation solutions as needs change.

Preparing for Connected Emission Control

The Internet of Things (IoT) could change tracking emissions from taking separate readings to using unified data systems. Regulatory bodies could get real-time data on emissions, which would get rid of the need for regular inspections while still making sure that rules are always followed. Because of this, sensors need to be able to support a wide range of transmission protocols. Qintai sensors can handle more than 300 protocols, which makes them flexible for a wide range of system designs.

There are concerns about data protection and privacy that come with this connection. Manufacturers must take safety steps to keep monitor data safe from being changed or accessed by people who aren't supposed to. When choosing devices for connected applications, buyers should look at how well the provider can handle private communication and data quality checks.

​

Conclusion

NOx Sensor technology for measuring nitrogen gas is now needed to make sure that diesel engines follow the rules for emissions and protect the environment. Technical and purchasing workers can make better choices when they know how sensors measure emissions through electrochemical processes, strategic placement, and ECU integration. When choosing the right sensors, you have to think about adaptability, customisation needs, and the supplier's abilities, as well as performance, cost, and legal requirements. Proper care increases the life of sensors and keeps them accurate, but for contaminated units, replacing is still better than cleaning. As rules get stricter and technology moves toward connected systems, fleets and OEMs can stay in compliance and gain a competitive edge in the changing world of emission control by working with new manufacturers.

FAQ

Q1: How Often Should NOx Sensors Be Replaced?

A: NOx Sensors replacement times rely on how hard the application is and how good the sensor is. Heavy-duty highway uses usually get between 150,000 and 200,000 miles out of expensive sensors that are rated to work for 6,000 hours. If the service conditions are bad, like a lot of stalling, stop-and-go driving, or dirty places, the service life is cut to 100,000 miles or less. Instead of depending only on travel intervals, look at diagnostic data to see if performance is getting worse. No matter how many miles have been put on them, sensors that show slow response times, accuracy drift, or long periods of darkness need to be replaced.

Q2: Can NOx Sensors Be Cleaned Instead of Replaced?

A: Cleaning nitrogen oxide monitors doesn't work because they are contaminated on the inside, which can't be fixed by cleaning the outside. Deposits build up inside locked ceramic rooms, which changes the accuracy of measurements forever. If you try to clean sensors, you might damage sensitive parts or break the waterproof seal. When sensors show signs of contamination, replacement is the only way to get them working properly again. Fix the problems that cause new sensors to fail too soon, like bad fuel, too much oil use, or DEF crystallisation.

Q3: How Do I Verify Sensor Compatibility with My Equipment?

A: Make sure they are compatible by matching the specs across a number of different factors. The mounting bolt size (usually M18x1.5 or M20x1.5), wire length, and connector type are some of the physical measurements. The electrical specs must match the needs of the ECU in terms of source voltage range, transmission protocol, and signal output characteristics. The measurement values should include the amounts of emissions that are normal for your engine type. Reliable providers offer thorough compatibility guides and expert support to help customers make the right choice for their needs.

Partner with a Trusted NOx Sensor Manufacturer

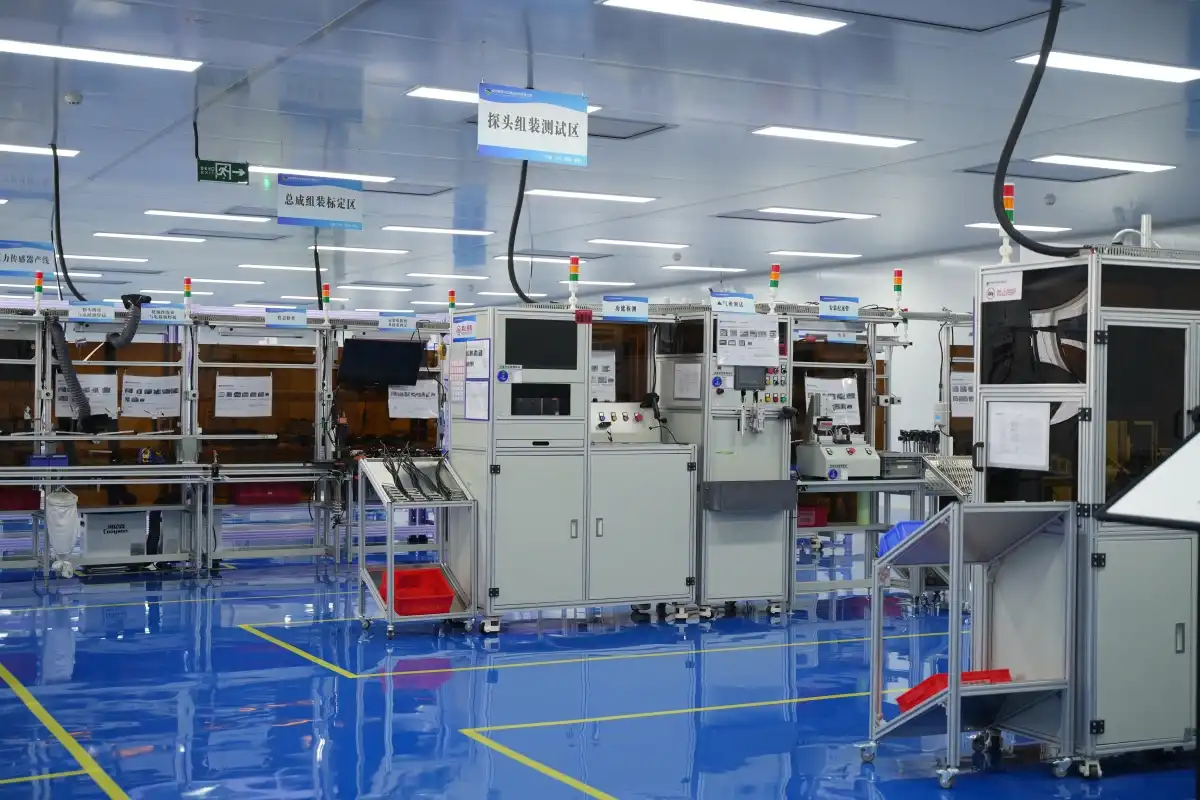

Expertise and solid manufacturing skills are needed to choose the right NOx Sensor solution. Qintai Automotive Emission Technology Co., Ltd. has been in business for more than 20 years and has a lot of certifications, such as IATF 16949, ISO 9001, and foreign environmental standards. Our sensors provide accurate measurements that meet the tightest compliance standards. They also come with flexible wire lengths, connectors, and communication methods that make integration easy.

As the main OEM provider to China's biggest diesel engine makers, we know what it takes to make a lot of engines and how important it is to keep the quality high. Our sensors have reaction times of less than 1,400ms, a service life of more than 6,000 hours, and better resistance to lead and sulphide poisoning. These performance benefits lower your total cost of ownership by reducing the number of repairs you need to make and the length of time between which they can be used.

Qintai offers customised nitrogen oxide sensor solutions and full engineering support, whether you're an aftertreatment system integrator who needs fast delivery and technical support or a fleet manager who wants cost-effective aftermarket solutions that are guaranteed to be in stock. Email our expert team at info@qt-sensor.com to talk about the needs of your particular application. We have low prices for buying in bulk for OEM customers and trade partners all over the world, and our operations are very good, covering over 60 countries.
