How to Troubleshoot Common Temperature Transmitter Problems?

When your production line suddenly displays erratic readings or loses critical data from a temperature transmitter, the cost extends beyond just equipment downtime. We've seen countless industrial operations struggle with signal loss, calibration drift, and unexpected measurement failures that impact emission compliance and process control. A temperature transmitter converts sensor signals—from thermocouples or RTDs—into standardized outputs like 4-20 mA, enabling precise monitoring in diesel engine aftertreatment systems, SCR reactors, and DPF regeneration cycles. Understanding how to quickly identify and resolve these common issues can save your operation thousands in lost productivity while maintaining regulatory compliance.

Understanding Common Temperature Transmitter Problems

Industrial temperature measurement devices face recurring challenges that directly affect system reliability and data accuracy. When procurement managers and technical engineers see these trends, they can make better decisions about when to do repairs and what tools to buy.

Signal Loss and Intermittent Output Issues

One of the most annoying problems we still see in aftertreatment systems is signal loss. If a temperature transmitter stops sending its 4-20 mA output, control systems lose visibility into critical temperature zones within SCR catalyst beds or particulate filters. Most of the time, this is caused by broken wire connections, corroded terminals, or problems with the power supply. Readings that come and go are usually a sign of loose terminal connections or broken cable insulation that lets water and electrical noise get to the wires.

Erratic Readings and Measurement Drift

Temperature data that suddenly change or slowly move away from their true values pose major compliance issues, especially in diesel engine uses that need to be careful about emissions. Measurement drift happens when accuracy decreases over time because of things like parts wearing out, stress from thermal cycling, or chemical exposure in exhaust environments. A lot of the time, erratic behavior means that close electronics are causing electromagnetic interference, there are problems with the ground loop, or the sensor is getting old and the RTD or thermocouple element starts to break.

Installation-Related Faults and Environmental Interference

A big part of the early transmitter problems we've seen in a variety of workplace settings are caused by poor installation practices. Incorrect wiring polarity, poor grounding, or placement in high-vibration areas all hurt the performance of a device from the start. Extreme temperature changes, corrosive exhaust gases, and water getting in can all speed up the breakdown of parts in harsh diesel engine rooms and construction machinery sites where protective shelters may not be enough.

Analyzing Root Causes of Temperature Transmitter Failures

Finding out why failures happen lets industrial teams use preventive measures instead of always fixing problems as they happen. Root cause analysis lowers the total cost of ownership of a system and makes it more available.

Electrical Wiring Problems and Connection Faults

Problems with the wiring show up in different ways along the signal chain. When screw terminals are loose, they make connections with a lot of resistance. This makes the millivolt readings from thermocouples or the resistance measurements from RTD sensors not work right. We've found that many field failures are caused by choosing the wrong wire gauge, which causes too much voltage drop over long cable runs. Electrical noise from ignition systems, alternators, and VFD drives can couple with low-level sensor signals when shielding isn't working right.

This causes readings to change wildly even though temperatures stay the same. Signal integrity depends on how well it is grounded. When there are multiple ground points or floating grounds, current loops form that make measurement circuits noisier. When you use twisted-pair cables with the right shield ending at only one end, you can avoid ground loops and keep noise at bay. Moving cables away from power lines and high-frequency switching equipment makes them even less likely to pick up interference.

Environmental Stresses and Harsh Operating Conditions

In diesel engine rooms, temperature transmitters are exposed to conditions that are much worse than those found in most industrial settings. At cold starts, the temperature outside can drop to -40°F, but it can rise to 185°F near the turbochargers and exhaust manifolds. Over time, vibration from running the engine wears down solder joints and loosens connections. Exhaust gases contain corrosive compounds that attack housing materials and get through weak seals. These compounds include sulfur compounds and urea breakdown products in SCR systems.

When gaskets or wire holes are damaged, moisture can get in and cause problems that are hard to spot. When water condensation forms inside electronics, it makes ways for leaks to happen, damages the circuits, and cuts off signal lines. When salt spray and dust from mining operations and coastal installations come together, they make for aggressive corrosion conditions that speed up the failure rate. Many environmental problems can be avoided by choosing temperature transmitters with the right IP ratings (IP67 or higher for exposed areas) and installing the cables correctly in the glands.

Calibration Errors and Configuration Mistakes

Modern smart temperature transmitters have a lot of setting options, but this makes them more likely to make mistakes during setup. When you configure a sensor for Pt100 when you actually need Pt1000 or set the wrong thermocouple type, you get readings that look right but are actually full of systematic errors. Mismatched temperature ranges lower accuracy and resolution when the set range doesn't match the real application range.

Over time, calibration drift builds up as electronic parts age and reference elements change how they work. Exposure to high temperatures speeds up this breakdown, especially in cases where temperature transmitters are fixed directly on hot surfaces without enough thermal barriers. We suggest setting calibration intervals based on how important the data is and how the system is being used: once a year for emissions compliance purposes and every two years for less demanding generator set monitoring. Keeping calibration records that can be tracked helps with quality checks and government reviews.

Step-by-Step Troubleshooting Principles and Procedures

Systematic diagnostic methods cut down on downtime and keep parts from having to be replaced when they don't need to be. These steps work just as well for setups that are head-mounted, DIN rail-mounted, or field-mounted.

Initial Symptom Identification and Documentation

First, be very clear about what kind of erratic behavior you're seeing. Write down the exact symptoms: Does the reading show no output, a fixed number, or measures that change? Write down when the problem started and if the system changed because of things like maintenance, weather, or changes to the way things are done. Check other instruments to see if the problem only affects one temperature transmitter or if it affects more than one.

This helps tell the difference between localized component failures and broader issues like power supply or controller faults. Compare the current readings to the trends in the data from the past. Quick changes can mean serious problems, like broken wires or damaged sensors. Slow drift, on the other hand, can mean that the calibration is getting worse or the sensors are getting old. Recent exposure to extreme temperatures, chemical spills, or direct effects in the operating area can help with diagnosis.

Wiring Inspection and Electrical Verification

While the power is off, look at all of the wiring connections that go from the sensor to the temperature transmitter and then to the receiving instrument. Check for signs of overheating, corrosion on the contacts, broken wiring, and terminal screws that aren't tight enough. Check that the wire gauges are the right size according to the manufacturer and that the wiring is routed correctly so that it stays away from sources of interference. Check the source voltage at the transmitter terminals with a multimeter while the device is working. For two-wire 4-20 mA devices, this is usually 24 VDC. Check the loop resistance to make sure it stays within acceptable limits. If the wire is too small or the connections aren't good, the resistance will be too high, which will cause voltage drops that can affect accuracy or stop the operation completely.

To find out what the predicted temperature is for an RTD sensor, measure the resistance directly at the sensor part and compare it to a table of values. To avoid loading errors, thermocouple circuits need millivolt readings from high-impedance meters. To avoid ground loops, make sure that shield continuity is checked and that cable shields only connect to ground at one point. If you think there might be interference, use an oscilloscope to find electrical noise that is riding on data lines. Noise with a range greater than 50 millivolts peak-to-peak usually makes measurements unstable.

Installation Verification and Environmental Assessment

Make sure that the place where the temperature transmitter will be mounted protects it well from mechanical stress, water, and changes in temperature. Check that the grades on the enclosure fit the location they will be used in. For example, outdoor installations need weatherproof housings, and areas that could explode need the right certifications. Make sure that the direction of the mounting fits what the maker says it should be, as some designs need to be in a certain place to work right.

Check the installation of the sensor to make sure it has the right depth of immersion, thermal contact, and response time. When sensors aren't immersed enough, they read temperatures that are somewhere between the process and the surrounding temperature. If thermowells are used, make sure they are still filled with thermal compound to make sure heat moves well. Check for damage like corrosion, coating growth, or mechanical issues that make the temperature response worse.

Calibration Verification and Adjustment Procedures

Apply known temperature references and compare the transmitter output to the predicted numbers to make sure it works. To check the quality of a temperature transmitter without taking it out of service, portable calibrators can get RTD resistance values or thermocouple millivolt readings. Check the recorded measured outputs against the device's specs. For industrial-grade units, this is usually within 0.5% of the span. When it's time to make a calibration adjustment, be sure to carefully follow the manufacturer's instructions.

Smart temperature transmitters that use HART or digital protocols can be calibrated using setup tools in software, while analog devices may need to have their potentiometers adjusted physically. Before making changes, you should always write down the first readings. Two-point calibration at low and high ranges is more accurate over the whole range than single-point changes. Instead of just using lab tests to check performance after testing, make sure it works in real-world situations as well. Changing temperatures, vibrations, and electromagnetic fields can show problems that weren't obvious during lab calibration.

Best Practices for Preventing Temperature Transmitter Issues

Industrial operations get a better return on their investment when they use proactive strategies to cut down on unplanned downtime and extend the service life of equipment.

Installation Guidelines from Leading Manufacturers

The basis for effective long-term function is set by proper installation. Following these guidelines greatly lowers failures early on and helps maintain accurate measurements. Power conductors and signal cables should be routed separately, with at least 12 inches of space between them to prevent electromagnetic coupling. If you have to cross, use perpendicular paths instead of straight runs. Place the temperature transmitter in places with stable temperatures that are out of direct sunlight and away from heat sources. Electronics are subjected to thermal stress that speeds up aging when they are mounted directly on hot surfaces or in tight areas without air flow.

Make sure that the wires that go into temperature transmitter housings have enough strain relief so that mechanical stress doesn't get transferred to the internal connections. Use little thread sealant on conduit fittings to keep the IP ratings without getting electronics dirty. Make sure that all of the covers, seals, and wire glands fit correctly to keep water out. Select the type of temperature transmitter that fits the needs of the application.

Head-mounted units have less wiring and are easier to install, but the electronics are more likely to be damaged by rough environments. Installing DIN rail devices is easier because they can be put in secure control panels, but the cables have to be longer, which means there is a chance of power drop and noise. Field-mounted temperature transmitters with tough cases work well in difficult conditions but cost more.

Routine Maintenance and Predictive Monitoring Strategies

Scheduled maintenance finds problems as they start to form before they become major problems. Setting up a preventive program based on how critical something is and how the system is operating best uses its resources in the best way. Visual inspections should be done every three months to look for corrosion, physical damage, water buildup, and loose connections. The accuracy of measurements stays within the limits by being checked for calibration once a year. To make sure they are following the rules, critical emissions monitoring points may need to be checked more often.

Smart temperature transmitters that can do diagnostics can let you know early on when problems are starting to happen. Keep an eye on diagnostic factors such as sensor drift, changes in setup, and signs of external stress. By plotting these metrics over time, you can see patterns of degradation that let you schedule repairs for planned maintenance windows instead of unplanned outages.

Keep careful records of all the calibration results, changes to the configuration, and maintenance tasks you do. This paperwork backs up failure analyses, points out areas with ongoing issues, and shows that proper care was taken during regulatory audits. Digital asset management systems make it easier to keep records and offer data tools for keeping an eye on the success of the whole fleet.

Selecting Reliable Transmitter Technology and Trusted Suppliers

The choices you make about what equipment to buy have long-lasting effects on system reliability and operational costs. It is often easier to see which temperature transmitters are better value when you look at their total cost of ownership instead of their initial purchase price. Smart temperature transmitters that offer digital communication methods and self-diagnostics should be compared to traditional analog transmitters. Even though they cost more at first, digital devices offer more setup options, remote diagnosis, and proactive upkeep.

Most of the time, the investment pays for itself through fewer service calls and longer calibration intervals. Look at the qualifications of the provider in addition to the product specs. Companies that are certified by ISO9001 and IATF16949 have quality control systems that make sure their goods are always reliable. Safety in dangerous places is guaranteed by standards like ATEX, IECEx, and UL grades. Your maintenance team will have less work to do if you buy from suppliers who offer full technical support, help with application engineering, and quick after-sales service.

Think about how stable the supply chain is and how easy it is to get inventory locally, especially for repair and aftermarket uses. Suppliers who keep stock in your area make fixes go more quickly and with less downtime. Your investment will be safe as systems change if you have long-term partnerships with manufacturers that promise backward compatibility.

When and How to Engage Professional Support or Supplier Assistance

Recognizing when professional support is needed keeps small problems from getting worse and leading to major system breakdowns, and makes sure that fixes meet quality standards.

Understanding Warranty Coverage and Service Response Times

When buying a warranty, read the terms carefully to make sure you know what it covers and for how long. Most industrial temperature transmitters come with warranties that last between 12 and 36 months. These warranties cover flaws in the way the temperature transmitter was made, but not damage caused by poor use, installation, or abuse in the environment. Some companies offer longer warranties or service plans that include regular repair and calibration. Service response times vary a lot from one provider to the next. Premium support agreements may offer technical help 24 hours a day and faster shipping of parts, while basic service gives answers the next business day.

Consider how important your operations are when choosing the amount of help you need. For example, emissions-critical diesel engine systems need more coverage to lower the risk of not meeting compliance standards, while non-critical monitoring may be able to handle longer response times. Keep detailed records of all insurance claims, including what went wrong, how it was used, and when it was last serviced. Suppliers need this information to quickly handle claims and may be able to find problems with the application that are causing failures to happen too soon. When you work together with manufacturers, you can often find ways to improve how things are installed or how they protect the environment.

Strategic Procurement from Reputable Global Suppliers

Building ties with manufacturers who care about quality provides long-term value that goes beyond single transactions. Suppliers whose products are consistently reliable, whose technical knowledge is high, and whose customer service is quick to respond become strategic partners in keeping operational excellence. Check out a potential supplier's track record in your industry before you decide to work with them. Manufacturers that work with major diesel engine OEMs like Weichai Power, Yuchai Power, and Quanchai Power have a track record of success in tough aftertreatment applications.

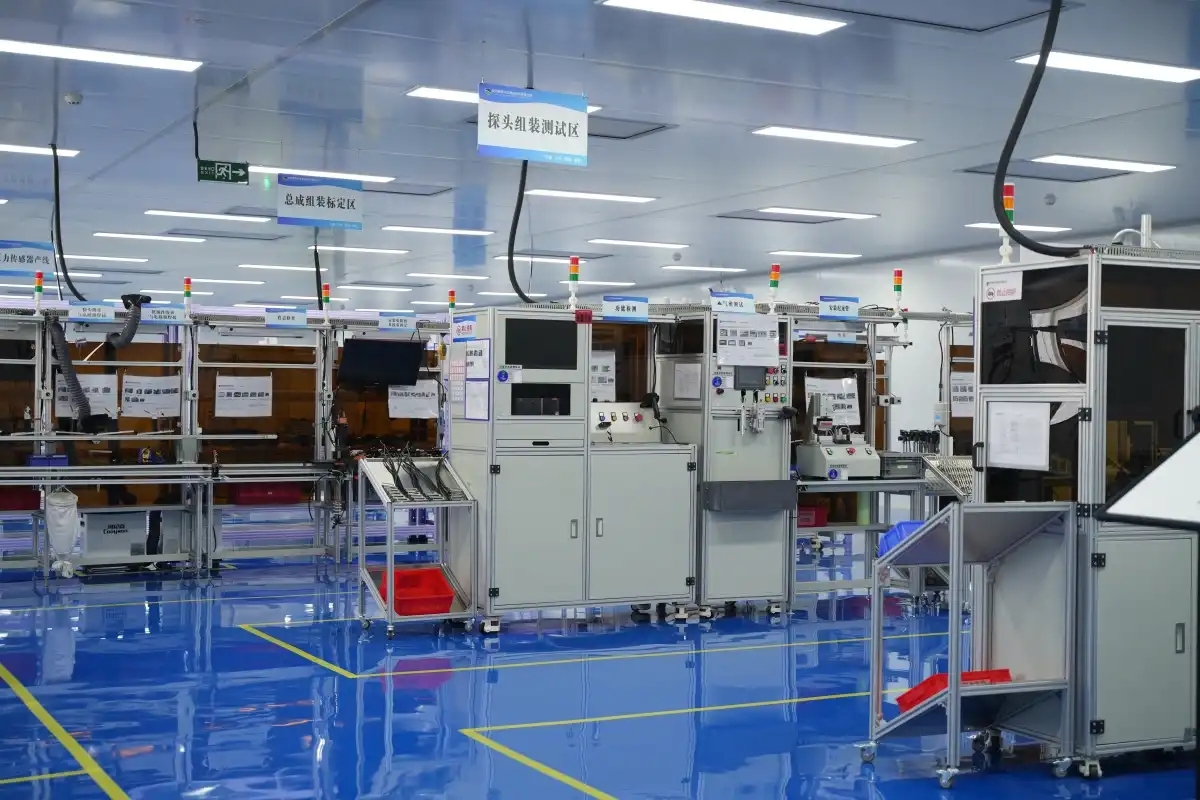

Their goods are tested very carefully in exhaust areas that are very hot, have gases that eat away at metal, and shake very violently. These conditions put a lot of stress on temperature transmitters beyond what is normally found in industrial settings. When thinking about high-volume needs, manufacturing skills are important. Suppliers with specialized production lines, automatic testing tools, and statistical process control can make sure that quality is always the same on a large scale.

This dependability is very important when putting temperature transmitters into diesel engines or aftertreatment systems that are mass-produced, because failures in the field cost a lot in warranty costs. Customization lets you get the best results for certain uses. You can get the best performance-to-cost ratio from suppliers who offer a range of output settings, mounting choices, and environmental protection options. Help from engineers during the specification phase makes sure that the right device is chosen and that the right application is designed.

Conclusion

Reliability of temperature measurements has a direct effect on emissions compliance, process efficiency, and running costs in industrial and diesel engine systems. Knowing about typical temperature transmitter issues like signal loss, measurement drift, and installation problems helps find the problem quickly and get things back to normal. Systematic approaches to fixing cut down on downtime, and smart relationships with suppliers and good preventive maintenance cut down on failure rates and lifetime costs.

Successful industrial operations weigh the initial cost of purchasing equipment against the total cost of ownership. They do this by choosing high-quality temperature transmitters from well-known manufacturers that have a history of reliability and full support. As rules on emissions keep getting stricter and practical needs rise, working together with highly skilled suppliers becomes more important for staying ahead of the competition.

FAQ

How often should temperature transmitters be calibrated to maintain accuracy?

How often you calibrate depends on how important the application is and how it is being used. Measurements of emissions that help with China VI or Euro VI compliance usually need to be checked every year to keep government permission. For less important tasks, like checking on a generator set, the calibration intervals can be pushed out to 24 months without losing any accuracy. Harsh settings with high vibrations, harsh temperatures, or toxic atmospheres need to be validated more often, maybe every six months, because these conditions speed up calibration drift. Smart temperature transmitters that can diagnose themselves can make gaps longer by alerting you early when calibration falls below acceptable levels.

What are the changes between fixing problems with smart transmitters and old-fashioned analog transmitters?

Smart temperature transmitters that use HART, Modbus, or their own digital protocols can give you a lot of diagnostic information that makes fixing problems easier. Technicians can check on the state of devices, look over setup settings, and see past trend data without having to physically go to field-mounted units. These devices find certain types of faults, such as sensor failures, configuration mistakes, or signs of environmental stress. To find out what's wrong with traditional analog transmitters, you have to test them by hand using multimeters and calibrators. However, analog devices are better at handling mistakes in setup and security holes. Systematic troubleshooting methods that cover wiring, installation, and calibration testing are helpful for both kinds.

How can I prevent environmental damage to temperature transmitters in diesel engine applications?

Keeping temperature transmitters safe in places with diesel exhaust requires more than one approach. Choose temperature transmitters that have the right IP67 or IP68 ratings to protect them from dust and water. Make sure that all of the cable entries have the right glands with strain relief so that the seal stays intact even if the system shakes. Place temperature transmitters away from direct air flow, which is where temperatures and levels of corrosive gases are highest. If you need to put gadgets in a safe place, you might want to think about remote mounting with long sensor leads. Cover mounting parts with coats that won't rust, and check the seals often to see if they're wearing down before water gets in.

Partner with Qintai for Reliable Temperature Transmitter Solutions

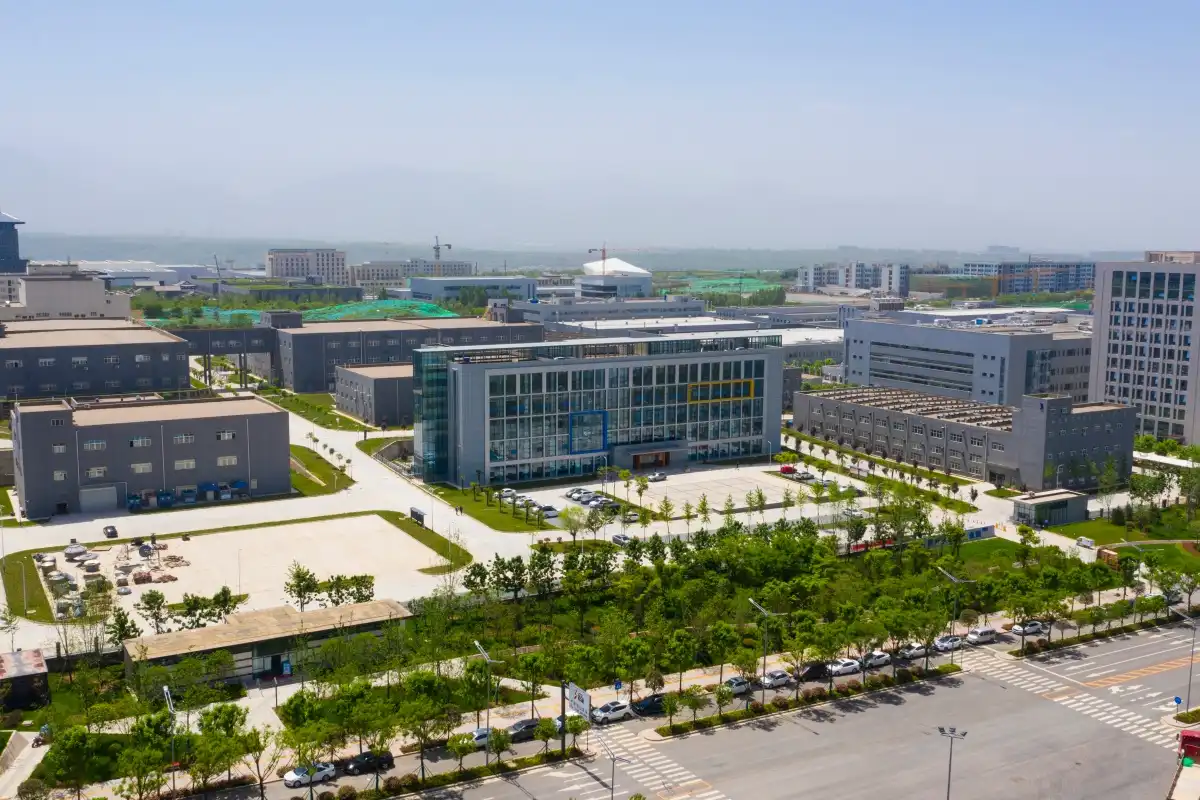

At Xi'an Qintai Automotive Emission Technology Co. Ltd., we understand the critical role precise temperature measurement plays in diesel engine aftertreatment performance and emissions compliance. Since 2001, we've specialized in developing sensors and SCR system components that withstand the harshest exhaust environments while delivering the accuracy and stability OEMs demand. Our temperature transmitter solutions undergo rigorous validation in applications serving Weichai Power, Yuchai Power, and Quanchai Power—China's leading diesel engine manufacturers—ensuring proven reliability in commercial vehicles, construction equipment, agricultural machinery, and generator sets.

We invite purchasing managers, R&D engineers, and supply chain professionals to explore how our ISO9001, IATF16949, and industry-certified products can improve your system reliability while reducing total cost of ownership. Our technical team provides comprehensive application support from initial specification through mass production, with customization capabilities tailored to your specific requirements. As a leading temperature transmitter manufacturer with global reach across more than 60 countries, we deliver the quality, capacity, and after-sales support your operations demand. Contact our team at info@qt-sensor.com to discuss your application challenges and request technical specifications or evaluation samples.
