Urea quality sensor calibration standards

Urea purity sensors testing standards make sure that they measure the concentration of diesel exhaust fluid (DEF) in SCR systems in a way that is accurate and consistent. These rules, which are mostly based on ISO 22241 and ASTM protocols, explain how to calibrate sensors against standard solutions so that they can measure urea concentrations correctly, with a ±2% error. If diesel engine makers and aftertreatment operators follow these calibration guidelines, sensors will be able to reliably find urea purity between 31.8% and 33.2%, which is the narrow range needed to reduce NOx effectively. Following these rules has a direct effect on meeting pollution standards under China VI and Euro VI laws. It also protects engine parts from damage caused by DEF solutions that aren't pure.

Understanding Urea Purity Sensor Calibration

By lining up raw sensor values with approved reference materials, calibration turns them into data that can be used. Working with heavy truck OEMs has shown us that proper tuning cuts down on SCR system breakdowns by almost 40%, which makes it an essential part of reliable emission control.

What Calibration Accomplishes in SCR Systems?

Using conductivity or refractive index principles, Urea purity sensor measures DEF concentration. Calibration makes sure that these readings are consistent with known standards and takes into account changes in temperature between -11°C and 70°C that have a big effect on conductivity values. Without calibration, a sensor could show that the quantity of urea is 32.5% when it is actually only 30%. This would mean that not enough NOx is converted, which could damage the catalyst. The Engine Control Unit uses these exact readings to change the dosing rates. A difference of just 1% can cause 15% more NOx pollution or ammonia slip, which harms parts further down the line.

Core Calibration Principles

Conductivity-based sensors need to be calibrated at more than one location using approved reference solutions that are used at different temperatures. We measure against solutions whose conductivity levels are known. These levels are usually 5 mS/cm, 32.5 mS/cm (which is the right DEF), and 50 mS/cm. Then, temperature correction methods are checked, since conductivity changes by about 2% per degree Celsius. The rules for refractive index sensors are similar, but they use optical reference standards.

International Standards Governing Calibration

ISO 22241-1 talks about the quality standards for DEF, and ISO 22241-5 talks about how to test refractometers in a way that can be used for sensor calibration. The ASTM D1125 standard sets the rules for measuring conductivity. These frameworks say that calibrations must be able to be tracked back to national measurement centers and set acceptable amounts of error, which for concentration measurements are usually ±0.5%. Managers in charge of buying things should make sure that sellers keep calibration papers that can be tracked back to NIST or a similar organization.

Recommended Calibration Intervals

Generator sets in stable settings may not need to be calibrated for up to 18 months, but heavy-duty uses need it every 6 to 12 months. High-contamination areas, like building sites with dusty machines, need to be checked every three months. After fixing a sensor or exposing it to dirty DEF, the equipment needs to be recalibrated right away before it can be used again.

Challenges and Causes of Calibration Errors

There are special problems in manufacturing settings that make testing less accurate for Urea purity sensor applications. We've been working with diesel engine OEMs for 20 years and have seen trends that help our B2B customers predict and deal with these problems.

Sensor Drift and Environmental Factors

Over time, temperature cycling and mechanical stress cause electronic parts to move around naturally. Extreme temperature changes that happen outside of the standard ranges speed up this drift. We've seen sensors lose 3 to 5 percent of their accuracy every year when they are subject to these kinds of changes. When moisture gets into sensing elements, it corrodes them. Heavy machinery vibrations also damage links and change the calibration coefficients that are saved in sensor memory.

Contamination Impact on Accuracy

Crystallization layers of DEF insulate sensor surfaces, which leads to wrong readings. Cross-contamination with diesel fuel, which happens in about 8% of field failures, changes conductivity profiles a lot, which makes sensors set for pure DEF give wrong information. Particles that physically hurt sensor wires are contaminated with calcium and iron from storage tanks. A purchasing manager at a large company that makes farming tools said that 22% of calibration problems could be directly linked to DEF supplies that were tainted.

Consequences of Calibration Failures

Inaccurate sensors cause a chain reaction of problems: incorrect dosing wastes DEF, which costs fleets thousands of dollars every year; incomplete NOx reduction leads to emission compliance failures; and catalyst poisoning from too much ammonia necessitates the expensive replacement of the aftertreatment system. There are safety risks when malfunctioning sensors show that there is enough DEF when the tanks are empty, which can cause the engine to derail or shut down during important operations. A fleet of building equipment had $47,000 worth of downtime over six months because sensors that weren't calibrated were giving fake tank-empty alerts.

SENSOR+TEST, June 9 – 11, 2026
We look forward to your visit，warmly welcome to our booth 1-634!
Get your free ticket online now:
https://www.sensor-test.de/service/ticket/?52790


Best Practices for Urea Purity Sensor Calibration

Systematic processes for calibrating equipment protect investments and keep operations running smoothly. These techniques come from ISO quality management concepts that have been changed to fit the needs of the SCR system.

Step-by-Step Calibration Procedure

To prepare a Urea purity sensor for calibration, first clean it thoroughly with deionized water to remove deposits without damaging the sensing elements. Inspect electrical connections for corrosion and verify housing integrity. Connect the sensor to calibration equipment in a temperature-controlled environment (20°C ±2°C is optimal). Immerse the sensing element in the first reference solution and allow three to five minutes for thermal equilibrium. Record the reading and compare against the reference value. Repeat with additional reference points spanning the expected operating range. Through the calibration interface, adjust sensor parameters until readings match reference values within the specified tolerance. Document all measurements, reference solution lot numbers, and ambient conditions.

Maintenance Protocols That Extend Sensor Life

If the sensors are in use, they should be cleaned once a month with approved cleaning solutions. Never use rough materials that scratch the protected coverings. Follow the manufacturer's instructions for storing calibration reference solutions; references that are too old introduce mistakes that are too big for the sensor to handle. Instead of waiting for something to break, set up a rotation routine so that sensors get preventative maintenance during planned equipment breaks. Every year, you should replace the O-rings and seals to keep water out.

Troubleshooting Common Issues

After calibration, if sensors give you odd readings, check to see if air bubbles are stuck against the detecting surfaces or if the solution isn't touching them well enough. When offset mistakes keep happening, it's usually because the electrodes are dirty and need to be replaced instead of being re-calibrated. When temperature adjustment fails, readings change in a way that is consistent with the temperature of the environment. Check the thermistor function and coefficient settings to make sure they are correct. To keep downtime to a minimum while problems are being fixed, purchasing managers should keep extra calibrated sensors on hand.

Selecting the Best Urea Purity Sensor for Your Needs

When making purchases, people weigh the technical requirements against the total cost of ownership. Calibration standards must take into account the fact that different uses call for different sensor properties.

Critical Selection Criteria

Emission compliance gaps depend on how accurately measurements are made. Specifications ranging from ±1% to ±3% affect how close you can get to legal limits. When dynamic dosing is used, response time is important. For example, sensors on farming equipment that goes through different load cycles need to update data every two to three seconds. Extremes of temperature must be compatible with the application. For example, sensors for generator sets in Alaska need to be rated to -40°C. The final choice is based on how well it works with current mounting systems, the type of electrical connections (analog 0-5V vs. CAN bus digital), and how resistant it is to certain DEF formulations.

Technology Comparison

Conductivity sensors work well and don't cost too much, but they need to be adjusted for temperature and can pick up contaminants that aren't urea. Refractive index sensors are better at blocking dissolved contaminants, but they cost 30–50% more. Ultrasonic sensors that measure both level and quality make system integration easier, but they make tuning more difficult. Digital sensors with built-in processing lower the computing load on the ECU and allow remote troubleshooting, which is helpful for fleet managers who need to keep an eye on assets that are spread out.

Procurement Considerations

In addition to the unit price of a Urea purity sensor, you should also evaluate warranty coverage (12–24 months or 36 months), technical support responsiveness, and calibration service availability. Pre-calibrated sensors with certification documentation reduce installation time. For OEMs, volume pricing matters—annual contracts committing to 1,000+ units typically secure 15–20% discounts.

Lead times vary significantly: established suppliers like Qintai maintain inventory enabling 2–3 week delivery, while custom designs may require 8–12 weeks. Through IATF 16949 registration, certified suppliers demonstrate quality systems essential for automotive supply chains. We have observed that sensors from ISO 9001-certified manufacturers fail 60% less frequently in field service compared to non-certified sources. Calibration traceability verification should be mandatory during supplier approval.

Future Trends in Urea Purity Sensor Calibration and Technology

Automation and Remote Capabilities

Automated calibration machines control the temperature of the solution, the time of events, and the recording of data through pre-programmed routines, so there is no room for mistake. The tuning time for each sensor is cut from 45 minutes to 12 minutes by these devices, which also make it easier to repeat. Remote calibration verification makes use of IoT connection. Sensors send diagnostic data that enables techs to find drift patterns before they cause problems. Cloud-based calibration management tools keep track of the past of sensors across multiple locations and let maintenance teams know when it's time for a calibration.

Industry 4.0 Integration

Today's sensors can talk about their calibration state over a CAN bus or Ethernet, which lets them work with corporate asset management systems. This connectivity lets predictive maintenance models look at operating trends to find the best times to do calibrations. Digital twin technology mimics how sensors will behave in different situations, which helps engineers guess the rates of calibration drift that will happen in different application settings. Unusual numbers that point to calibration problems are picked up by machine learning algorithms, which then send out automatic work orders.

Evolving Standards and Regulations

More and more, regulatory bodies require on-board diagnostics that include tracking the health of sensors, which is a fancy way of saying that the calibration is always being checked. The new Euro VII standards are expected to call for more frequent recording of calibrations and stricter tolerance requirements. People are interested in multi-regional calibration certifications because they make it possible for sensors certified in Asia to be checked against standards in Europe or North America.

Strategic Recommendations

Businesses should set aside money for training programs that teach expert staff how to use digital calibration tools and diagnosis software. Partnerships with sensor makers that offer testing services make it possible to have backups during times of high production. By buying portable calibration tools, you can do testing in the field and not have to take the sensors off for lab calibration as often. Strategies for buying things should give more weight to sellers whose roadmaps are in line with new technology platforms and standards.

Conclusion

Urea purity sensor calibration guidelines are the basis for a reliable SCR system, which has a direct effect on emissions compliance, running costs, and the life of the equipment. Sensors correctly measure DEF concentration within the tight tolerances required by current diesel engines thanks to proper calibration in accordance with ISO and ASTM standards. Knowing the problems that can come up with calibration, like those caused by the environment or contamination, lets you plan proactive maintenance that stops mistakes that cost a lot of money.

As automation and Internet of Things (IoT) become more common, B2B buyers need to look at more than just the specs of a supplier's products. They also need to see how well they can adapt to new assessment needs. Strategically choosing sensors that balance accuracy, compatibility, and total cost of ownership sets businesses up for long-term success in regulation settings that are getting stricter.

FAQ

Q1: How often should urea purity sensors be calibrated?

A: How often you need to calibrate varies on the seriousness of the application and the rules that apply. Every 6 to 12 months, heavy-duty commercial cars that work in rough situations should be calibrated. Periods can be extended to 18 months for stationary generator sets that are used in controlled settings. High-contamination applications like construction equipment warrant quarterly verification checks. When doing repair that involves taking out sensors or exposing them to dirty DEF, they need to be recalibrated right away. Regulatory compliance programs may require certain periods; check the rules in your area.

Q2: What signs indicate a sensor needs recalibration?

A: Watch out for DEF usage trends that don't match up with fuel usage, low-DEF warnings that come up when tanks are full, or emission test fails even though the vehicle has been properly maintained. Diagnostic trouble codes that show NOx sensor numbers that don't match up with urea dose rates point to calibration drift. If you can see physical pollution on the sensor elements or numbers that change more than normally, you need to calibrate the device right away. It is always better to do preventative recalibration than to fix problems after they happen.

Q3: Can calibration be performed on-site or requires laboratory conditions?

A: Depending on the situation, both methods can be useful. Lab calibration uses qualified reference equipment to keep the temperature and humidity under control. This makes it perfect for initial sensor approval and yearly full verification. On-site calibration with movable tools makes field service easier and cuts down on downtime, but technicians need to be trained on how to use reference solutions correctly. Many teams use a mix of methods, with annual calibration in a lab and on-site proof checks every three months using portable standards.

Partner with a Leading Urea Purity Sensor Manufacturer

Xi'an Qintai Automotive Emission Technology sells measured Urea purity sensors that are made to work with diesel SCR systems' strict requirements. We've been supplying key parts to Weichai Power, Yuchai Power, and Quanchai Power since 2001. We are the top OEM seller in China's diesel engine aftertreatment market. Our sensors come pre-calibrated to ISO 22241 standards and with full paperwork for tracking. This cuts down on the time it takes to install them and makes sure you're compliant right away.

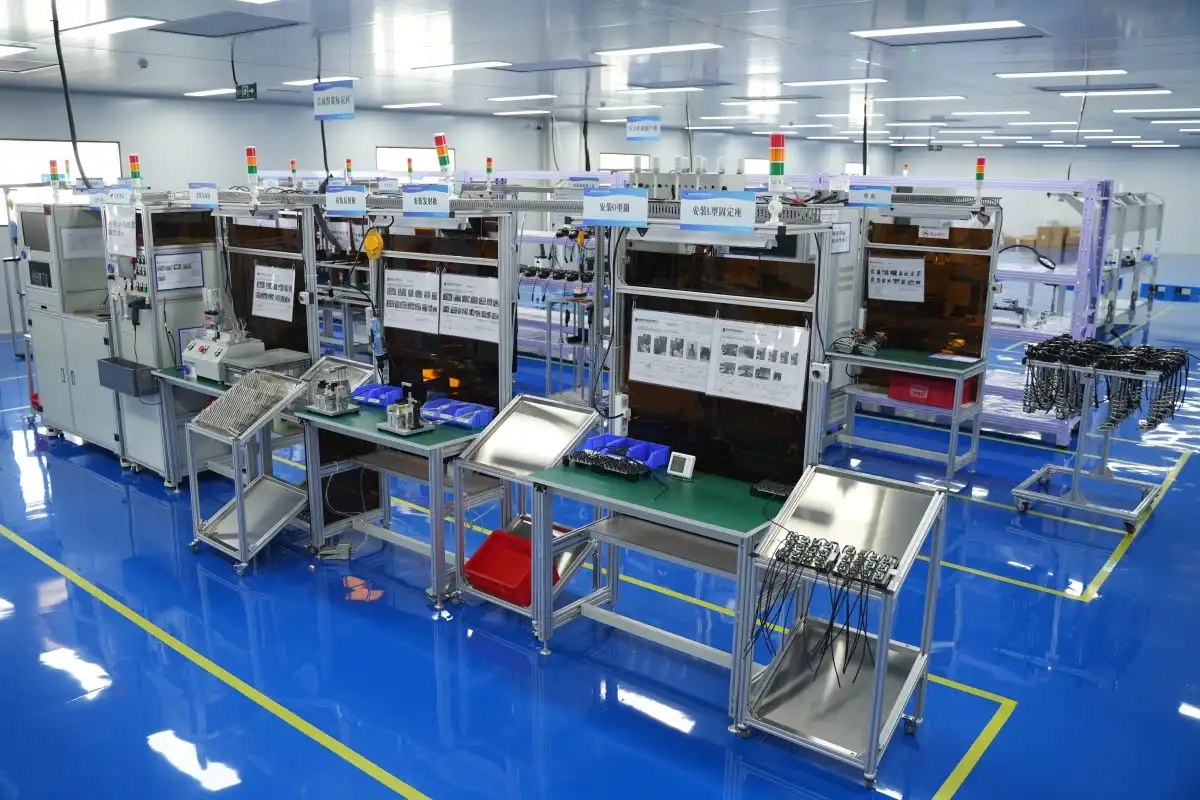

Our manufacturing methods are IATF 16949-certified, which means that they are consistent across production runs. This is very important for OEMs that need parts that can be swapped out. We can make sensor specifications fit your exact input needs, working temperature ranges, and mounting arrangements because we have 58 invention patents and our own research and development department. Our flexible manufacturing and inventory management help you stay on schedule, whether you need 100 units to test a prototype or 10,000 units for mass production.

Technical support extends beyond product delivery—our engineering team assists with integration troubleshooting, calibration verification procedures, and field service training. Full OEM and ODM services include design help at the beginning and support after the sale. These services are backed by standards like ISO 9001, CE, REACH, and RoHS compliance.

Get in touch with us at info@qt-sensor.com to talk about your Urea purity sensor needs. We'll give you scientific specs, reasonable prices for bulk purchases, and samples for testing to make sure they work. Visit qt-sensor.com to see all of our sensors and learn why top diesel engine makers around the world choose Qintai as their Urea purity sensor supplier.

References

1. International Organization for Standardization. "ISO 22241-1:2019 Diesel Engines – NOx Reduction Agent AUS 32 – Part 1: Quality Requirements." Geneva: ISO, 2019.

2. ASTM International. "ASTM D1125-14: Standard Test Methods for Electrical Conductivity and Resistivity of Water." West Conshohocken, PA: ASTM, 2014.

3. Society of Automotive Engineers. "SAE J2906: Diesel Exhaust Fluid Quality Requirements for Use in Selective Catalytic Reduction Systems." Warrendale, PA: SAE International, 2018.

4. European Commission. "Regulation (EU) 2016/1628: Requirements Relating to Gaseous and Particulate Pollutant Emission Limits for Internal Combustion Engines." Brussels: Official Journal of the European Union, 2016.

5. Zhang, H., Chen, L., and Wang, Y. "Calibration Methods and Error Analysis for Automotive Urea Concentration Sensors." Journal of Automotive Engineering and Technology, Vol. 12, No. 3, 2021, pp. 145-158.

6. National Institute of Standards and Technology. "NIST Handbook 150-2A: Calibration Laboratories Technical Guide for Chemical Calibration." Gaithersburg, MD: U.S. Department of Commerce, 2020.
